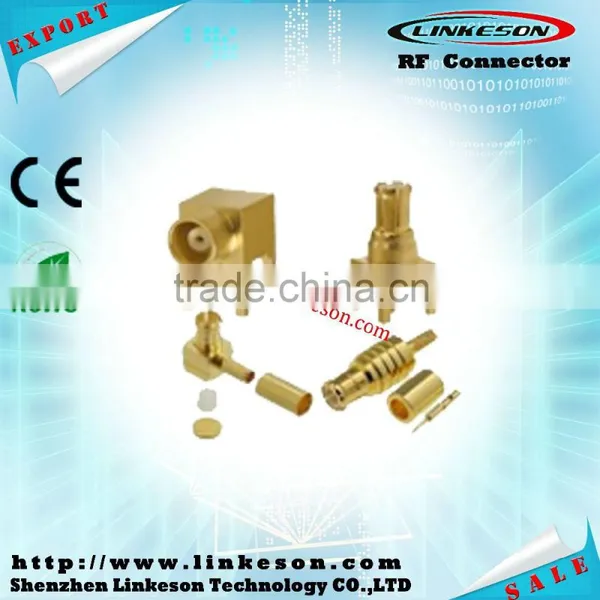

(Competitive Price) MCX Male Right Angle Crimp RG58 LMR195 RG142 RG400 RF Connector
US$ 0.2 - 1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Linkeson, Linkeson
Model Number:
MCX male right angle crimp RG58 LMR195 RG142 RG400 RF connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MMCX Female Straight Crimp RG174 RG316US$ 0.35 - 0.5MOQ: 100 Pieces -
Gold -plated MMCX Male ConnectorUS$ 0.35 - 0.5MOQ: 100 Pieces
-
Right Angle Male Gold Mmcx Connector ShureUS$ 0.35 - 0.5MOQ: 1 Piece
-
MCX Female Coaixal Connector FOR PCB MOUNTUS$ 0.35 - 0.5MOQ: 100 Pieces
-
MMCX Male Right Angle Waterproof Wire ConnectorUS$ 0.35 - 0.5MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Linkeson, Linkeson
Model Number
MCX male right angle crimp RG58 LMR195 RG142 RG400 RF connector
Type
Other, MCX, MCX male right angle crimp RG58 LMR195 RG142 RG400 RF connector
Application
Other, RF,automotive,power,microwave,audio and video,antenna,WIFI, RF,automotive,power,microwave,audio and video,antenna,WIFI
Gender
Other, Male, male
MCX male right angle crimp RG58 LMR195 RG142 RG400 RF connector
Series MCX are sure to fit most applications where space ,weight ,performance and easy to assembly are required in RF circuits of mobile and fixed communication system.there are 50ohm and 75 ohm about the Characteristic impedance.they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and metal plate.
| Key Performance | ||||||
| Temperature range | -65~+155 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω/75Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~6GHz(50Ω) | VSWR | ≤1.20(50Ω) | |||
| 0~1.5GHz(75Ω) | ≤1.35(75Ω) | |||||
| Voltage rating | 335V(r ms) | Insertion loss | 0.1dB at 1GHz | |||
| Contact resistance | Center conductor | ≤5mΩ | Durability | 500 Cycles | ||
| Outer conductor | ≤2.5mΩ | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper ,gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Cooper alloy,nickel or gold plated | |||||
| Crimp ferrules | Beryllium copper ,gold plated | |||||
