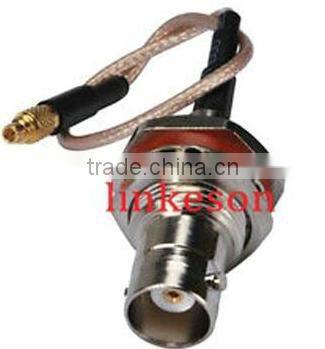

MMCX Male to BNC Female RF Pigtail Cable RG316 for Wifi Radio
US$ 1 - 5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Linkeson
Model Number:
Coaxial Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
(high Qualtiy) MCX Male RA to MCX Female RG316 GPS Antenna Extension Cable RG316 15cm for WifiUS$ 5,000 - 10,000MOQ: 1 Piece -
(hot Sale) Extension Calbe BNC Male Right Angle to SMA Female for RG316 With MX360US$ 5,000 - 10,000MOQ: 1 Piece
-
MCX Male to RP-SMA Female Jack Bulkhead O-ring for Pigtail Cable RG316US$ 1 - 5MOQ: 1 Piece
-
(hot Sale)3G 4G Wireless RG316 BNC Female to TNC Male Bulkhead With O-ringUS$ 5,000 - 10,000MOQ: 1 Piece
-
(hot Sale)BNC Female Bulkhead O-ring to BNC Female Connector for RG316US$ 5,000 - 10,000MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Linkeson
Model Number
Coaxial Cable
Number of Conductors
1
MMCX male to BNC female RF pigtail cable RG316 for wifi radio
Our RF cable assemblies can be purchased with many different connector types and custom lengths depending on your needs and application. And they are used for medical, computer, LAN, RF, automotive, monitoring and communications equipment. If you require a special cable configuration not found here, you can create your own RF cable assembly configuration by writing E-mail or calling to us.
Product Description
Specification:
| Model | RG316/SFF-50-1.5-1 |
| Inspection standard | SJ509731/1-1995(Cable specification in detail) |
| Inspection standard | GB/T17737.1-2000(Generic specification for coaxial cable) |
| conductor material | silver plated copper wire |
| conductor structure | 7/0.18±0.008 |
| insulator material | PTFE |
| insulator OD | 1.52±0.10 |
| outer conductor conductor material | silver plated copper wire |
| outer conductor conductor OD | 2.0±0.10 |
| the wire diameter material | FEP |
| the wire diameter OD | 2.52±0.15 |
| insulation resistance | >=5000 |
| insulating test voltage | 4KV |
| Characteristic impedance | 50±3.5 |
| spark test voltage | 3KV |
| attenuation | 30MHZ(40---2500 MHZ) |
| attenuation | 200MHZ(0.50db/m) |
| attenuation | 3000MHZ(0.50db/m) |
| standing wave | 40---2500 MHZ |
