Hi welcome to Shenzhen Linkeson Technology Co.,LTD
RP-SMA to SMA with RG174 wireless antenna
Our RF cable assemblies can be purchased with many different connector types and custom lengths depending on your needs and application. And they are used for medical, computer, LAN, RF, automotive, monitoring and communications equipment. If you require a special cable configuration not found here, you can create your own RF cable assembly configuration by writing E-mail or calling to us.
specification:
| Model | RG174 |
| Inspection standard | SJ509731/1-1995(Cable specification in detail) |
| Inspection standard | GB/T17737.1-2000(Generic specification for coaxial cable) |
| conductor material | copper wire |
| conductor structure | 7/0.16±0.008 |
| insulator material | PE |
| insulator OD | 1.52±0.10 |
| outer conductor conductor material | copper wire |
| outer conductor conductor OD | 2.0±0.10 |
| the wire diameter material | PVC |
| the wire diameter OD | 2.80±0.2 |
| insulation resistance | >=1000 |
| insulating test voltage | 2KV |
| Characteristic impedance | 50±2 |
| spark test voltage | 2KV |
| attenuation | 100MHZ(0.276db/m) |
| attenuation | 400MHZ(0.558db/m) |
| attenuation | 1000MHZ(0.899db/m) |
| standing wave | 40---2500 MHZ |

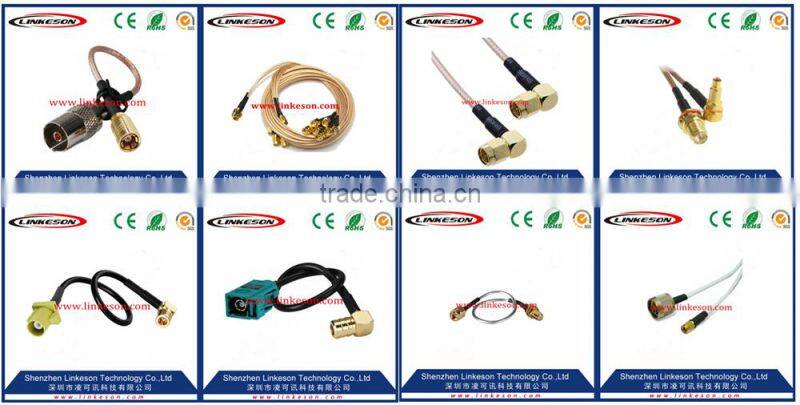

A series of other products recommended for you:
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details , look forward to your order.
Your satisfied is our target!
