Home > Products > RF cable assemblies > MINI UHF Female to SMA Male Connector for RG178 RG316 Cable

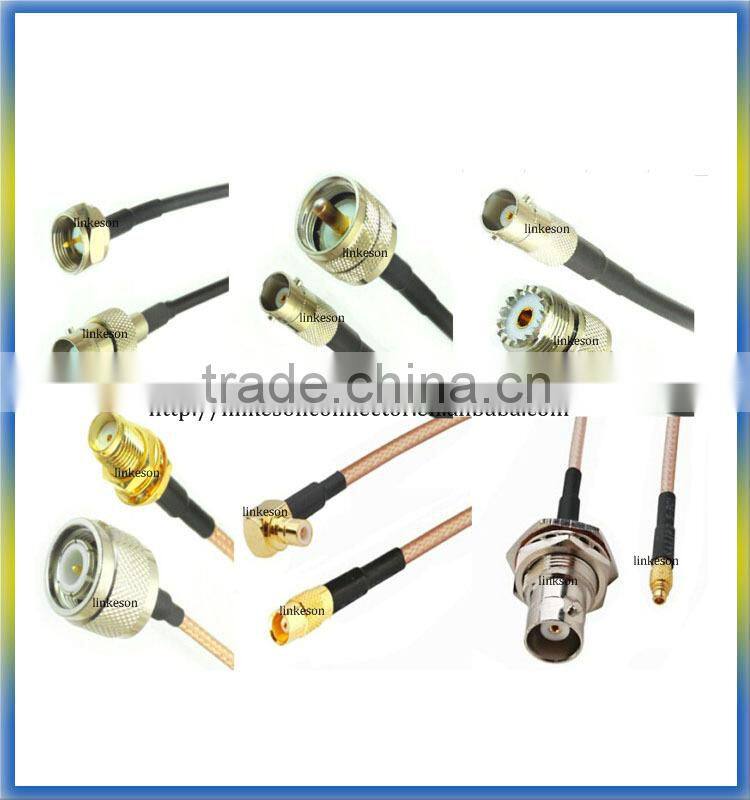

MINI UHF Female to SMA Male Connector for RG178 RG316 Cable
- shanghai or shenzhen
- T/T Money Gram Credit Card
You May Like
-
rf Pigtail MCX Plug to RP-SMA Female Rg174 Coax Cable
-
Manufacture MCX Male to SMA Female Flange for RG316 Coaxial Cable
-
Linkeson MMCX Female to SMA Coaxial for RG316 Pigtail
-
Linkeson RG316 Pigtail MMCX Male to SMA Female Bulkhead
-
Right Angle MMCX Male to U.fl for Rg178 Coaxial Cable
-
MMCX Male to SMA Female rf Coaxial Cable Assembly for Rg179
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Linkeson, linkeson | |
| Model Number | MINI UHF female to SMA male connector for RG178 RG316 cable | Type | Coaxial |
Product Description
Hi welcome to our page
Shenzhen Linkeson Technology Co.,LTD

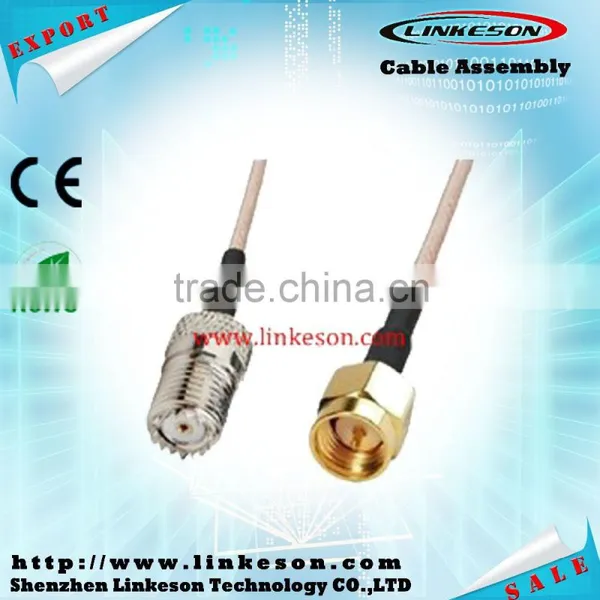

UHF female to SMA male
MINI UHF female to SMA male connector for RG178 RG316 cable
| Key Performance | |
| Temperature range | -40℃ ~ 85℃ |
| Insulation resistance | Insulation resistance |
| Characteristic impedance | 50Ω |
| Working Voltage | 335V max |
| Frequency range | Frequency range |
| Center Contact | ≤ 5 Mω |
| Durability(mating) | 500 Cycles |
| Center Contact | ≤ 5 mΩ |
| Outer Contact | ≤ 2.5 mΩ |
| Voltage Standing Wave Ratio Straight | ≤1.20 |
| Voltage Standing Wave Ratio Right angle | ≤1.25 |
| Material And Plating | |
| Body | Brass , nickel plated |
| Pin contact | Brass , gold or silver plated |
| socket | beryllium,Tin bronze, gold or silver plated |
| Insulators | PTFE |
| crimp ferrule | copper alloy ,nickel plated |
| o-ring sealing | silastic |
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥5000MΩ |
| Characteristic impedance | 50Ω |
| Dielectric Withstanding voltage | 1000V(r ms) |
| Frequency range With flexible cable | 0~12.4GHz |
| Frequency range With semi-rigid/flexible cable | 0~18GHz |
| Contact resistance Center conductor | ≤3mΩ |
| Contact resistance Outer conductor | ≤2mΩ |
| VSWR With flexible cable | ≤1.15+0.02F |
| VSWR With semi-rigid/flexible cable | ≤1.05+0.02F |
| Durability | 500 Cycles |
| Material And Plating | |
| Body | Brass , gold plated or stainless steel passivated |
| Male center contacts | Brass , gold plated |
| Female center contacts | Beryllium copper , gold plated |
| Insulators | PTFE |
| Gaskets | Silicon rubber |
| Crimp ferrules | Copper alloy , gold or nickel plated |
UHF female to SMA male
1.Fedex,UPS,EMS,DHL or By Sea, By Air
2.Sample:3 working days
3.Order: 5 working days
4.Certifications-CE/ROHS/Reach,ISO9001:2008
UHF female to SMA male
Our advantages:
1. Faster delivery: 5 workdays.
2. Customized packing and customer's logo are accepted.
3. Sample order is welcome and it can be free if you are real customer.
4. Accept various transportation ways. like by express, by sea, by air and also specified freight company.
5. Professional factory directly sale all over the wrold.
UHF female to SMA male
To know more about us:
1.Fast delivery 3 days for sample order,5 days for formal order
2.High warranty,strictly test by QC before shipping
3.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime
4.Certifications-CE/ROHS/Reach,ISO9001:2008
5.Strong production ablility:-Monthly output is over 600000pcs
6.High quality and low price
UHF female to SMA male
Any material, any package, any logo acceptabe, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
