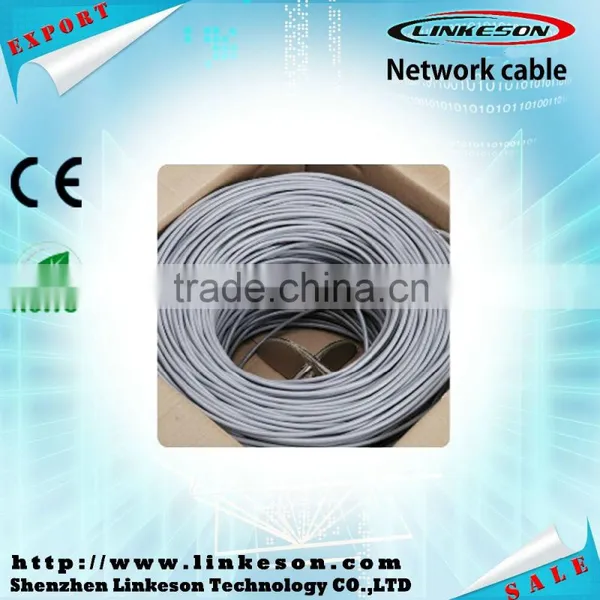

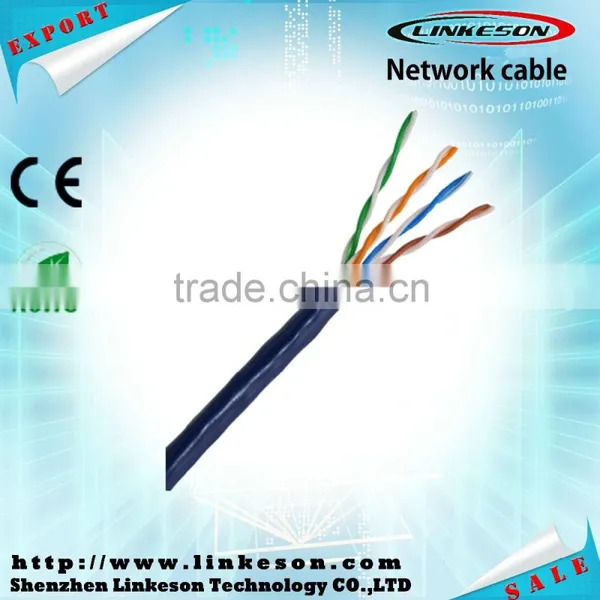

Network Cable UTP CCU/CCA/CCAG/CCAS conductor 4 pair Cat 5e cable
Product details show:

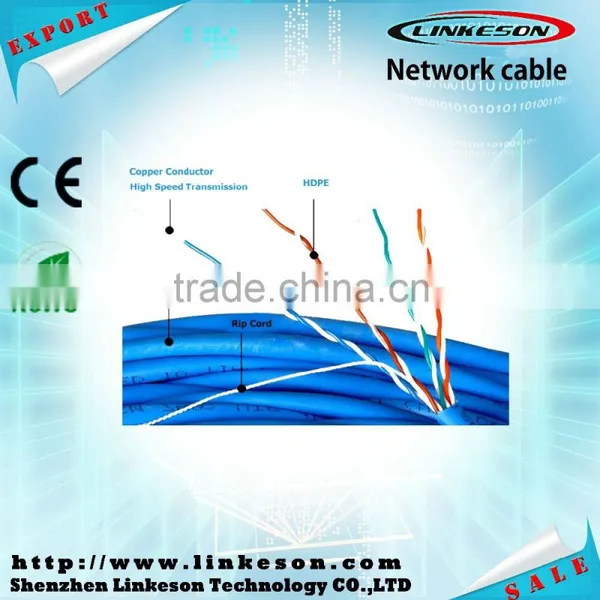

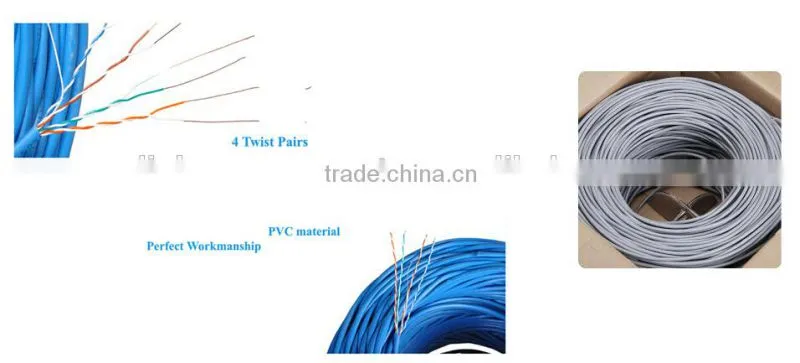

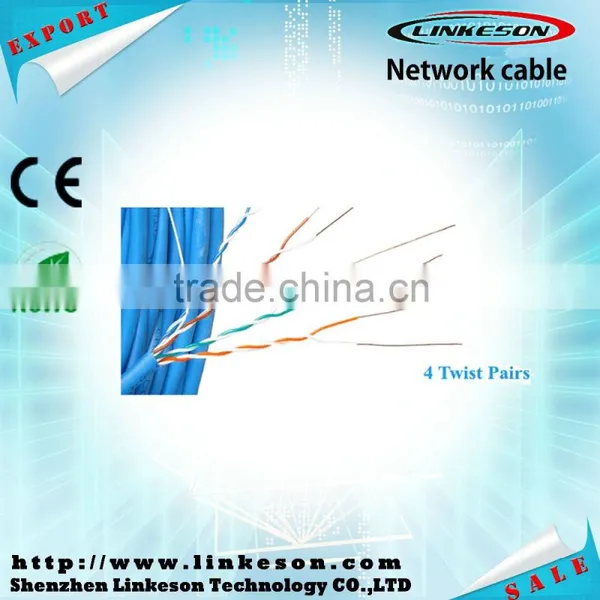

Cable construction
Item |
Conductor AWG | Number Of Pairs | Shielding | Drain Wire | O.D. |
| Cat5e UTP | 24 (0.51mm) | 4 | Non | Non | 5.4mm |
| Cat5e FTP | 24 (0.51mm) | 4 | Aluminum Foil | Yes | 6.0mm |
| Cat5e SFTP | 24 (0.51mm) | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.5mm |
Electrical Characteristics: |
|||
| Property | Value | Units | |
| DC Conductor Resistance Max. | 9.38 | Ω/100m | |
| Resistance Unbalance Max. | 2% | ||
| Mutual Capacitance Nom. | @1kHz | 5.6 | nF/100m |
| Capacitance Unbalance pair/ground Max. | @1kHz | 160 | pF/100m |
| Characteristic Impedance | 0.772 -100 MHz | 100+15 | Ω |
| Maximum Delay Skew | 1.0-100 MHz | 45 | ns/100m |
| Velocity of Propagation | 68% | Speed of Light | |
| Maximum Propagation Delay | 10 MHz | 545 | ns/100m |
Application:
Suitable for both voice and high speed data applications in Local Area Network |
Compliances | AS/NZS 3080:2003 (Cat 5e) |
| ISO/IEC 11801 Ed.2 (Cat 5e) | ||
| 10 Base-T (IEEE 802.3)_ | ANSI/TIA 568-C.2 (Cat 5e) | |
| 100 Base-T (IEEE 802.3)_ | AS/CA S008:2010 | |
| 4/16 Mbps Token Ring (IEEE 802.5)_ | UL Verified (Cat 5e) | |
| 52/155 Mbps ATM_ | IEC 60332-1 | |
| 100 VG-AnyLan | Conductor | Plain Annealed Copper Wire (24 AWG) |
| 100 Mbps TP-PMD (ANSI X3T9.5)_ | Insulation | High Speed Data Grade Polyolefin |

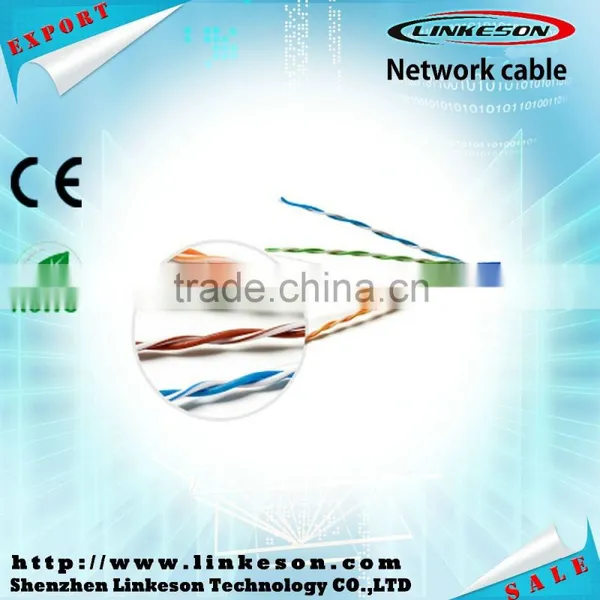

| 1000 Base-T (Gigabit Ethernet)_ | Pair 1 – White/Blue & Blue | |
| Broadband and baseband analogue video_ | Pair 2 – White/Orange & Orange | |
| Digital video_ | Pair 3 – White/Green & Green | |
| Environmental Performance | Pair 4 – White/Brown & Brown. | |

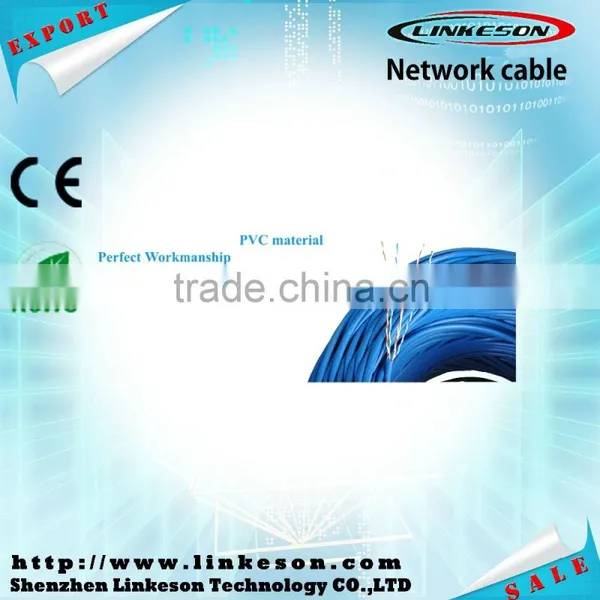

| Installation Temperature -10°C to 40°C | Sheath | Flame Retardant PVC |
| Operating Temperature -20°C to 60°C | Cable printed with metre marking |
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
