Specifications

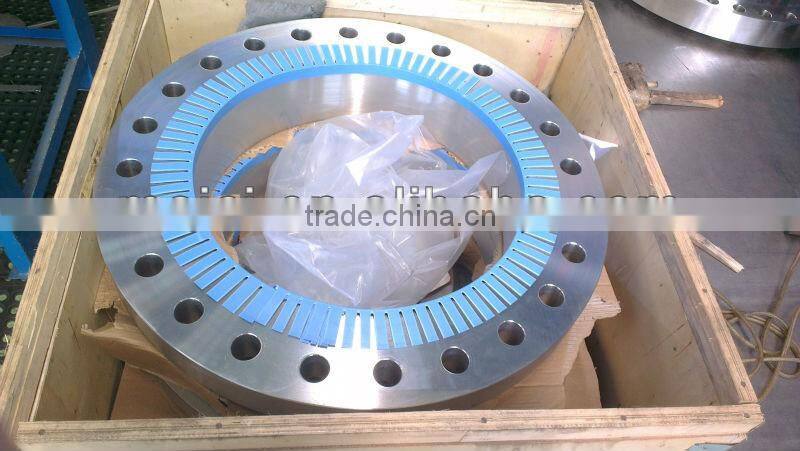

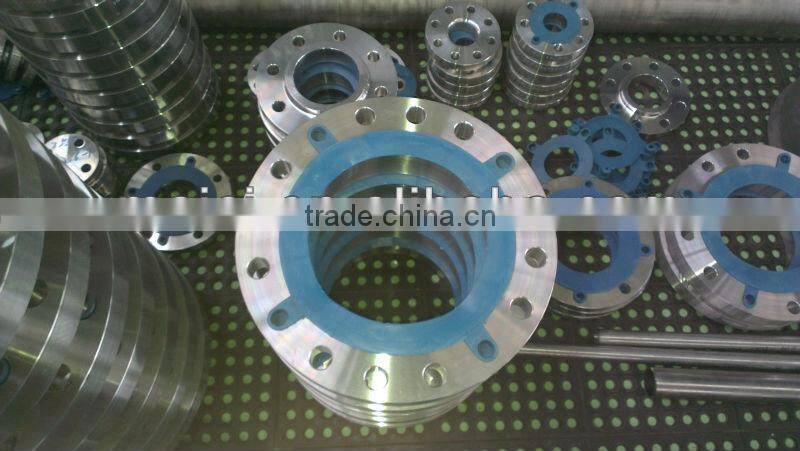

Large Diameter Flange1)size 1/2"~100"surface bright or mat polish
2)Grade:Gr1,Gr2,N6,3043)
3)Standard: AMSE.DIN
| large diameter flanges | |||
| Size | 1/2"-160" |
||
| Type |
Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind,Etc. |
||
| Standard | ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB |
||
| Class | ANSI 150LBS-2500LBS, |
||
DIN PN6-PN160 | |||
BS PN0.25-PN25 PN2.0-PN42.0 | |||
JIS 5K-30K | |||
| Materials | Carbon Steel |
ASTM:SA105N/A105 |
|
Low Temperature Carbon Steel: ASTM SA350 LF2 | |||
High Strength Steel: ASTM SA694 F42/46/52/56/60/65 | |||
Stainless Steel |
ASTM A182 F304/304L/316/316L | ||
Alloy Steel |
ASTM A182 F1/F5/F9/F11/F22/F91/Etc. | ||
Duplex stainless steel |
ASTM A182 F51/F53/F55/F60 | ||
Nicke alloys |
Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800 | ||
Cu-Ni |
90/10,70/30 | ||
Process |
Free forging, plate cutting. | ||
| Printing | Carbon steel and alloy steel with yellow print, black print, oil or zinc. |
||
| Packing | Plywood case |
||
| Delivery | Usually within one month after receiving the formal order . |
||
| Inspection | Factory in-house or Third Party inspection available upon requests. |
||
We can also manufacture special application flanges and forgings that customers require. | |||
| Forged Steel Flanges: | |||
|
* ASME/ANSI B16.5 : WELDING NECK FLANGE, SLIP-ON FLANGE, BLIND FLANGE,HIGH HUB BLIND FLANGE, SOCKET WELD FLANGE.LAPJOINT FLANGE, THREADED FLANGE. RING TYPE JOINT FLANGE. | |||
| Pressure Class : 150, 300, 400 , 600 , 900, 1500 , 2500 | |||
| * ASME/ANSI B16.47(SERIES A & B) : WELDING NECK FLANGE, BLIND FLANGE. | |||
| Pressure Class :75, 150, 300, 400 , 600 , 900 | |||
| * ASME/ANSI B16.36 : (ORIFICE FLANGES) WELDING NECK FLANGE, SLIPON FLANGE, THREADED FLANGE. | |||
| Pressure Class :300, 400 , 600 , 900, 1500 , 2500 | |||
| * ASTM/ANSI B16.48:( Figure-8 blanks) | |||
| Pressure Class :150, 300, 400 , 600 , 900,1500, 2500 | |||
| * MSS SP44 :WELDING NECK FLANGE, BLIND FLANGE. | |||
| Pressure Class :300, 400 , 600 , 900 | |||
| * API 6A :WELDING NECK FLANGE, THREAD FLANGE,BLIND FLANGE. | |||
| Pressure :2000Psi, 3000Psi, 5000Psi, 10000Psi, 15000Psi, 20000Psi, 25000Psi |
Our products :carbon steel ,alloy steel ,stainless steel pipes and pipe fittings
long/short radius elbows(EL/ES),straight / reducing tee(TC/TR) ,SO ,WN,PL,BL,SW,TH flanges,pipe end cap,eccentric/concentric reducers ;sprial welded steel pipe (SSAW),seamless steel pipe (SMLS) ,and LSAW pipe!
The sizes:
Elbow |
DN15~DN3600 |
Flange |
DN15~DN3600 |
Tee |
DN15~DN3600 |
Reducer |
DN15~DN3600 |
Seamless Steel pipe |
DN15~DN1200 |
ERW |
DN15~DN1400 |
SSAW |
DN200~DN3600 |
LSAW: |
DN300~DN1400 |
Wall thickness: |
1mm~160mm |
Factory Photo
Equipments Capacity
Enterprice Certification
Enternal Cooperation and exchange

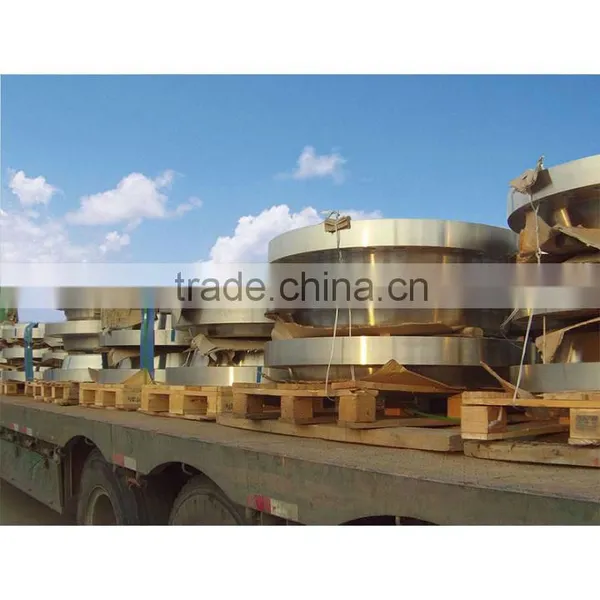

Packing and Loading
Our Advantages
1. All products are made of high-quality imported raw materials
2. Our Products are certified by ISO9001:2008 authentication quality systems
3. We are nominated as the AAA enterprise by Jiangsu govement
4. Quick Response to Your Enquiry
5.We can accepted small Orders.
6.We can offer high quality with good price
7.So fa our products are exported to many contries ,such as the United States,Canada,Japan Europen Countries,South Korea and South East Asia .
8.We have the most advance maching and testing Faclity .
9.We can offer high quality wiith good price.
Looking forward to building up business relationship with you
Welcome to your enquire at any time !!!
