Specifications

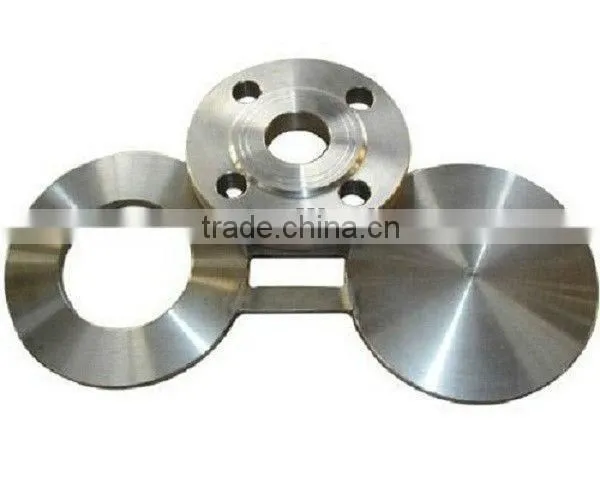

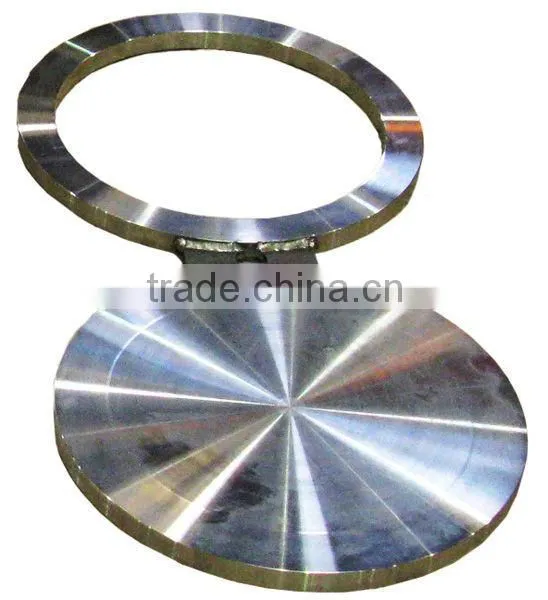

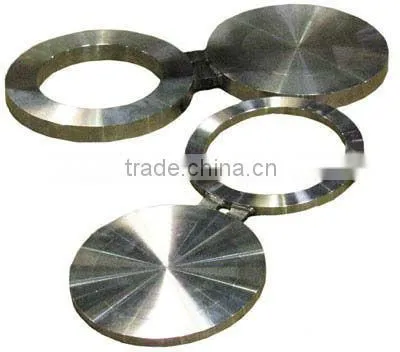

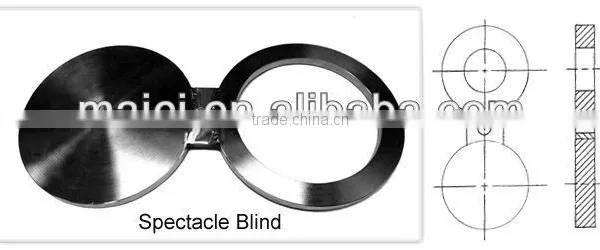

Spectacle Blind flange asme b16.481. Name: spectacle blind flange
2. Size: 1/2"- 48"
Spectacle Blind flange asme b16.48
1. Product: spectacle blind flange
2. Material: Titanium & Titanium alloy, Nickel & Nickel alloy, Stainless steel
3. Certificate: ISO 9001 certificate, API.
1. Name: spectacle blind flange
2. Size: 1/2"- 48"
3. Species: Thread seamless equal (straight), thread equal,
4. Standard: ANSI/ASME B16.48
5. Material:
Super duplex steel (S31803, S32205, S32750, S32760, S32507)
Titanium & Alloy (Gr1, Gr2, Gr3, Gr7, Gr12, Gr5)
Nickel
Ni200, Ni201, Monel400/K500, Inconel 600/625,
Incolloy800/800H/825)
Hastelloy C-276, C-4, C-2000, C-22
Hastelloy -2/3, Hastelloy G, Alloy 20
Zirconium & Alloy
R60702, R60705
Tantalum & Alloy
Ta1, Ta2
6. Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB etc.
7. Qualification: ISO 9001:2008; Alibaba high quality supplier
8. Package: upon customer's requirement
9. Surface: upon customer's requirment
10. Delivery Time: upon customer's requirement
11. Payment Term: L/C & T/T at sight
12. Advantages: we can offer various sizes and various materials, a package of products, customerized products
13. Others: High quality with lowest price; fast delivery and best service
Used for: petroleum, chemical, power, gas, water, line pipe, heat exchanger, shipbuilding, construction, etc.
Tolerance: not less than +_8% of normal wall thickness.
Our objective: Survival by quality and development by credibility.
Special design available to all the production process is made according to clients' requirements strictly.
| Chemical Composition Content | Mechanical Properties | |||||||||||||
| Material NO | C | Mn | Si | S | P | Cr | Mo | Ni | tensile strength |
yield strength |
elongation | |||
| A105 | ≤ 0.35 | 0.6-1.05 | 0.1-0.35 | ≤ 0.04 | ≤ 0.035 | / | / | / | ≥ 485 | ≥ 250 | ≥ 30 | |||
| Forged Steel Flanges: |
| * ASME/ANSI B16.5 : WELDING NECK FLANGE, SLIP-ON FLANGE, BLIND FLANGE,HIGH HUB BLIND FLANGE, SOCKET WELD FLANGE.LAPJOINT FLANGE, THREADED FLANGE. RING TYPE JOINT FLANGE. |
| Pressure Class : 150, 300, 400 , 600 , 900, 1500 , 2500 |
| * ASME/ANSI B16.47 (SERIES A & B) : WELDING NECK FLANGE, BLIND FLANGE. |
|
Pressure Class :75, 150, 300, 400 , 600 , 900
|
