Home > Construction & Decoration > Pipe Fittings > Tee > High Quality Titanium Pipe Flange

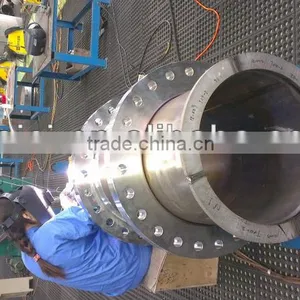

High Quality Titanium Pipe Flange

Name: High Quality Titanium Pipe Flange
Brand: Maici, Maici
SKU: 129390077
Availability: InStock

High Quality Titanium Pipe Flange thumbnail-1

High Quality Titanium Pipe Flange photo-1

US$ 100 - 1,000 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Material:

Other, Stainless Steel, SS,GR1,N4,N6

Technics:

Other, Welding

Type:

Flange

Contact Supplier Request Quote Chat Now

Nanjing Maici Titanium Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Stainless Steel, SS,GR1,N4,N6

Technics Other, Welding

Type Flange

Place of Origin Jiangsu, China

Model Number Flange-0816a

Brand Name Maici, Maici

Connection Other, Welding, Welding

Shape Other, Round, Round

Head Code Other, Round-Large Diameter Flange pipe

Specifications

Titanium pipe flange
1)Size:1/2"-48"
2)Pressure:150#-2500#
3)Standard:ANSI DIN JIS UNI nonstandard
4)Type:WN SO SW BL PL

High quality titanium pipe flange

large diameter flanges
Size	1/2"-160"
Type	Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind,Etc.
Standard	ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB
Class	ANSI 150LBS-2500LBS,
	DIN PN6-PN160
	BS PN0.25-PN25 PN2.0-PN42.0
	JIS 5K-30K
Materials	Carbon Steel	ASTM:SA105N/A105
		Low Temperature Carbon Steel: ASTM SA350 LF2
		High Strength Steel: ASTM SA694 F42/46/52/56/60/65
	Stainless Steel	ASTM A182 F304/304L/316/316L
	Alloy Steel	ASTM A182 F1/F5/F9/F11/F22/F91/Etc.
	Duplex stainless steel	ASTM A182 F51/F53/F55/F60
	Nicke alloys	Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
	Cu-Ni	90/10,70/30
Process	Free forging, plate cutting.
Printing	Carbon steel and alloy steel with yellow print, black print, oil or zinc.
Packing	Plywood case
Delivery	Usually within one month after receiving the formal order .
Inspection	Factory in-house or Third Party inspection available upon requests.
We can also manufacture special application flanges and forgings that customers require.

Forged Steel Flanges:
* ASME/ANSI B16.5 : WELDING NECK FLANGE, SLIP-ON FLANGE, BLIND FLANGE,HIGH HUB BLIND FLANGE, SOCKET WELD FLANGE.LAPJOINT FLANGE, THREADED FLANGE. RING TYPE JOINT FLANGE.
Pressure Class : 150, 300, 400 , 600 , 900, 1500 , 2500
* ASME/ANSI B16.47(SERIES A & B) : WELDING NECK FLANGE, BLIND FLANGE.
Pressure Class :75, 150, 300, 400 , 600 , 900
* ASME/ANSI B16.36 : (ORIFICE FLANGES) WELDING NECK FLANGE, SLIPON FLANGE, THREADED FLANGE.
Pressure Class :300, 400 , 600 , 900, 1500 , 2500
* ASTM/ANSI B16.48:( Figure-8 blanks)
Pressure Class :150, 300, 400 , 600 , 900,1500, 2500
* MSS SP44 :WELDING NECK FLANGE, BLIND FLANGE.
Pressure Class :300, 400 , 600 , 900
* API 6A :WELDING NECK FLANGE, THREAD FLANGE,BLIND FLANGE.
Pressure :2000Psi, 3000Psi, 5000Psi, 10000Psi, 15000Psi, 20000Psi, 25000Psi

Our products :carbon steel ,alloy steel ,stainless steel pipes and pipe fittings

long/short radius elbows(EL/ES),straight / reducing tee(TC/TR) ,SO ,WN,PL,BL,SW,TH flanges,pipe end cap,eccentric/concentric reducers ;sprial welded steel pipe (SSAW),seamless steel pipe (SMLS) ,and LSAW pipe!

The sizes:

Elbow	DN15~DN3600
Flange	DN15~DN3600
Tee	DN15~DN3600
Reducer	DN15~DN3600
Seamless Steel pipe	DN15~DN1200
ERW	DN15~DN1400
SSAW	DN200~DN3600
LSAW:	DN300~DN1400
Wall thickness:	1mm~160mm
