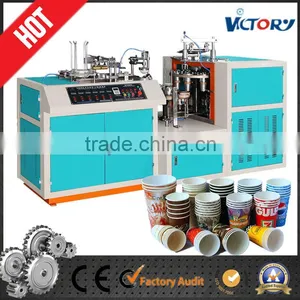

PAPER CUP MACHINE

PAPER CUP MACHINE photo-1
US$ 8,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Other
Place of Origin Zhejiang, China
Brand Name VICTORY
Model Number SZB/W
Voltage 380v/220v
Power(W) 4.5kw
Dimension(L*W*H) 2650x1300x1700mm
Weight 1.5kg
Certification Other
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

PAPER CUP MACHINE FOR COFFEE CUPS



SZB/W Single Side PE Paper Cup Forming Machine

(The Sealing System is Heater)

PAPER CUP MACHINE


Company Information



PAPER CUP MACHINE

Victory Machinery Co., Ltd of Rui'an City, Zhejiang Province, which is a member of China Packing Technology Association, is located in Jiangnan Industrial Development Zone, Rui'an City. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.

Our machines are produced by bringing in international new technology and so on. Our company has obtained ISO9001 certificate of the quality system & CE certificate. We enjoy high status in the same circle and good reputation in our customers. Our products are sold at home and abroad.


Product Description



SZB/W Single PE coated paper cup machine is a automatic environmental machine with multi-running positions. This machine runs a whole procedure   of paper-feeding , cup-fan-wall sealing, oiling, bottom punching, heating, knuring,curling, cup discharge and cup counter.

MAIN TECHNICAL PARAMETER

Model

SZB/W-9

SZB/W-12

SZB/W-18(Special model)

SZB/W-32(Special model)

Production capacity

45-55PCS/min

40-50PCS/min

35-45PCS/min

30-40PCS/min

Required   paper

150-320gsm Single Side PE Paper

150-320gsm Single Side PE Paper

150-320gsm Single Side PE Paper

150-320gsm Single Side PE Paper

Cup’s Range

(A) 50 -80MM ,(B)35-90MM
(C) 35-55MM , (D)4 -10 MM

(A) 50 -90MM ,(B)35-115MM
(C) 35-70MM , (D)5 -10 MM

(A) 60 -128MM ,(B)80 -140MM
(C) 50 -75MM , (D)5 -10 MM

(A) 60 -128MM ,(B)80 -180MM
(C) 50 -75MM , (D)5 -10 MM

Total power

220/380V 50/60HZ 4.5KW

Weight

1400kg

1500 kg

1700kg

1850kg

Overall dimensions (L*W*H)

 2500*1300* 1700mm

2650*1300* 1700mm

2850*1300* 1900mm



3000*1400* 2000mm





PAPER CUP MACHINE

Remark:

(A) Stand for Top Diameter

(B) Stand for Height

(C) Stand for Bottom Diameter

(D) Stand for Knurling Parts



WHOLE LINE OF PRODUCING PAPER CUP

PAPER CUP MACHINE


Packaging & Shipping

Packaging: standard wooden case

PAPER CUP MACHINE






Our Services

we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best service from us.
