SZB/2W Double Sides PE Paper Cup Forming Machine (the Sealing System is Ultrasonic)
MACHINE DESCRIPTION

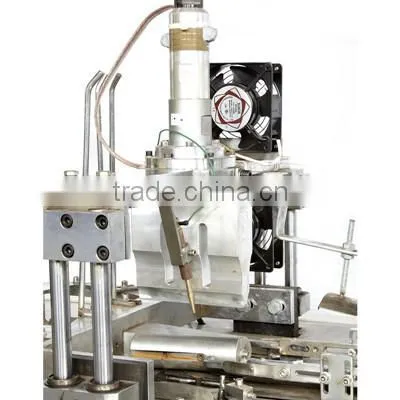

SZB/2W Double sides PE coated paper glass machine is an equipment can produce both for Single side PE paper cups and Double sides PE paper cups,it compared to the original SZB/W Single side PE paper cup machine,this machine has up to a better quality and beautiful appearance with Ultrasonic welding function.These paper cups suitable for both hot and cold drinking,such as coca cola,ice cream and coffee etc.
MAIN TECHNICAL PARAMETER
Model |
SZB/2W-9 |
SZB/2W-12 |
SZB/2W-18(Special model) |
SZB/2W-32(Special model) |
Production capacity |
45-55PCS/min |
40-50PCS/min |
35-45PCS/min |
30-40PCS/min |
Required paper |
150-400gsm Single Side PE Paper or Double Sides PE Paper |
150-400gsm Single Side PE Paper or Double Sides PE Paper |
150-400gsm Single Side PE Paper or Double Sides PE Paper |
150-400gsm Single Side PE Paper or Double Sides PE Paper |
Cup’s Range |
(A) 50 -80MM ,(B)35-90MM |
(A) 50 -90MM ,(B)35-115MM |
(A) 60 -128MM ,(B)80 -140MM |
(A) 60 -128MM ,(B)80 -180MM |
Total power |
220/380V 50/60HZ 4.5KW |
|||
Air supply requirement |
Working pressure: 0.4-0.6working |
|||
Weight |
1400kg |
1500 kg |
1700kg |
1850kg |
Overall dimensions (L*W*H) |
2500*1300* 1700mm |
2650*1300* 1700mm |
2850*1300* 1900mm |
3000*1400* 2000mm |
Note:We can make the paper cup machine suitable for your requirement.
Application:
Double sides PE coated paper cups are widely used for all kinds of drinks:Hot drinks(hot coffee cups, hot water cups), cold drinks paper cups(ice-cream cups), all kinds of beverage, for example coca-cola, coke, cold beer.
Samples
The goods should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems,
even small problems. It is hard for customers to solve all the problems.
Our company will provide you good after services. We can help you solve the problem through video, email, phone.
If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.
Who We Are?
We are Ruian Victory Machinery Co., Ltd, which is a member of China Packing Technology Association. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
