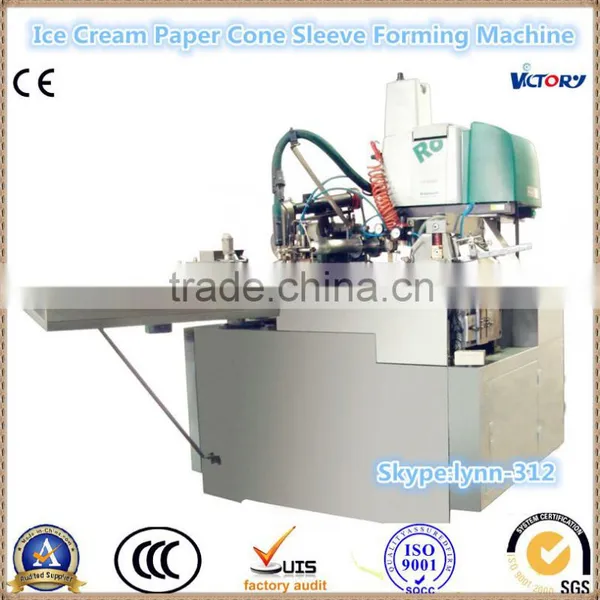

High Quality Ice Cream Paper Cone Machine

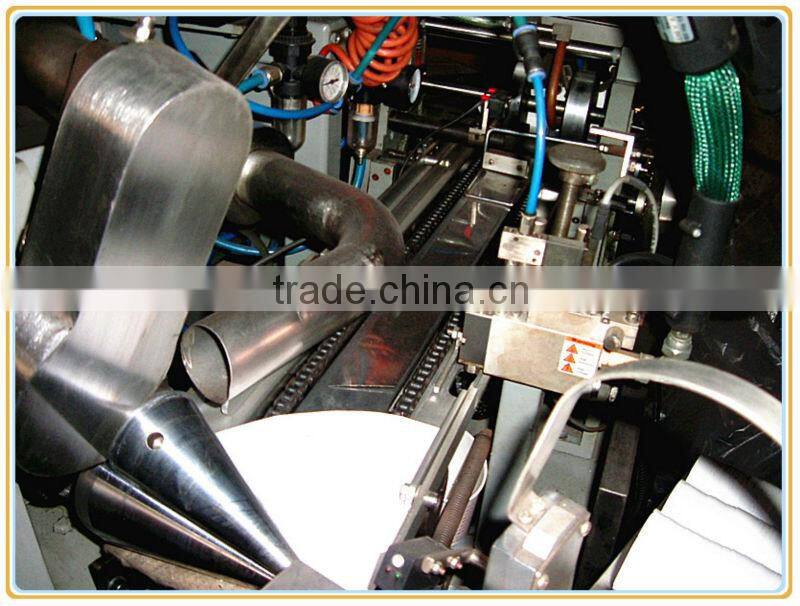

A sucking nozzle will suck the paper, which has been printed previously, from the paper bracket to the transportation chain, and then transport it to the forming mould. During the transportation, the paper will be spread with thermosol. The position, length and quantity of the thermosol can be adjusted during the production process without stopping the machine. After the formation, the paper spread with glue will be automatically blown to be transported to the collection machine. The Pile and counting are automatic, and the paper will be carried out according to the pre-arranged pile numbers without stopping the machine.
Characteristics
1. High efficiency, the maximum speed is 190pcs/min, with automatic counting of the finished product.
2. Small volume, occupying little space, with convenient installation.
3. Small load power of the machine, which is about 5.5KW; speed regulation by frequency vibration, with high precision.
4. The transmission system adopts box type structure, with good rigidity and stability and high precision; Oil circulation lubrication.
5. High automatic degree, simple operation and regulation, with convenient maintenance.
Main Technical Parameter
Model |
SJB high quality ice cream paper cone machine |
Production capacity |
The maximum speed can reach 190 PCS/minute |
Required paper |
The ordinary paper, composite aluminum foil paper, no |
The parts for selection |
2. Air compressor |
Total power |
380v 50HZ 5.5KW |
Height & Angle |
70-255mm & 17°~ 28° |
Overall dimensions &Weight |
1980*1710* 1800mm & 1200 kg |
Main Configuration |

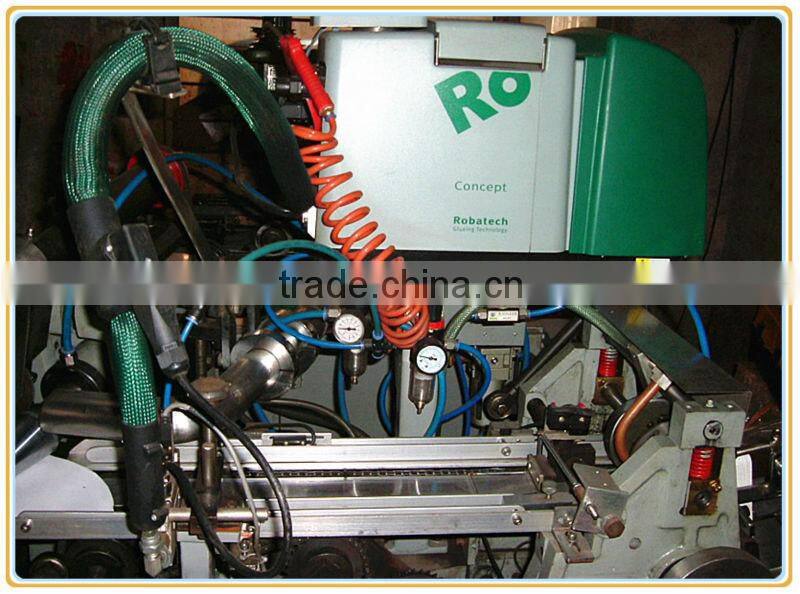

1).Glue Box:is adopted Robatech from Switzerland 2).Electromagnetic valve: SMC 3).Transducer: DELTA 4).Counter: OMRON 5).Switch: OMRON 6).Relay: OMRON 7).Photocell eye: SCHNEIDER 8).AC contactor :SCHNEIDER |
Samples
1. Outside Package: Standard Export Wooden Case;
2. Inside Package: Plastic Film.
The goods should be of good quality. But another important thing is the after service. Machine are machines, so they will have problems, even small problems.
If there were any problems, you can find the sollution in operation video and VCD which we will sent you.
If the problem is hard for you to solve it, we also can help you solve the problem through video, email or phone.
If needed, we can also let our engineer go to your country to solve the problem.
We hope you will satisfied with our machine and also our services.
Victory Machinery Co., Ltd of Rui'an City, Zhejiang Province, which is a member of China Packing Technology Association, is located in Jiangnan Industrial Development Zone, Rui'an City. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
Welcome to Visit US!
NOTE:
We can manufacture a special one for you of your own requirement!
So if you were interested in our high quality ice cream paper cone machine, welcome to contact with me freely!
