SJB Ice Cream Cone Sleeves Aluminium Foil
- 350 Set / Sets per Month
- Ningbo or Shanghai Port
- T/T Credit Card PayPal
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Paper Core Machine | Processing Type: | Paper Folding Machine |
Place of Origin: | Zhejiang, China | Brand Name: | victory | Model Number: | SJB |
Voltage: | 380v 50HZ | Power(W): | 5.5KW | Dimension(L*W*H): | 1980*1710* 1800mm |
Weight: | 1.2kg | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

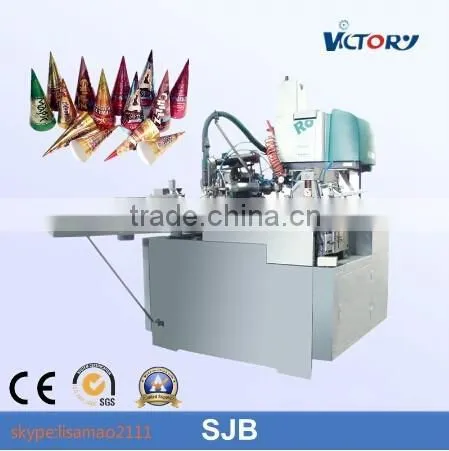

Ice Cream Paper Cone Sleeve Forming Machine
Victory Machinery Co., Ltd of Rui'an City, Zhejiang Province, which is a member of China Packing Technology Association, is located in Jiangnan Industrial Development Zone, Rui'an City. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
The above products which are produced by bringing in international new technology and so on. Our company has obtained ISO9001 certificate of the quality system & CE certificate. We enjoy high status in the same circle and good reputation in our customers. Our products are sold at home and abroad.
A sucking nozzle will suck the paper, which has been printed previously, from the paper bracket to the transportation chain, and then transport it to the forming mould. During the transportation, the paper will be spread with thermosol. The position, length and quantity of thermosol can be adjusted during the production process without stopping the machine. After the formation, the paper spread with glue will be automatically blown to be transported to the collection machine. The pile and counting are automatic, and the paper will be carried out according to the pre-arranged pile numbers without stopping the machine.
CHARACTERISTICS
1).High efficiency, the maximum speed is 190 pcs/minute, with automatic counting of the finished product.
2).Small volume, occupying little space, with convenient installation.
3).Small load power of the machine, which is about 5.5 KW; speed regulation by frequency vibration, with high precision.
4).The transmission system adopts box type structure,with good rigidity and stability and high precision;oil circulation lubrication.
5).High automatic degree, simple operation and regulation, with convenient maintenance.
MAIN TECHNICAL PARAMETER
Model | SJB |
Production capacity | The maximum speed can reach 190 PCS/minute |
Required paper | The ordinary paper, composite aluminum foil paper, no more than 120g/m2 dry wax paper, art paper not exceeding 180g/m2 |
The parts for selection | 1. The control of thermosol spreading process 2. Air compressor |
Total power | 380v 50HZ 5.5KW |
Height & Angle | 70-255mm & 17° 28° |
Overall dimensions &Weight | 1980*1710* 1800mm & 1200 kg |
Main Configuration | 1).Glue Box:is adopted Robatech from Switzerland 2).Electromagnetic valve: SMC 3).Transducer: DELTA 4).Counter: OMRON 5).Switch: OMRON 6).Relay: OMRON 7).Photocell eye: SCHNEIDER 8).AC contactor :SCHNEIDER |
WHOLE LINE OF PRODUCING PAPER CUP
Packaging: Standard wooden case
we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best service from us.
Welcome to contact with us if you have any questions about our products.
