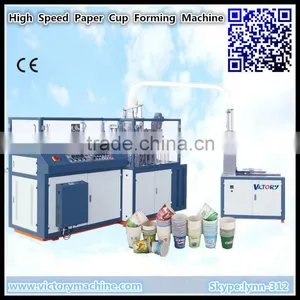

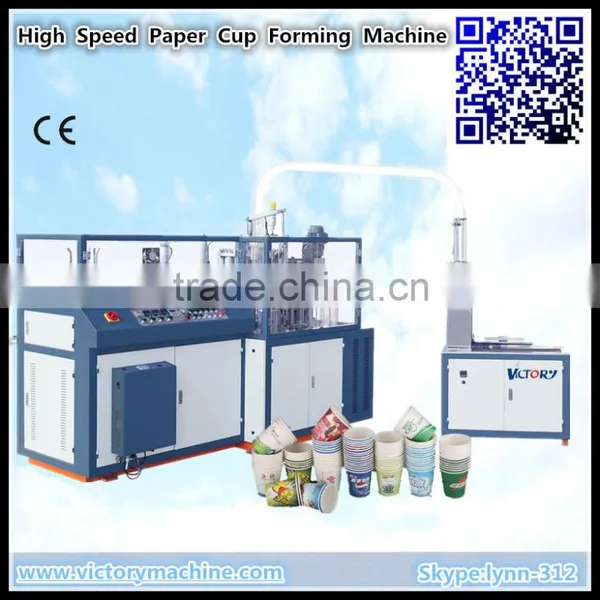

HSZB High- speed Paper Cup Making Machine
Victory Machinery Co., Ltd of Rui'an City, Zhejiang Province, which is a member of China Packing Technology Association, is located in Jiangnan Industrial Development Zone, Rui'an City. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
Our machies are produced by bringing in international new technology and so on. Our company has obtained ISO9001 certificate of the quality system & CE certificate. We enjoy high status in the same circle and good reputation in our customers. Our products are sold at home and abroad.

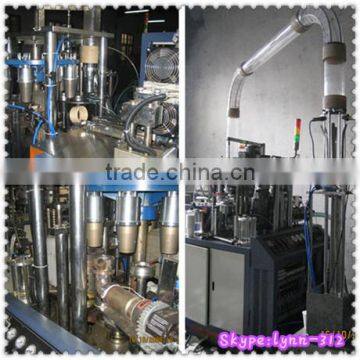

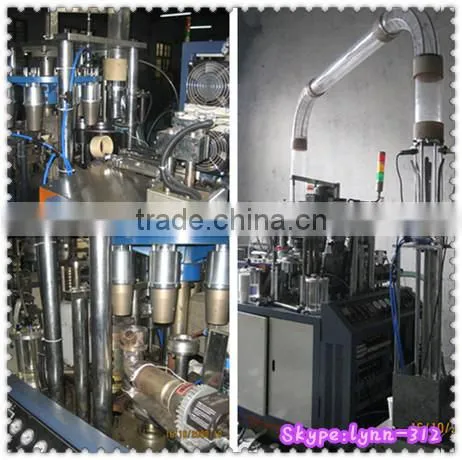

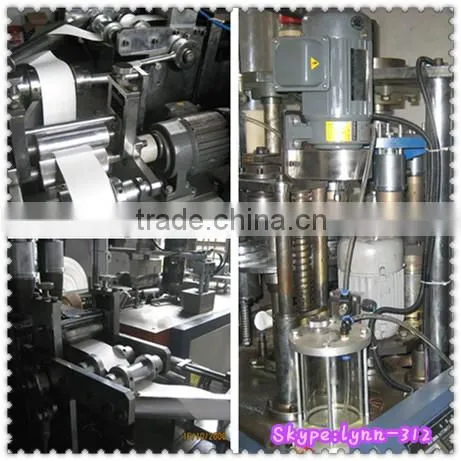

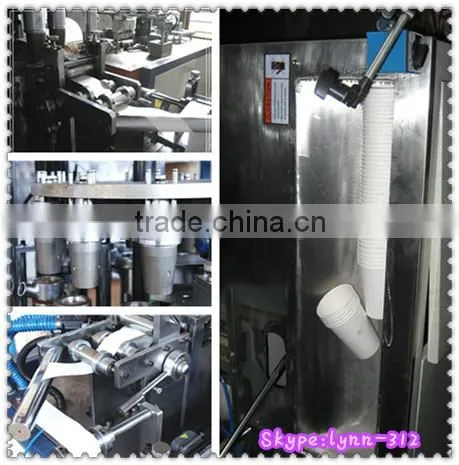

HSZB High- speed paper cup making machine is our latest machine, which is made by us base on our 20 years manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment in china. Thanks to the sealing station is adopted ultrasonic sealing, so this model machine can produces various cups for hot and cold beverages; Ice cream, yoghurts, soups and snacks using single side or double sides PE coated paper. As one of our most popular models, it has its own compact structure, the machine runs steadily and fastly, finished cup with good quality, lowest waste percentage and less noisy, it is the best choice for making any type paper cups.
CHARACTERISTICS
1)The material of cup mould is adopted aluminum instead of carbon steel,owing to the aluminum material is light than carbon steel so it assure the machine running faster than the general paper cup machine.
2)The 90degree revolve transfer cup. It make the forming cup 100% to transfer to mould, reduce the rate of wasting.

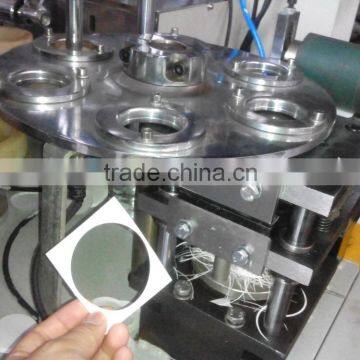

3)The cup bottom can be transferred by one time. It mean the cup bottom can be transfer to cup inside, with highly exactness, reduce the wasting when transfer the second time.
4)Revolve curling bottom. It reduce the touch about cup bottom printing and make the bottom curling equality. It will not destroy the printing surface and the two sides PE paper bottom surface.
5)The parts of machine with nice craftwork. It make sure every part can exchange by each other.
6)Tks to the bolwing air system,the finished paper cups are blowing to certain place to stacking through a piece of windpipe.
MAIN TECHNICAL PARAMETER
Model |
HSZB-1 model high-speed paper cup machine |
HSZB-2 model high-speed paper cup machine |
Production capacity |
70-80PCS/min |
70-80PCS/min |
Required paper |
150-400gsm Single Side PE Paper or Double Sides PE Paper |
200-400gsm Single Side PE Paper or Double Sides PE Paper |
Cups Range |
(A)Top Dia: 60 -125MM ,(B)Height:60-190MM (C)Bottom Dia: 50 -97MM , (D)Knurling:5 -11 MM |
(A) Top Dia:90 -160MM ,(B)Height:60 -190MM (C)Bottom Dia: 80 -130MM , (D)Knurling:6 -11 MM |
Total power |
380V 50HZ 12KW |
380V 50HZ 12KW |
Air supply requirement |
Working pressure: 0.5-0.7working gas volume: 0.8m3 /per minute |
Working pressure: 0.5-0.7working gas volume: 0.8m3 /per minute |
Weight |
2200 kg |
2600kg |
Overall dimensions (L*W*H) |
3200*1700* 2000mm |
3200*1700* 2000mm |
Remark:
(A) Stand for Top Diameter
(B) Stand for Height
(C) Stand for Bottom Diameter
(D) Stand for Knurling Parts
WHOLE LINE OF PRODUCING PAPER CUP
Packaging: standard wooden case
we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best service from us.
Welcome to contact with us if you have any questions about our products.
