Middle Paper Cup Making Machine, Automatic Paper Cup Machine, Disposable Paper Cup Manufacturing Machine, Cup Machinery

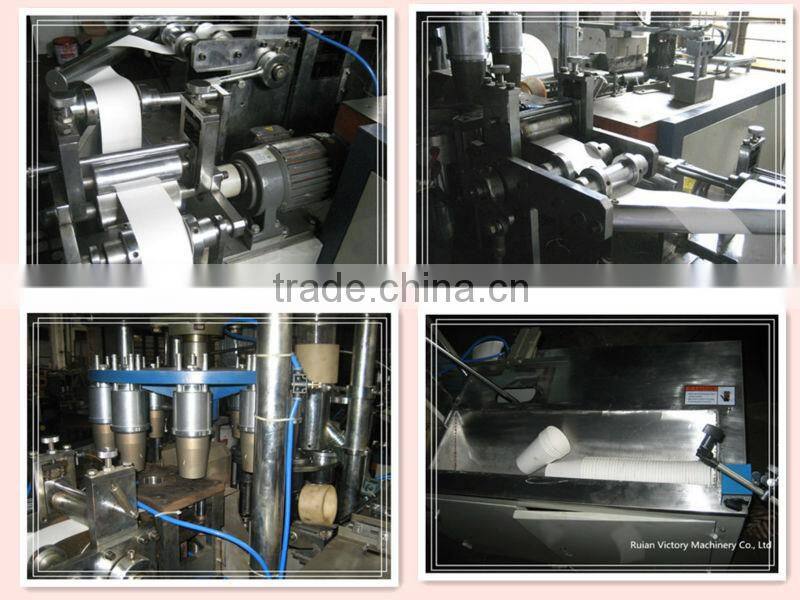

Middle Paper Cup Making Machine, Automatic Paper Cup Machine, Disposable Paper Cup Manufacturing Machine, Cup Machinery photo-1
US$ 22,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name VICTORY
Model Number DGT
Voltage 220/380V 50HZ
Power(W) 10KW
Dimension(L*W*H) 3200*1700*2000mm
Weight 2500kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

High Speed Paper Cup Making Machine, automatic paper cup machine, disposable paper cup manufacturing machine, cup machinery

High Speed Paper Cup Making Machine, automatic paper cup machine, disposable paper cup manufacturing machine, cup machinery.


Product Description



MACHINE DESCRIPTION

    High- speed paper cup machine is our latest machine, which is made by us base on our 20 years manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment in china. Thanks to the sealing station is adopted ultrasonic sealing, so this model machine can produces various cups for hot and cold beverages; Ice cream, yoghurts, soups and snacks using single side or double sides PE coated paper. As one of our most popular models, it has its own compact structure, the machine runs steadily and fastly, finished cup with good quality, lowest waste percentage and less noisy, it is the best choice for making any type paper cups.

Middle Paper Cup Making Machine, automatic paper cup machine, disposable paper cup manufacturing machine, cup machinery

CHARACTERISTICS

1) The material of cup mould is adopted aluminum instead of carbon steel,owing to the aluminum material is light than carbon steel so it assure the machine running faster than the general paper cup machine.

2) The 90degree revolve transfer cup. It make the forming cup 100% to transfer to mould, reduce the rate of wasting.

3) The cup bottom can be transferred by one time. It mean the cup bottom can be transfer to cup inside, with highly exactness, reduce the wasting when transfer the second time.

4) Revolve curling bottom. It reduce the touch about cup bottom printing and make the bottom curling equality. It will not destroy the printing surface and the two sides PE paper bottom surface.

5) The parts of machine with nice craftwork. It make sure every part can exchange by each other.

6) Tks to the bolwing air system,the finished paper cups are blowing to certain place to stacking THROUGH a piece of windpipe.

Main Technical Parameter

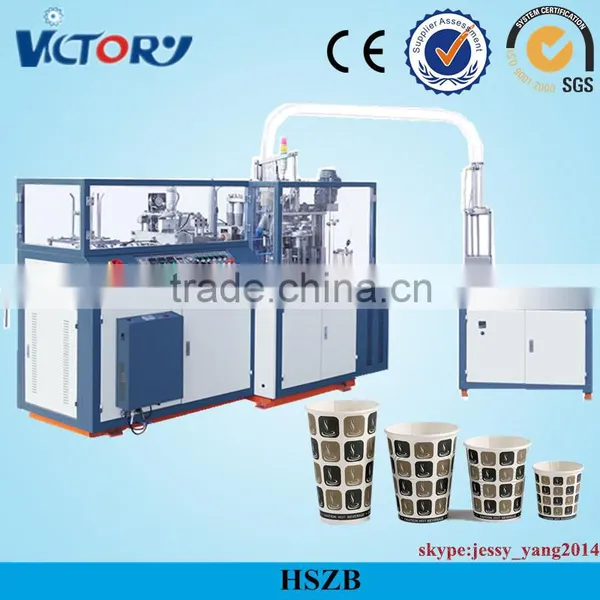

Model

HSZB

Production capacity

60-100PCS/min

Required paper

150-400gsm Single Side PE Paper or Double Sides PE Paper

Cups Range

(A)Top Dia: 60 -125MM,   (B)Height:60-190MM

(C)Bottom Dia: 50 -97MM,  (D)Knurling:5 -11 MM

Total power

380V 50HZ 12KW

Air supply requirement

Working pressure: 0.5-0.7working gas volume: 0.8m3 /per minute

Weight

2300 kg

Overall dimensions (L*W*H)

3200*1700* 2000mm





Middle Paper Cup Making Machine, automatic paper cup machine, disposable paper cup manufacturing machine, cup machinery


Packaging & Shipping



Middle Paper Cup Making Machine, automatic paper cup machine, disposable paper cup manufacturing machine, cup machinery


After-sale Services



    The goods should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problem. It is hard for customers to solve all the problems.

Our company will provide you good after services. We can help you solve the problem through video, email, phone.

If needed, we can also let our engineer go to your country to solve the problem. We hope all the customerwill satisfied with our machine and services.


Company Information



  Who We Are?

We are Ruian Victory Machinery Co., Ltd, which is a member of China Packing Technology Association. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.














FAQ



Middle Paper Cup Making Machine, automatic paper cup machine, disposable paper cup manufacturing machine, cup machinery

Note:

We can manufacturing a special one for you according to your own requirement.
