Paper coffee cup sleeve machine

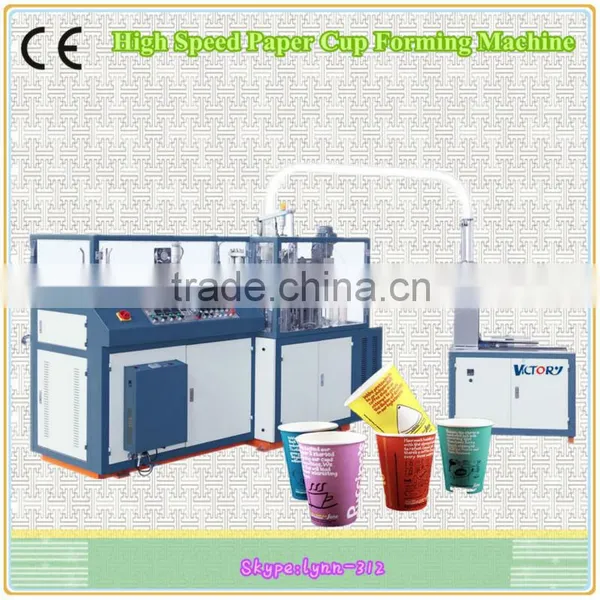

This High speed Paper Cup Making Machine is our latest machine, which is made on the based of our 20 years manufacturing experience and advanced technology from oversea countries, has awarded three national patents. We adopt ultrasonic sealing, cam rocker type cup sending, high temperature bottom curling, slope-driven type bottom rolling and sealing, automatic cup piling, etc. With advantages of compact structure, professional design, and less noisy, the machine is suitable for producing both single and double sides PE paper cups.
Characteristics
1. Major parts are from oversea countries so that improve the quality of the machine.
2. Adopted the steel for knife mold to increase the life.
3. The material of cup mould is adopted aluminum instead if steel, which reduces weight and improve the speed.
4. The heater was from Switzerland, which is heating faster.
5. The cup bottom can be transferred by one time, with highly exactness, reduce the wasting.

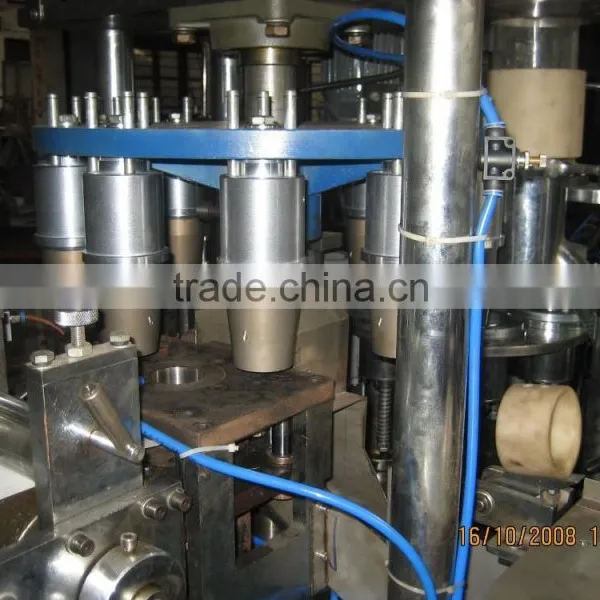

The Technological Figure of High speed Paper Cup Making Machine
Main Technical Parameter
| Model | HSZB-1 model high-speed paper cup machine | HSZB-2 model high-speed paper bowl machine |
| Production capacity | 60-70PCS/min | 60-70PCS/min |
| Required paper | 170-400gsm Single Side PE Paper or Double Sides PE Paper | 200-400gsm Single Side PE Paper or Double Sides PE Paper |
| Cup' s Range | (A) 60 -100MM, (B)60-140MM (C) 40 -70MM, (D)5 -11 MM | (A) 90 -160MM, (B)60 -150MM (C) 70 -130MM, (D)6 -12 MM |
| Total power | 220/380V 50/60HZ 10KW | 220/380V 50/60HZ 11KW |
| Air supply requirement | Working pressure: 0.5-0.7working gas volume: 0.6m³ /per minute | Working pressure: 0.5-0.7working gas volume: 0.6m³ /per minute |
| Weight | 2500 kg | 2800kg |
| Overall dimensions(L*W*H) | 3200*1700* 2000mm | 3200*1700* 2000mm |
| HS Code | 8441309000 | |
| Quality Certificate | CE, ISO, SGS | |
| Packing Method | Wooden Case(Inside machine is covered by plastic film) | |
Remark:
(A) Stand for Top Diameter (B) Stand for Height
(C) Stand for Bottom Diameter (D) Stand for Knurling Part
1. Outside Package: Standard Export Wooden Case;
2. Inside Package: Plastic Film.
The goods should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problems. It is hard for customers to solve all the problems.
Our company will provide you good after services. We can help you solve the problem through video, email, phone.
If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.
Business Card Working Video
Welcome to Visit US!
Victory Machinery Co., Ltd of Rui'an City, Zhejiang Province, which is a member of China Packing Technology Association, is located in Jiangnan Industrial Development Zone, Rui'an City. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
Note:
We can manufacture a Special One for you of your own requirement!
So, if you were interested in our High speed Paper Cup Making Machine,welcome to contact with me!
Any Comment Will be Welcomed!
