Welcome to Ruian Victory Machine Co.,Ltd
Brief Introduction

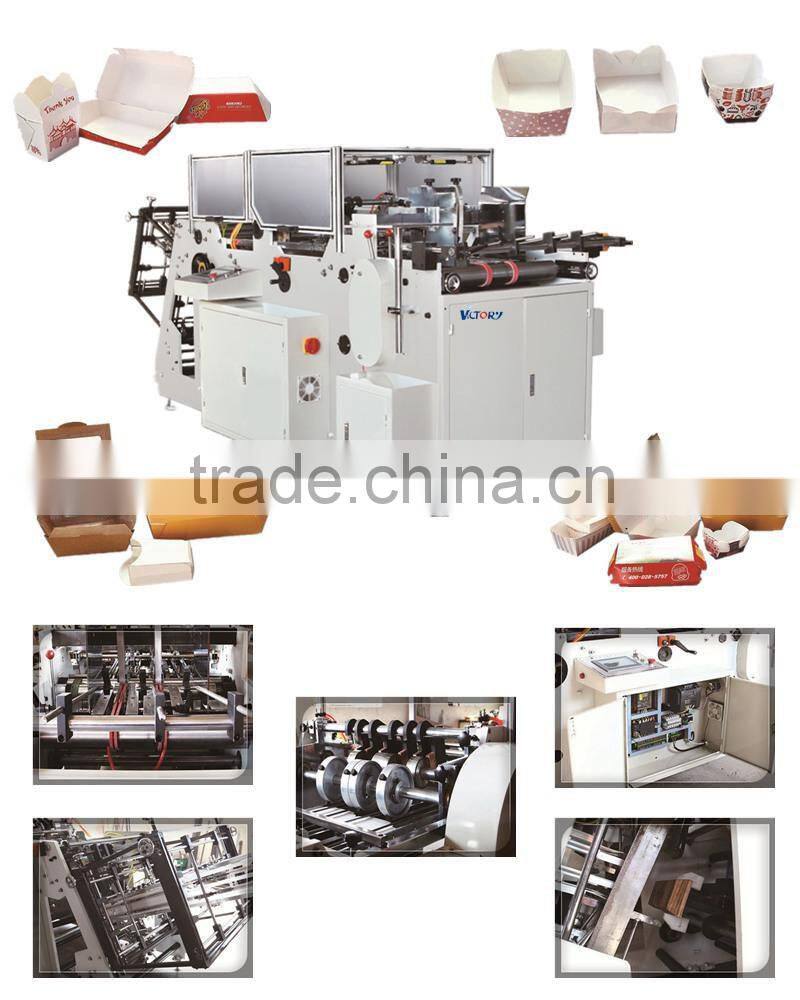

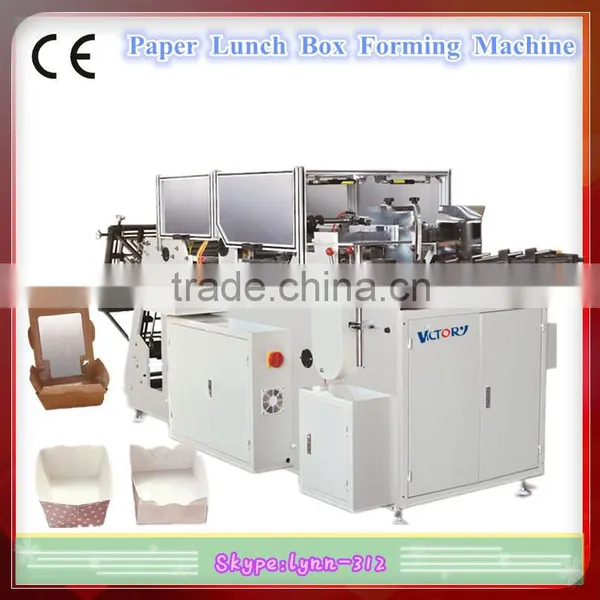

SHB Burger Box Making Machine
SHB Burger Box Making Machine is a special forming machine that produces burger box, one block box, food pail box(to go box), French Fries box and other related containers made by cardboard paper and corrugated paper.
Main Technical Parameter
Model |
SHB Burger Box Making Machine |
Productivity |
Max 180 pcs /min |
Sealing Method |
Glue Sealing |
Material |
200-600 g/m² Cardboard |
Paper Thickness |
Max 1.5 mm |
Electricity Required |
3 kw /hr |
Air Required |
6kg/cm²*200 L/min |
Total Weight |
2000KGS |
M/C Dimension |
2950*1320*1500 mm |
Technical Data
Normal Output:
A: one block paper box (4 corner box without lid) MAX: 180 pcs /min
B: fries box MAX: 150 pcs /min
C: hot-dog box / burger box MAX: 120 pcs /min
D: food pail MAX: 100 pcs /min
P.S. The speed mentioned above is under normal conditions. Actual output may vary in box shape, quality of material and its substance.
P.S. SHB Burger Box Making Machine can produce boxes made by aluminum foiled paper and two-side PE coated paper with hot gluing system.
Advantages
1. Able to produce different products on one machine. Short time required to change the mould.
2. Controlled by PLC system, able to produce complicated boxes.
3. Finished products are collected, stacked and counted automatically.

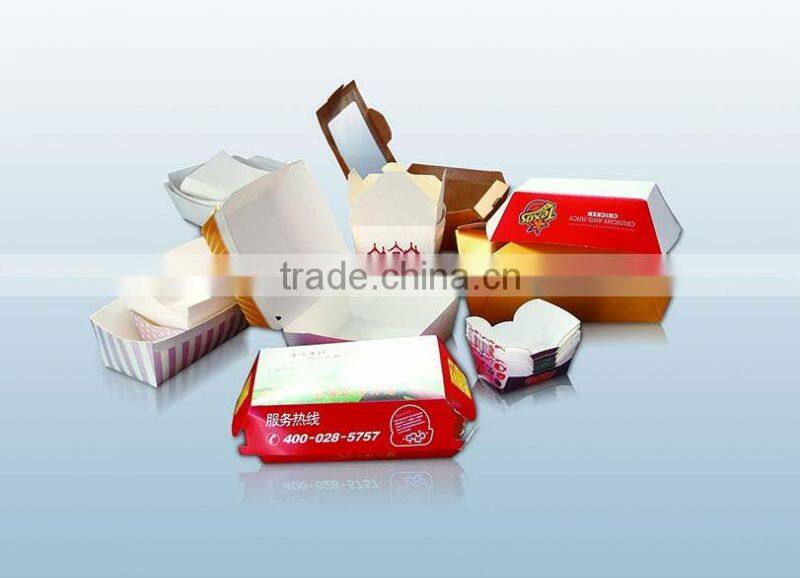

Samples Made by Burger Box Making Machine
After-sales Service
The goods should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problem. It is hard for customers to solve all the problems.
Our company will provide you good after services. We can help you solve the problem through video, email, phone.
If needed, we can also let our engineer go to your country to solve the problem. We hope all the customerwill satisfied with our machine and services.
Who We Are?
We are Ruian Victory Machinery Co., Ltd, which is a member of China Packing Technology Association. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
Our Certisfications
Note:
We can manufacturing a special one for you with your requirement!
Any comment will be welcomed!
And if you were interested in our SHB Burger Box Making Machine, welcome to contact to me!
