2-30 million sqm/yr automatic gypsum board machinery
Brief Introduction | |
| 1. Capacity: | 2 million m2/year-30 million m2/year |
| 2. Fuel: | Coal, natural gas, heavy oil and diesel oil |
| 3.Raw material: | Gypsum powder, modified starch, protective paper, foaming agent, water, etc |
| 4. Dimension: | Thickness: 7mm-22mm, Width: 1200mm/1220mm, Length :2400mm-3600mm |
| 5.Automation: | Semi degree automatic and high degree automatic |
| 6. Type: | a) Common paper surface b) Fireproof paper surface c) Waterproof paper surface |
Product Picture |
|
Production Flow |
|
Production Description |
| 1.Dosing system of gypsum board machinery |
| Dose and mix suitable of raw material to get the gypsum powder slurry. |
|
Composition: Rotary screen, bucket elevator, intermediate storage bunker, speed adjustment screw conveyor, belt measuring said, mixing machine, foaming agent machine, water supplying device, conveyor device, weighing device and electric control parts. |
|
| 2.Paper supply system |
| Provides paper to the gypsum board. |
|
Composition: The paper roll lifting machine, uncoiling device, pneumatic paper receiving machine, paper storing machine, paper pulling machine, paper guiding machine, scoring machine and automatic correction machine. |
|
| 3. Forming and solidification system of gypsum board machinery |
| To form the semi-finished gypsum board products from the gypsum powder slurry. |
|
Composition: board forming machine, vibrating forming machine, automatic vertical edge devices, frequency control forming belt, angle edge belt, up into device, belt deviation rectification device, etc |
|
| 4. Automatic cutting system of gypsum board machinery |
| Cutting the solidified plate on molding belt machine into required length. |
Composition: accelerating device, measuring device, servo cutting machine, PLC control system, etc. |
|
| 5. Transit system of gypsum board machinery |
| Horizontally transport the cut plate to distributor. |
Composition: accelerating device, horizontal transport device, plate turnover device, servo motor control system, etc. |
|

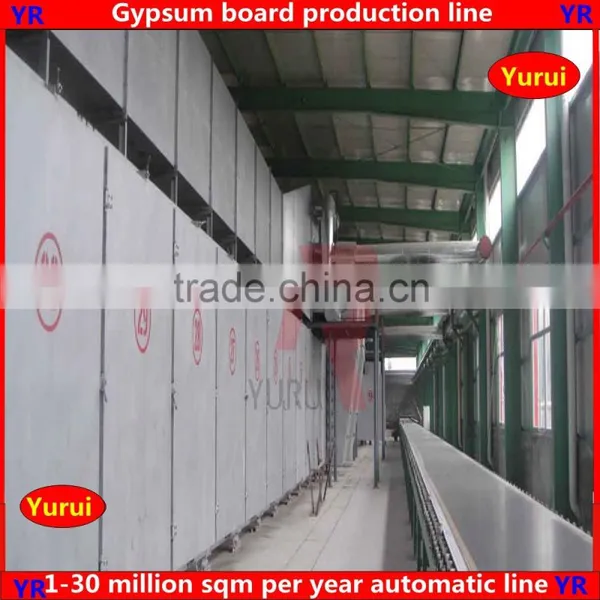

| 6. Drying system of gypsum board machinery |
| Dry the formed gypsum board. |
Composition: The main body machine including supporting roller, thermal insulation door main operating chain sprocket, amianthus bearing, circulation fan, main chain counterweight system, tubing and steam recovery system .etc |
|

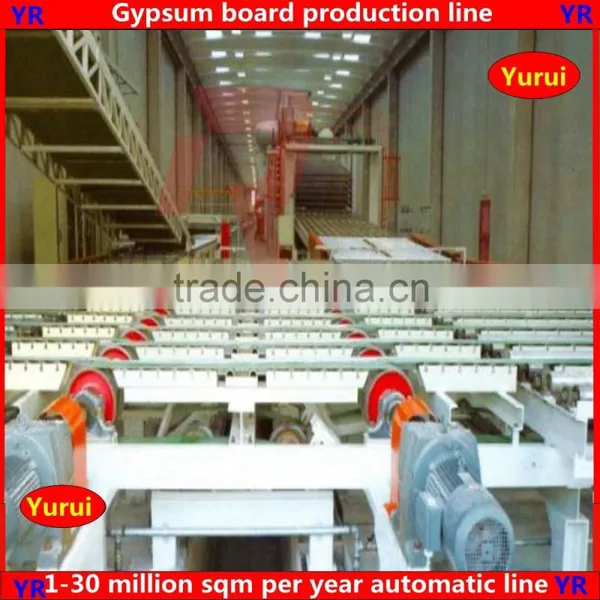

| 7. Discharging board and finished board system |
| Convey gypsum board, and cutting to get required size, then edging and stacking. |
Composition: Dustcollecting device, accurate cutting device, horizontal lifter, accelerating device, analysis& location device, distribute board horizontal transport device, distribute device, combining machine, automatic stacking machine, automatic packing machine, etc. |
|
| 8. Automation control subsidiary of gypsum board machinery |
Board in and out of the line is controlled by the PLC and the sensor automatically, has minor errors, longer life and inflexibility. The forming part adopts manual operation, adjust the speed at any moment, convenient and simple. |
| |
Packaging&Shipping |
1. 20FT/40FT/40FR standard sea and land package |
| 2. The PLC controller covered by foam film |
| 3. Spare parts and some small parts packed in box |
| 4. All Components Fixed by steel wire with Container |
FAQ |
1. Do you have sample project? |
Of course. Welcome to our sample projects in anytime. |
| 2. How to visit your company? |
|
By planefrom Beijing airport to Linyi airport (1.5 hours), from Shanghai airport to Linyi airport(1.5 hours), from Guangzhou airport to Linyi airport(2.5 hours)then we can pick you up from linyi airport. |
| 3. Do you have after sales support? |
|
Yes, we are happy to give advice and we also have skilled technicians available across the world. We can help your machines running in order to keep your business running. |
| 4. What can you do if the machine broken? |
|
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts free,if after warranty period,and we supply the technical support for the whole life of the equipment. |
| 5. Can you be responsible for transport? |
It is OK, please tell me the destination port or address.we have rich experience in transport. |
| 6. How long the machine could be made? |
Normally speaking, it is about 30-80 working days, also depends on the detail machines |
Company Information |
Shandong Yurui International is one of the subsidiary companies of Shandong Jinhu Group, who has been in construction material industry for more than 20 years, and Yurui is specialized in the exporting business with the support of advanced technology and expertise experience from Shandong Jinhu Group. Started from 1994, Shandong Jinhu Group is a comprehensive enterprise group with the business of construction material industry, chemical industry, machinery manufacturing industry, modern logistics, and real estate and so on. |
|
