Automatic gypsum board manufacturers
Brief introduction of gypsum board manufacturers
According to our more than 28 years experience and surveys from the customers., we always provide advanced technology content, high reliability ,lower operation and qualified decorate technology scheme for gypsum board film laminating machine
Main parameters and indicators of gypsum board manufacturers
1. Capacity: 2,000,000sqm~30,000,000sqm/year
2. Parameters and indicators
| length (mm) | 2400,2440,2500,2700,3000 |
| width (mm) | 1200,1220 |
| thickness (mm) | 8,9,9.5,12,12.5,12.7,15,18 |
| discrepancy of the thickness (mm) | 0±0.5 0±0.6 |
| discrepancy of the diagonal | <=5 |
| crippling load of the board | 9.5: portrait>=360 landscape orientation >=140 |
| 12: portrait >=500 landscape orientation >=180 |
Production process diagram of gypsum board manufacturers
Main equipments list introduction for gypsum board manufacturers
1.Dosing Process of gypsum board machine
Blender mixing disc adopts high wear-resistant alloy materials, 10 times service longer life than that of ordinary mixer mixing plate, reducing the maintenance cost and the manual labor intensity. The use of the advanced and efficient foaming system and measurement system is adopted to ensure the uniformity of slurry.

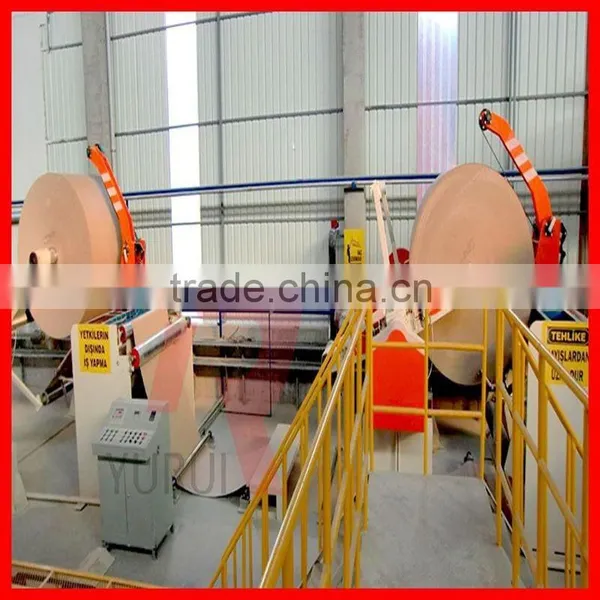

2. Paper supply system of gypsum board manufacturers
Adopting pneumatic tension bridle shaft to clamp paper rolls, improving production speed, reducing the labor intensity when manual clamping; Using paper storing machine to remove the paper folding phenomenon made by manual storing paper and reduce manual jobs; Using the paper pulling machine, do not need manual drawing paper, reducing manual jobs.
3. Mixng and forming equipment for gypsum board manufacturers
Application: to form the semi-finished gypsum board products from the gypsum powder slurry.
Molding belt machine adopts toughened glass support, strictly ensuring the smoothness of the whole forming belt, put an end to the roller forming belt jumping up and down caused by the manufacturing error, to ensure that the plasterboard secondary roughness solidification time.

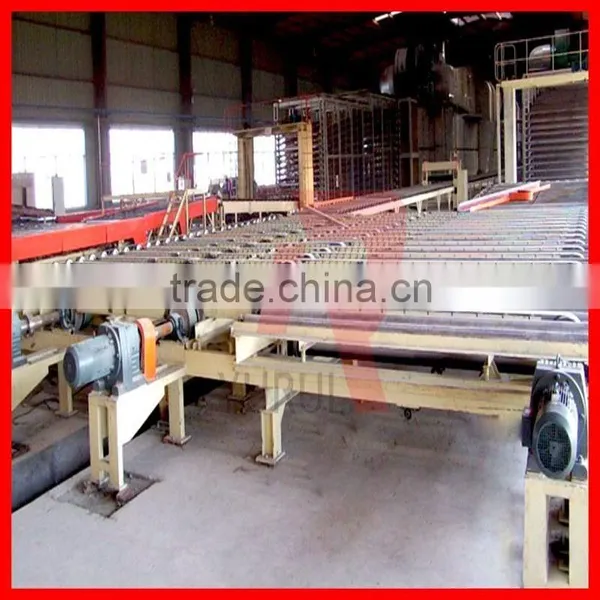

4. Cutting and transitioning system of gypsum board manufacturers
1)Transit system
Usage: used to horizontally transport the cut plate to distributor. The adopting of servo motor control ensures the precision of the position plate movement.
2)Automatic cutting system
Application: used for cutting the solidified plate on molding belt machine into required length. Maximally reducing cost by controlling the minimum edge horn size

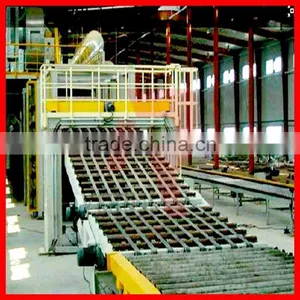

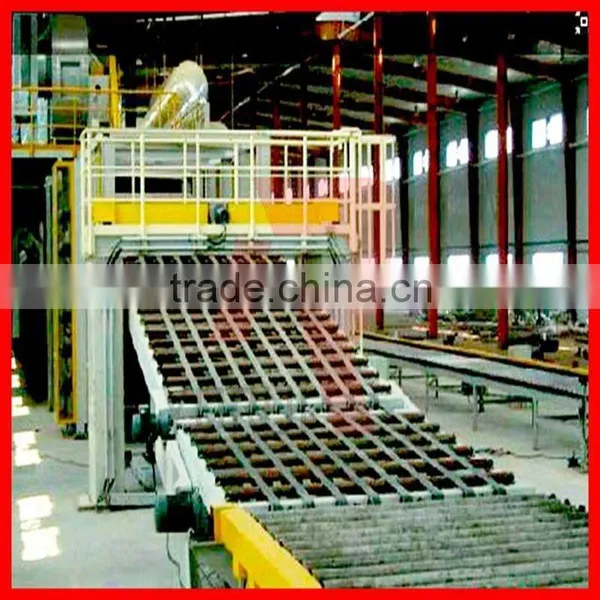

5. Distribution system of gypsum board manufacturers
Application: used to transport the wet gypsum board to each story of drying machine with the control of PLC distributor.

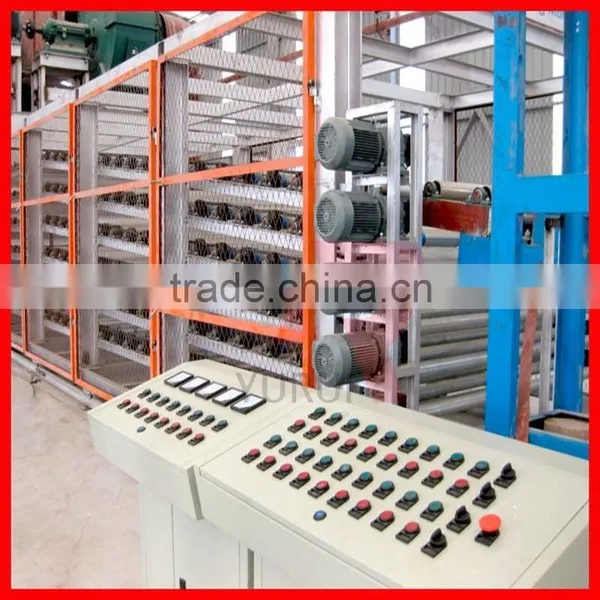

6. Drying system of gypsum board machine
The drying machine adopts heat exchange and double heat pipe, distributing temperature and air completely according to the drying characteristics of the gypsum board. The technology can dry the gypsum board under minimum energy consumption within shortest time, which is the most economic and most efficient way to dry the gypsum board.

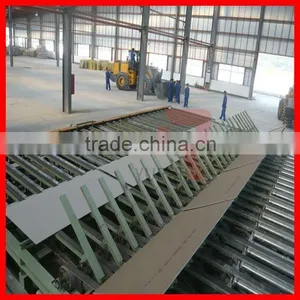

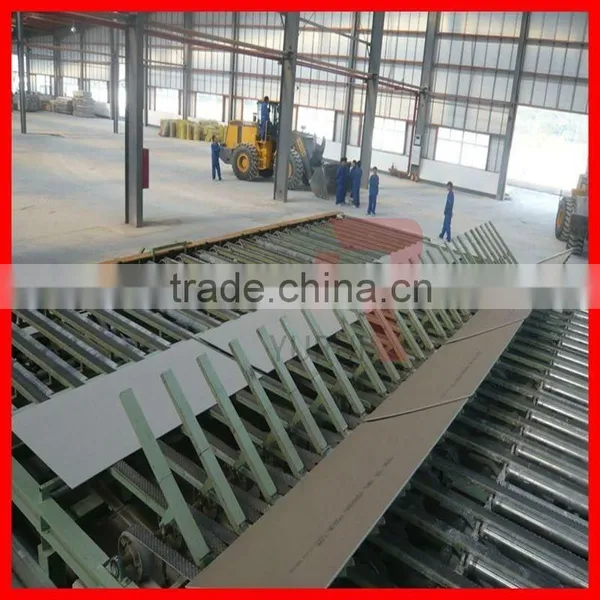

7. Discharging board and finished board system of gypsum board machine
Adopting servo motor control, ensuring the precision of the position plate movement, to adapt to the diversity of the product.
8. Heating system of gypsum board machine
Heat transfer oil boiling systems using organic heat carrier oil boiler heat, boiler heating surface is in front of the furnace radiation, both shaped by the close packed coil form; rear of this system is the convection washingheating surface, composed by serpentine bundle components.
Advantage of gypsum board machine
1. The scale of production and factory building are moderate with the current production line automation and mechanization degree
2. The gypsum board machine adopts advanced technology from Germany.
3. The gypsum board machine operates slower than 25 m/min. The circular operating speeds up to 30 ~ 40 m/min, is adapting to the supply of raw materials at present.
Warranty :Excellent easy broken parts support for buyers. Easy broken parts guarantee for one
year.
Trainning: The training is free of charge , and our engineer will be on duty to train your worker.
Installation&commissioning staff: 5-15 persons(adjustable according to the degree of automatic, and capacity )

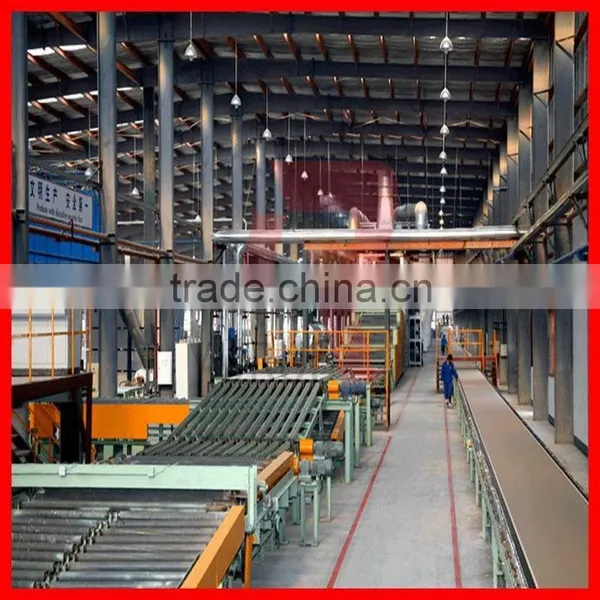

Pictures
hot air technology installation
24 hours professional service, being normalized, valued, serialized, differentiated, and beyond our contract all the time, Shandong Yurui provides the reliable projects for you.
1. We offer technical support until the workers know how to operate.
2. We offer the technology data and relative files of gypsum board film laminating machine .The operating Instruction will go to the customers with the equipment.
3. We provide lifelong guidance of gypsum board film laminating machine
4. Excellent easy-broken parts support for buyers.
About us
Shandong Yurui is a manufacturer and trade of construction machinery, specialized in the exporting business with the support of advanced technology and expertise from Shandong Jinhu Group.
1.How we work
One of the 8 branches of Shandong Jinhu Group, specialized in building machinery trading, devotion, elaboration, strictness, harmony, Shandong Yurui has been building brand with quality, and promoting credibility with services.
2.Quality
Requirements analyzing, manufacturing, inspecting, testing, installing, with perfect details in every process, Shandong Yurui promises a 100% perfect project for you.
3.Jinhu group
Starting from 1986, Shandong Jinhu Group has been in building material field for more than 28years. With spirit of “People-oriented, quality as the root, good faith, strict and careful innovation”, Jinhu Group is growing to be the leader.
