1Ton * 1600mm 24V210AH Battery Stacker

1Ton * 1600mm 24V210AH Battery Stacker thumbnail-1
1Ton * 1600mm 24V210AH Battery Stacker photo-1
US$ 3,200 - 4,300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Huize
Contact Supplier Request Quote Chat Now
Taizhou Huize Machine Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Huize
Model Number HZCDD1016-04
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1Ton
Max. Lifting Height 1600mm
Min. Lifting Height 85mm
Fork Length 1150mm
Fork Width 600mm
Overall Dimensions Length*Width*Height=2105mm*850mm*2000mm
Certification ISO9001,CE,BV
After-sales Service Provided Engineers available to service machinery overseas



1ton*1600mm  24V210AH Battery Stacker

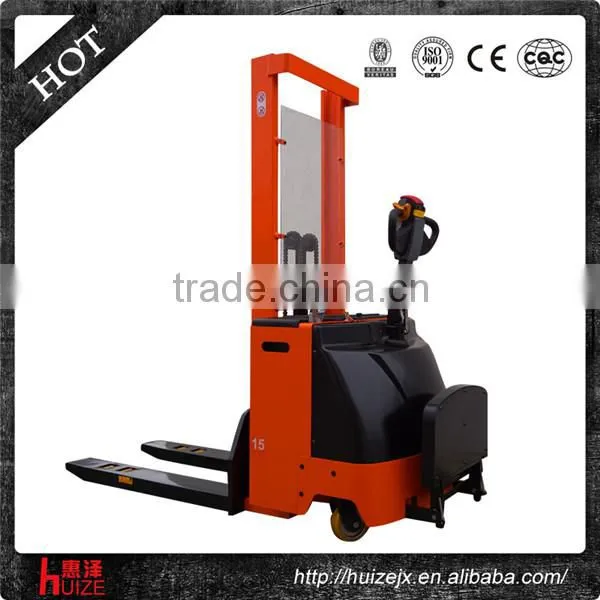

Product Picture

1Ton * 1600mm 24V210AH Battery Stacker

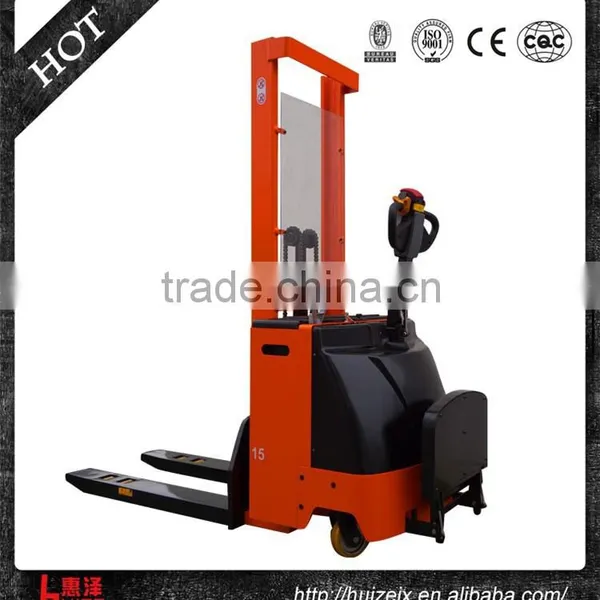

Product Accessories

1Ton * 1600mm 24V210AH Battery Stacker

1. Fork: the material is Q345 , and it is welded ,the size 600mm*1150mm

2. Straddle: Solid, the material Q345

3. Mast: the material is 16MnSiV

4.Handle: Easy Operation

5. Lifting Chain: meet 1:5 loading test

6. Polyurethane wheel: Polyurethane+ 45# solid steel

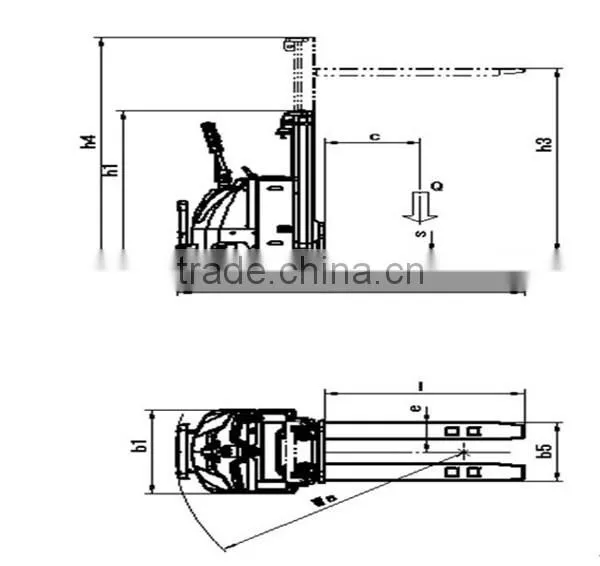

Product Drawing

1Ton * 1600mm 24V210AH Battery Stacker



Product Parameters

1.

Feature

1.1

Name



Battery Stacker

1.2

Mast



One Stage Mast

1.3

Power



Battery

1.4

Manipulation



Standing Steer Type

1.5

Braking Mode



Electromagnetic braking

1.6

Load Capacity



1000kg

1.7

Load Center



600mm

1.8

Hydro cylinder



Single

1.9

Color



Red, Yellow ,Blue ,Gray

1.10

Surface Treatment



Baking Painted

2.

Wheel

2.1

Wheel Type



Polyurethane

2.2

Driving wheel No.& Size



1pcs, φ250mm*80mm

2.3

Balance wheel No.& Size



2 pcs, φ150mm*50mm

2.4

Load Wheel No. & Size



4 pcs, Φ80mm*70mm

3.

Size

3.1

Single Fork Size



1150mm*160mm*70mm

3.2

Fork Overall Width



600mm

3.3

Overall Length



2105mm+400mm(standing platform)

3.4

Overall Width



850mm

3.5

Overall height



2000mm

3.6

Max Lifting Height



1600mm

3.7

Lowered Height



85mm

3.8

Aisle Width



900mm

3.09

Min Aisle Width for Turning Around



2600mm

3.10

Turning Radius



2200mm

4.

Performance

4.1

Traveling Speed(with/without load)



4/6 km/h

4.2

Lifting Speed(with/without load)



40/45 mm/s

4.3

Lowering Speed(with/without load)



50/45 mm/s

4.4

Gradient(with/without load)



5/8 %

4.5

Braking Length(with/without load)



500/400 mm

5.

Driving

5.1

Driving Motor



1.2 KW

5.2

 Lifting Motor



2.5 KW

5.3

Driving Control Type



Horizontal AC

6.

Battery

6.1

Battery Voltage/Capacity



24V/210AH



Large Capacity Battery has long working life.



        24V210AH Battery                         VS                         24V120AH Battery



          750 times recharge                                                       300 times recharge

          187kg weight                                                                  60kg weight

          Charger 24V30A                                                           Charger 24V15A

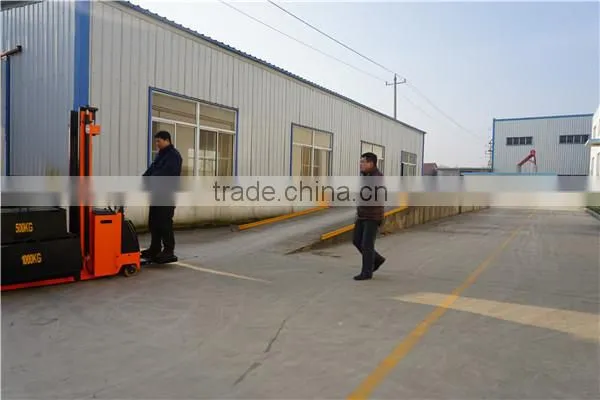

Gradient Test

1Ton * 1600mm 24V210AH Battery Stacker

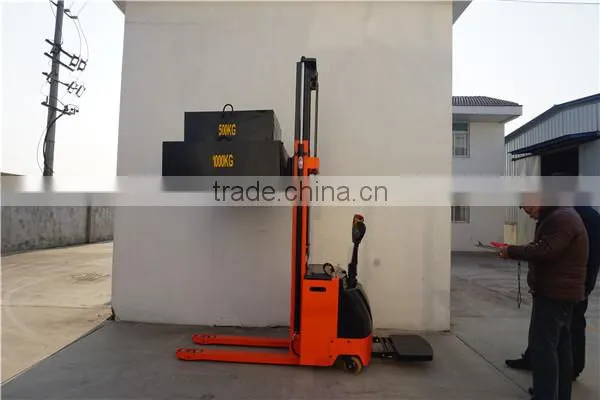

Loading Test

1Ton * 1600mm 24V210AH Battery Stacker













Quality Control

1Ton * 1600mm 24V210AH Battery Stacker



Company Information

1Ton * 1600mm 24V210AH Battery Stacker



Huize Machine Co.,Ltd is established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.

Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts.

Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc 30 countries, and we have very high reputation among all our customers

1Ton * 1600mm 24V210AH Battery Stacker1Ton * 1600mm 24V210AH Battery Stacker



FAQ



1. Q: What is your minimum order quantity?

     A: 1 Set



2. Q:What certificates do you have?

     A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.



3. Q: How to guarantee products quality?

     A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.



4.Q: What is composed of Electric Stacker?

    A: Fork,Straddle,Mast,Hydrocylinder,Driving Wheel,Power Pack,Electric Control System,Battery,Handle,etc



5. Q:Which spare parts need to be often maintained?

       A: Polyurethane,Seal components,Lifting Chain,Battery
