Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | HZ |
| Model Number: | CDD -1T | Dimension(L*W*H): | 2.2*0.9*2.2M | Certification: | CE,ISO9001,SGS.BV |
| Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

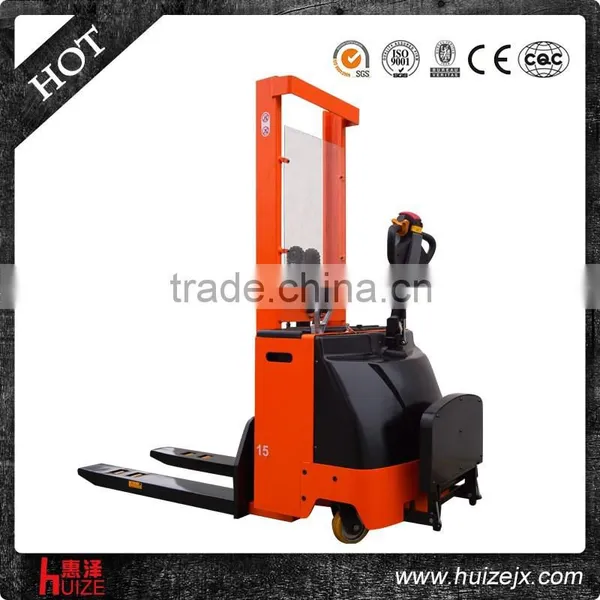

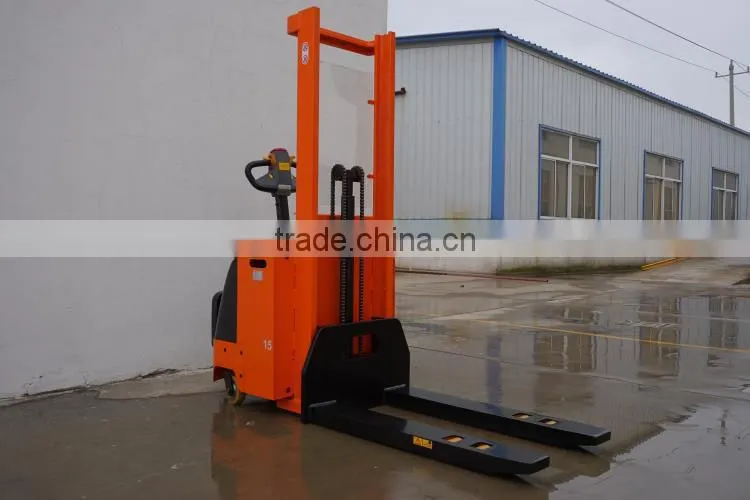

1t 1.6m standing operation electric straddle pallet stacker
picture show
product description
1.suitable for working in narrow channel and limited space
2.adopt computer program control, variable speed, steel refining wide view mast frame imported
from Germany
3.the battery can be installed and unloaded from three directions, and standing pedal is optional
product parameters
1 | Characteristic | ||
1.1 | Name |
| Full electric stacker |
1.2 | Model |
| CDD -1T |
1.3 | Mast steps |
| Single |
1.4 | Dynamic unit |
| Battery |
1.5 | Operation mode |
| Standing |
1.6 | Braking mode |
| Electromagnetic braking |
1.7 | Load capacity | Q(Kg) | 1000 |
1.8 | Load center | C(mm) | 600 |
1.9 | Hydraulic cylinder |
| Single cylinder |
1.10 | Color |
| Red, yellow, blue, gray |
1.11 | Surface treatment |
| Paint |
2 | Size |
|
|
2.1 | Lifting height | mm | 1600 |
2.2 | Fork minimum height | mm | 85 |
2.3 | Fork size | l/e/s(mm) | 1150*160*70 |
2.4 | Fork individual width | mm | 600 |
2.5 | Passage width | Ast(mm) | 900 |
2.6 | Turn around need minimum channel width | Ast(mm) | 2600 |
2.7 | Turn radius | Wa(mm) | 2200 |
3 | Driving |
|
|
3.1 | Driving wheel | Kw | 1.2 |
3.2 | Lifting motor | Kw | 2.5 |
3.3 | Battery | V/Ah | 24/120(1 group) |
3.6 | Charger |
| 24V15A |
3.7 | Electric control |
| American Curtis |
3.8 | Driving wheel type |
| Horizontal |
certification
Related products
electric counterbalanced stacker
heavy duty electric reach stacker forklift
FAQ
1.Q: What is your minimum order quantity?
A: One Set
2.Q:What certificates do you have?
A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.
3.Q: How to guarantee products quality?
A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your
QC to our factory to inspect the goods, Third, we accept the third party inspection.
4. Q:Why choose Huize factory?
A:1.Supply required products with competitive price
2.Good after sales service
3.Weclome customers visit our factory to inspect and experience products
4.Supply our professional suggestion to help customers sell and use our products
