1.5 Ton Triple Stacker Parking Lift
Our factory is a 9 years' professional customized manufacturer
Product Description
Our electric stacker has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. for load and unload, pile and move.
1.This electric reach stacker adopts double mast and chain driving technology.
2.Electric reach stacker controlling system is programmable based on the imported advanced foreign technology.
3.Stacker Moving type: electric driving and climbing to a certain gradient.
4.Electric reach stacker rising height and load can be changed as required by the customers.
5.There are complete safety equipments and their technical performance has reached the advanced level as the international product.

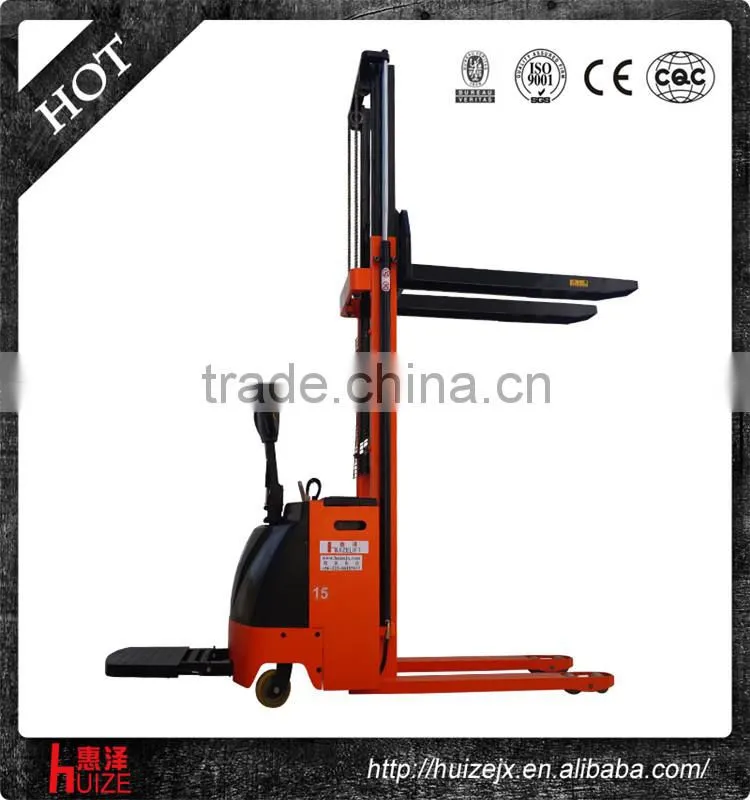

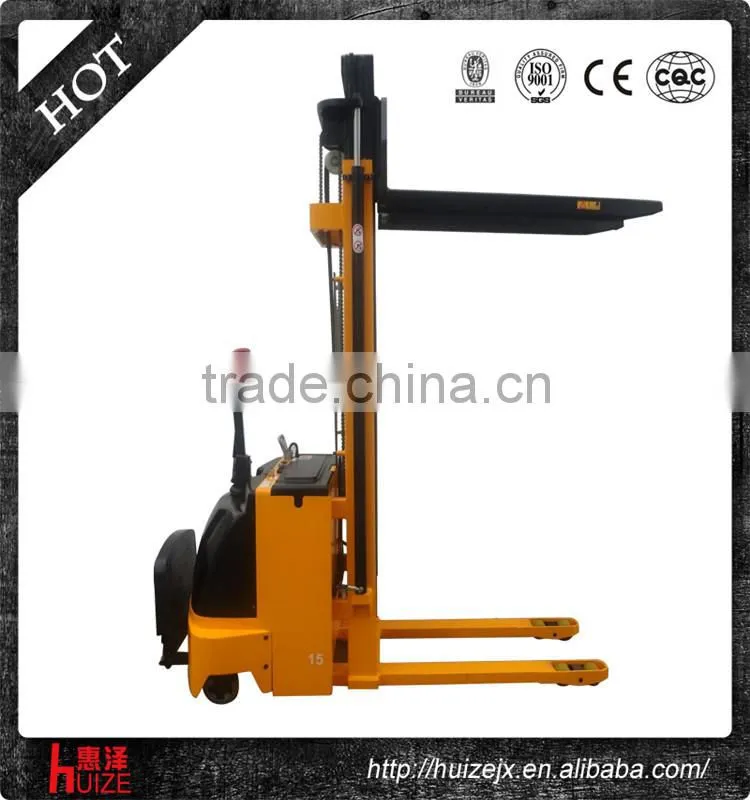

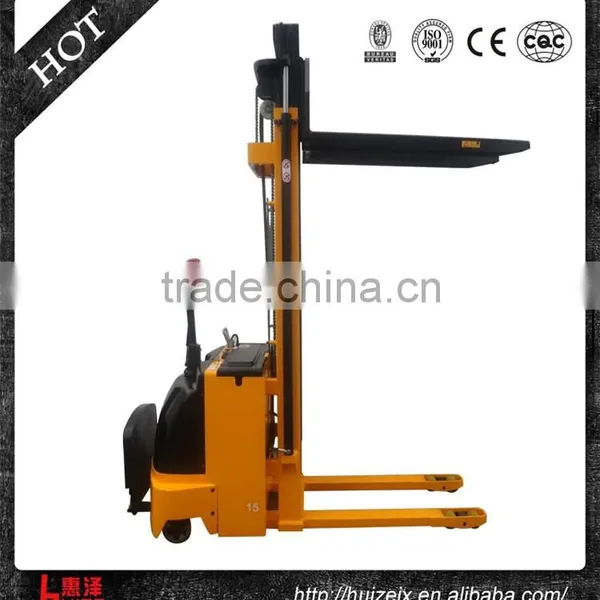

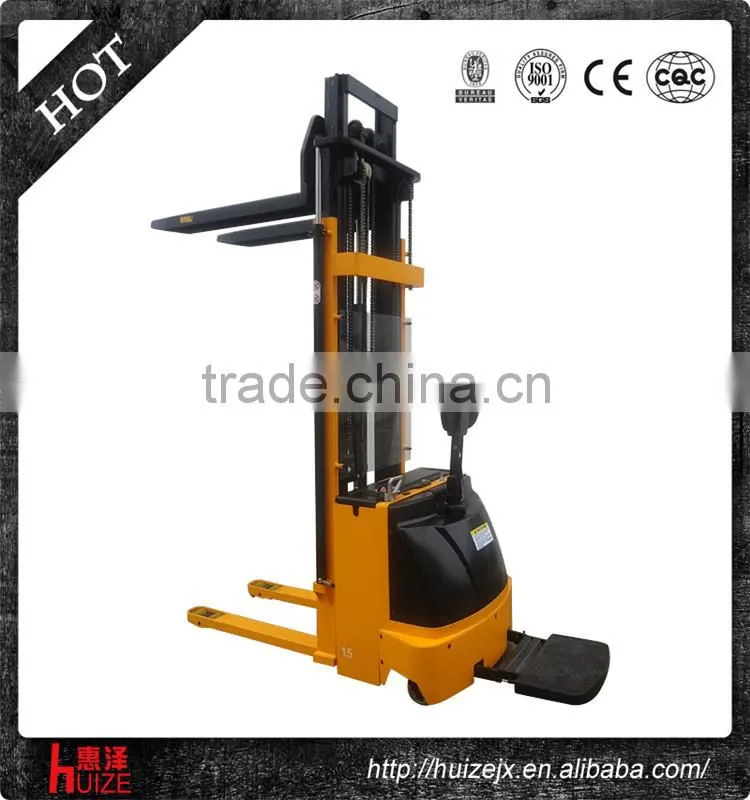

Product Picture

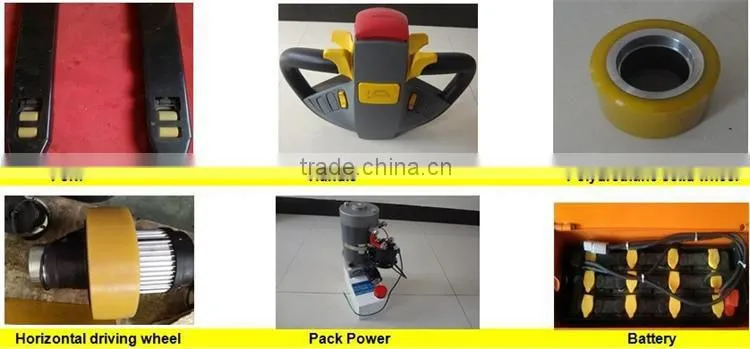

Product Accessories

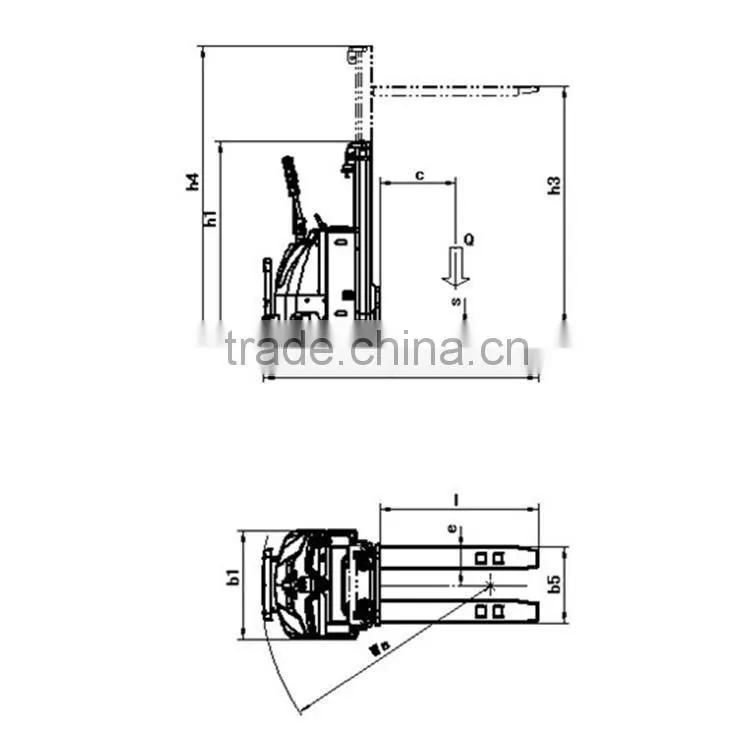

Technical Parameters
| Feature | |
| Model Number | HZCDD1052-21 |
| Mast | Triple |
| Power | Battery |
| Manipulation | Stand-on Steering |
| Braking Type | Electromagenetic |
| Rated Loading Capacity | 1.5 Ton |
| Load Center | 600mm |
| Hydrocylinder | Single |
| Color | Red,Yellow,Blue,Gray |
| Surface Treatment | Baked Paint |
| Wheel | |
| Wheel Type | Polyurethane Wheel |
| Driving wheel Size | φ250mm*80mm |
| Balance wheel Size | φ150mm*50mm |
| Load Wheel Size | φ80mm*70mm |
| Size | |
| Max. Lifting Height | 5200mm |
| Min. Lifting Height | 85mm |
| Max overall Height when max lifting height | 5700mm |
| Overall Length | 2105mm ( not including 400mm pedal) |
| Overall Width | 850mm |
| Overall Height | 2450mm |
| Min Aisle Width | 900mm |
| Min Aisle Width for Turning Around | 2600mm |
| Turning Radius | 2200mm |
| Performance | |
| Traveling Speed(full load/no load) | 4/6 km/h |
| Lifting Speed(full load/no load) | 40/45 mm/s |
| Lowering Speed(full load/no load) | 50/45 mm/s |
| Gradient(full load/no load) | 5/8 % |
| Braking Length(full load/no load) | 500/400 mm |
| Driving | |
| Driving Motor | 1.2 KW |
| Lifting Motor | 2.5 KW |
| Battery Voltage/Capacity | 24V/210AH |
| Recharging Times of Battery | 750 Times |
| Weight of Battery | 187kg |
| Charger Spec | 24V30A |
| Package | |
| Packing | Bubble Wrapping + Iron Pallet |
| Qty of 20' container | 8 sets |
| Qty of 40' container | 16 sets |
The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products
Certificates
Workshop Show
Company Introduction
Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Battery Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.
We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.
Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands
Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.
FAQ
1. Q: What is your minimum order quantity?
A: One Set
2. Q:What certificates do you have?
A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.
3. Q: How to guarantee products quality?
A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.
4. Q:Why choose Huize factory?
A: 1.Supply required products with competitive price
2.Good after sales service
3.Weclome customers visit our factory to inspect and experience products
4.Supply our professional suggestion to help customers sell and use our products better
