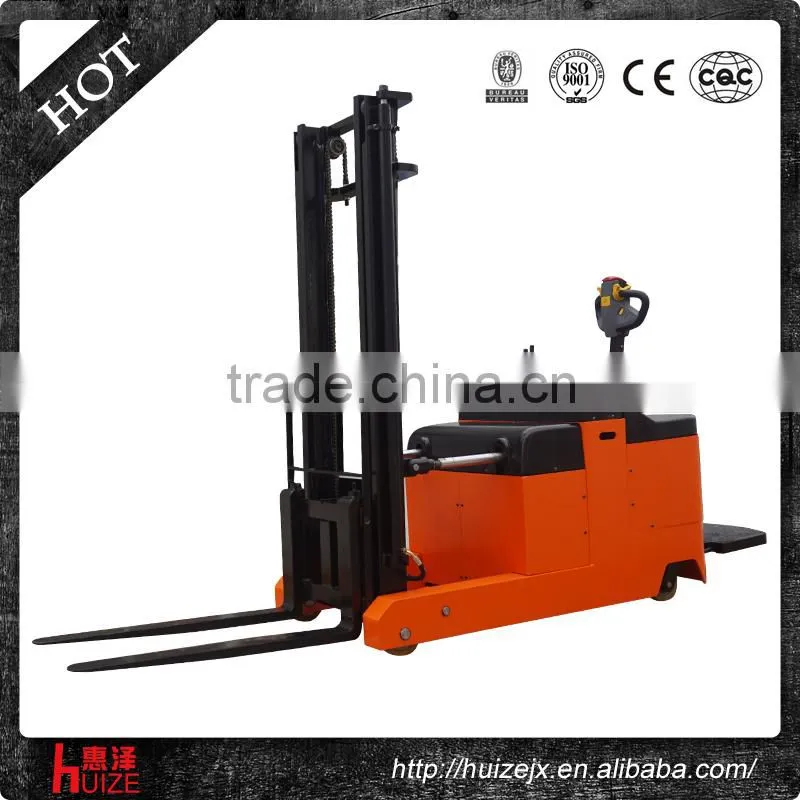

2015 China 1T 3300MM Lifting Height New Electric Reach Stacker

US$ 6,500 - 7,100 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Contact Supplier Request Quote Chat Now

Taizhou Huize Machine Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name HZ

Certification CE ISO9001 BV

After-sales Service Provided Engineers available to service machinery overseas

2015 China 1T 3300MM lifting height new electric reach stacker

pallet truck|stacker|forklift|

1.Product drawing

2.Main technical specifiations

5-ORDERNo60005-HUIZEMODELHZCQD1033-05PRODUCT CODE			CQD1033-S_Z-WAC0-D-210-600*1070D
1	Characteristic
1.1	Name		Reach full electric stacker
2.1	Model		HZCQD1033-05
3.1	Mast series		Double
4.1	Dynamic form		Battery
5.1	Operation type		Standing
6.1	Load capacity	Q(Kg)	1000
7.1	Load center	C(mm)	550
8.1	Hydraulic cylinder		Double
9.1	Color		Red, yellow, blue, gray
10.1	Surface treatment		Paint
2	Application
11.2	Main application		Handle, load and stack in the warehouse and workshop
3	Wheel
12.3	Wheel material		Polyurethane
13.3	The number of driving wheel / balance wheel /loading wheel		1/2/2
4	Size
14.4	Lifting height	h(mm)	3300
15.4	Fork minimum height	h(mm)	30
16.4	Overall height when fork up to maximum height	h(mm)	3500
17.4	Overall length	L(mm)	3470
18.4	Overall width	b(mm)	1000
19.4	Fork size	l/e/s(mm)	107010038
20.4	Fork overall width	b(mm)	200~600
21.4	Overall height	h(mm)	2250
22.4	Reach distance	l(mm)	500
23.4	Rake angle	β	3°
24.4	Inclined angle	α	5°
25.4	Front wheel size	mm	φ178*80
26.4	Driving wheel size	mm	φ250*80
27.4	Balance wheel size	mm	φ150*50
28.4	Channel width	Ast(mm)	1100
29.4	Minimum channel width truck turning around	Ast(mm)	4000
30.4	Turning radius	Wa(mm)	3800
5	Performance
31.5	Walking speed, loaded / unloaded	Km/h	4/6
32.5	Lifting speed, loaded / unloaded	mm/s	60/65
33.5	Falling speed, loaded / unloaded	mm/s	100/70
34.5	Climbing gradient, loaded/unloaded	%	5/8
35.5	Braking distance, loaded / unloaded	mm	500/350
6	Driving
36.6	Driving motor power	KW	1.2
37.6	Lifting motor power	KW	2.5
38.6	Battery voltage / capacitor	V/Ah	24/210
39.6	Battery repeated charging times		750
40.6	Battery weight	Kg	187
41.6	Charger specification		24V/30A
42.6	Driving control type		AC
43.6	Driving wheel type		Horizontal
7	Weight
44.7	Gross weight (including package) / net weight	Kg	1168/1165
8	Production and delivery
45.8	Monthly production capacity	Set	80
46.8	Delivery time per one set	Day	10
47.8	Delivery time per ten sets	Month	1
9	Packaging and transport
48.9	Packing method		Overall packaging
49.9	Packaging		Angle iron + bubble wrap
50.9	Package size	L/B/H(m)	31.22.4
51.9	Charger package size	L/B/H(mm)	470190210
52.9	Matching boxes of each product		2
53.9	Number of 20-foot containers	Set	8
54.9	Number of 40-foot containers	Set	16
10	Others
55.10	Product certification		CE
56.10	Product declaration name		Electric stacker
57.10	FOB Shanghai	USD/set	7100.00
58.10	HS code		8428909090

3.Factory profile

4.Certification:

5.FAQ

1)Q:What is the minimum order quantity?

A:Taizhou Huize Machine Co.,Ltd specialized in all kinds of pallet truck,stacker,forklift,cran,boom lift,

platform and drum truck.The minimum order is 1 pc.

2)Q:What is the production and delivery time?

A:25 days after receiving the first T/T/1*40''HQ.

3)Q:Can we use our own shipping agent ?

A:Yes,all customers can use their own shippng agent,but we advice you use our factory shipping agent.

Because we have been cooperated with the shipping company for 8 years,the cost is lower .

4) Q:Can we mix the 20ft container ?

A: Yes,you can mix it,you can mix less than 3 models in a 20FT container and 4 models in a 40FT or 40

HQ container.

5)Q:Do you have ISO system?

A:Yes, we have CE,BV,ISO9000,ISO9001 certification.

6)Q:what terms of payment you can accept?

A:We advice you choose :T/T30% deposit,or L/C at sight

7)Q:Are there any discounts for bulk orders?

A:Of course,different quantities with different prices.

8)Q: How to check quality?

A:China huize fork lift company advice all customers use your own QCS and we welcome your arrival .

Our QCS can also offer assistance and checking report if you need.
