2 Ton Electric Pallet Truck With Protection Armrest

FOB Price

US$ 3,500 - 4,300 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	HUIZE	Model Number	HZCBD20A-03
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	2 Ton	Max. Lifting Height	200mm
Min. Lifting Height	85mm	Fork Length	1150mm
Fork Width	550mm	Overall Dimensions	2250mmx800mmx1500mm
Certification	BV,ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

2 Ton Electric Pallet Truck with Protection Armrest

We Supply one-stop service from design to lifetime maintenance

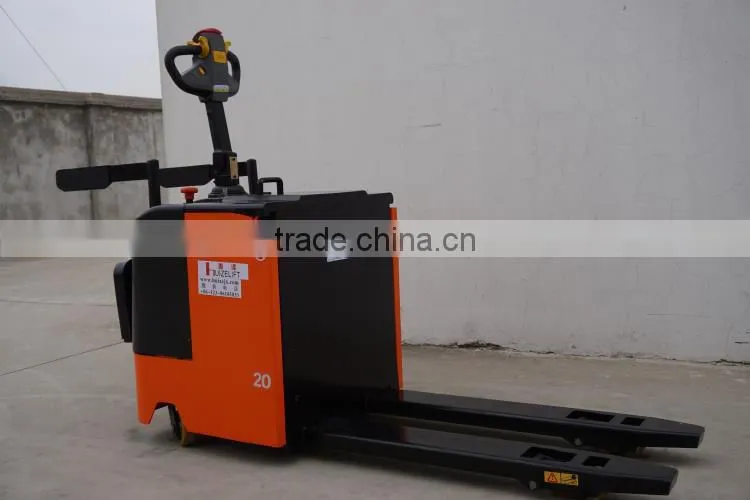

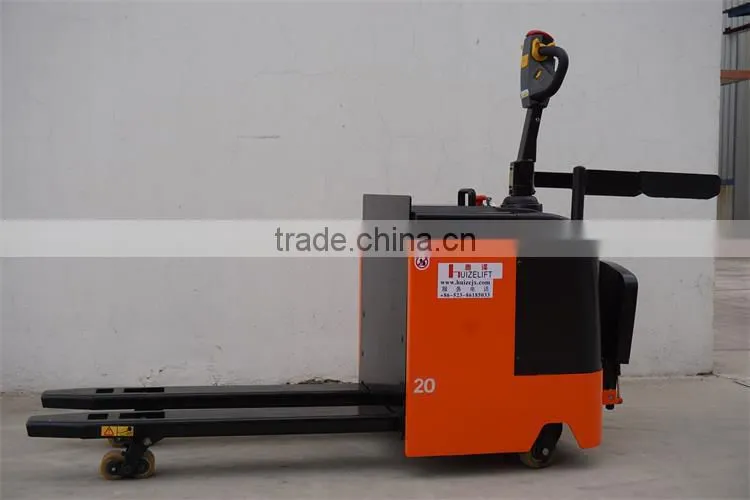

Product Pictures

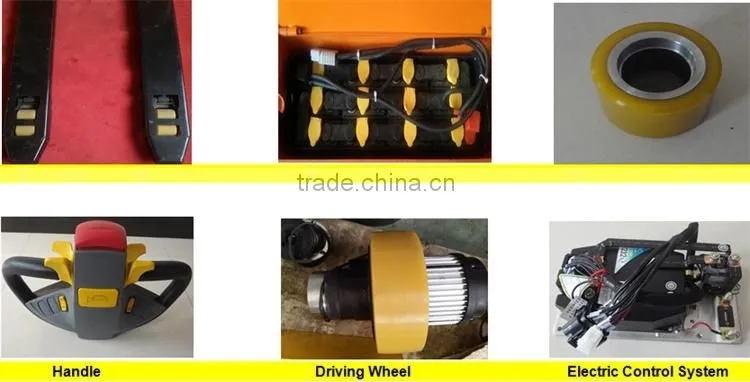

Main Product Parts

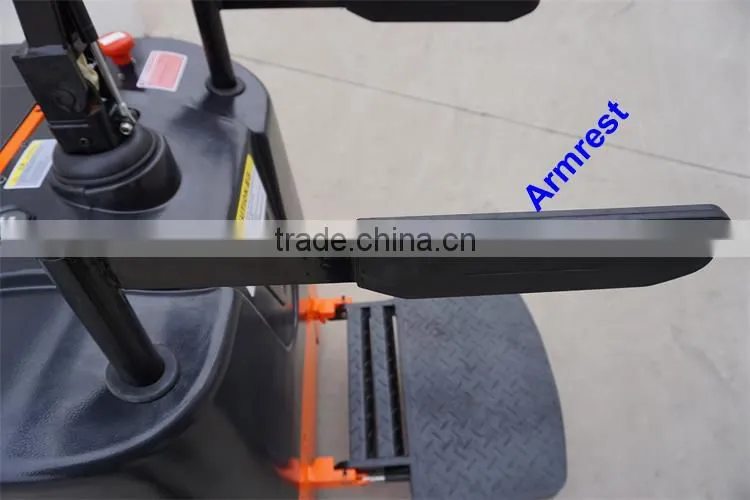

Armrest

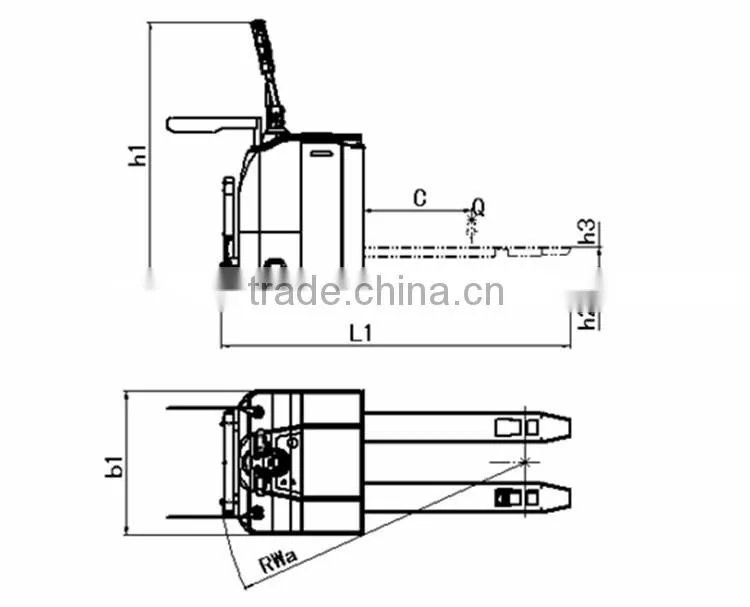

Technical Parameters

Characteristics
Product Name	2 Ton Electric Pallet Truck
Loaded Capacity	2 Ton
Max Lifting Height	115mm
Min Lowering Height	85mm
Load Center	600mm
Battery Voltage & Capacity	24V & 165AH
Wheel Type	Polyurethane
Brake Type	Electromagnetic Braking
Fork
Fork Type	Bent
Fork Material	Q345 Steel
Fork Size	1150mmx550mm
Fork Thickness	6mm
Performance
Driving Speed ( full load/no load)	4/6 km/h
Lifting Speed ( full load/no load)	40/45 mm/s
Lowering Speed( full load/no load)	50/45 mm/s
Gradient ( full load/no load)	5%/8%
Braking Distance ( full load/no load)	500mm/350mm

Net Weight	660kg

Factory Workshop

Certificate

After Service

1. For end users, we can supply video for maintenance, within 1 year, we supply spare parts for free,and over 1 year, just collet cost.

2. For distributors, we will build a service center in your country to supply service for you.
