Pedestrian Powered Pallet Truck
Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck
Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck
One-Stop Material Handling Solutions
Create same and more value than other suppliers at lower price
Production Descirption
1. Fork Material: Q345, Thickness 50mm
2. Add thick rib reinforcement under fork
3. When lifting, just fork is up, battery box is fixed
4.Easy and nimble operating handle
5.Two side wings protect operator safe
Product Pictures
Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck
Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck
Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck
Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck, Electric Pallet Truck
Product Details

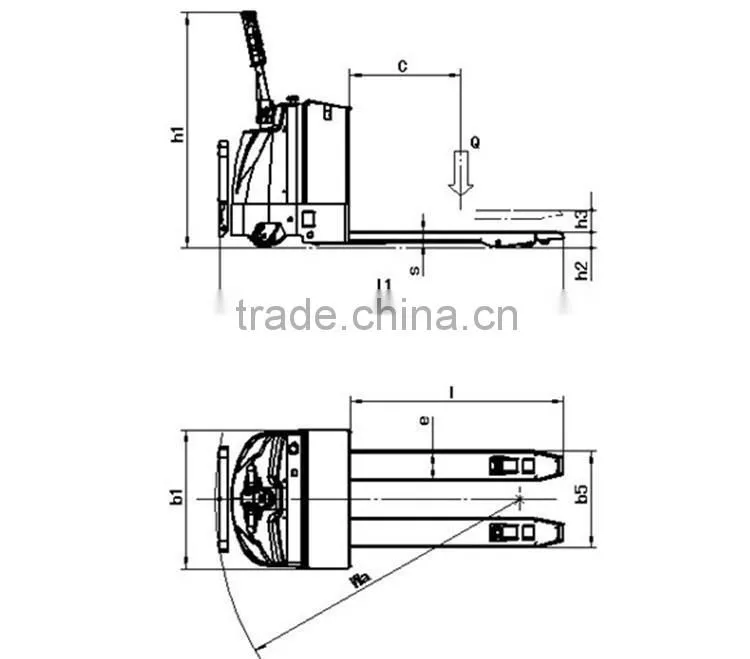

Technical Parameter
Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck
| Feature | ||
| Rated Loading Capacity | 1 Ton | |
| Load Center | 600mm | |
| Power | Battery | |
| Surface Treatment | Baked Paint | |
| Wheel | ||
| Driving wheel Size | φ250mm*80mm | |
| Balance wheel Size | φ125mm*50mm | |
| Load Wheel Size | φ80mm*70mm | |
| Size | ||
| Max Lifting Height | 115mm | |
| Min Lowered Height | 85mm | |
| Overall Length | 2250mm | |
| Overall Width | 800mm | |
| Overall Height | 1500mm | |
| Aisle Width(with 1000*1200mm pallet) | 1100mm | |
| Aisle Width(with 800×1200mm pallet) | 900mm | |
| Min Aisle Width for Turning Around | 2200mm | |
| Turning Radius | 1900mm | |
| Performance | ||
| Traveling Speed(with/without load) | 4/6 km/h | |
| Lifting Speed(with/without load) | 45/50 mm/s | |
| Lowering Speed(with/without load) | 50/45 mm/s | |
| Gradient(with/without load) | 5/8 % | |
| Braking Length(with/without load) | 500/350 mm | |
Quality Control & Certificates
Strict Quality Control: 48 hours 100% inpsection of electronic parts test,100% Quality Control before delivery,includin Noisy,Driving,Lifting,and Welding Inspection.
Huize Quality has been accepted by world market, 8 world famous brand names are cooperating with Huize.
Why Choose Huize?
1. Full range products, High-Quality and economic models are both available from Huize,we have resources to help our partners to open the market easily
2. Huize has a whole set of failure predication,repair,maintenance data which will reduce 60% of the dealer's after-sale service cost.
3. Fast. Fast delivery time, Fast service and communication.
Within one hour Huize will respond and within 3 hours we will offer the solution
Less than 15 days standard delivery time for electric products
4. We don't ask more though we do much better! We offer reasonable price level!
5. We are honest and straightforward at work because that is the way we are in our homes, we keep loyal to our partners
Production Process
Company Introduction
Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Electric Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.
We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.
Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands
Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck
Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.
