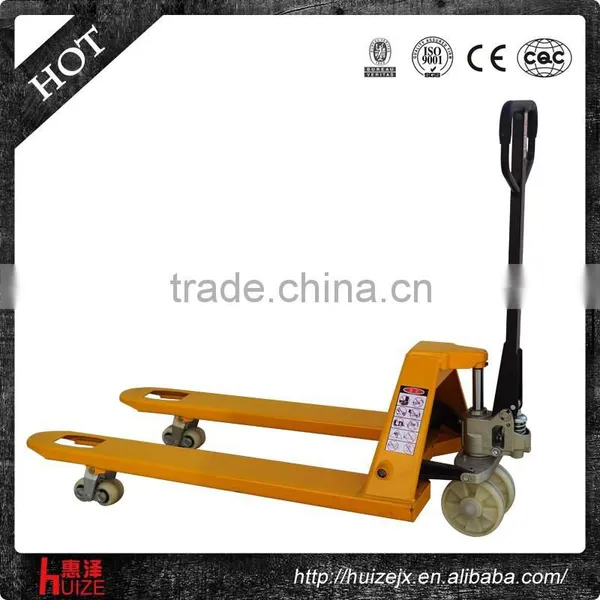

1 ton manual hand pallet jack
Product description 1 ton manual hand pallet jack
1.Our manual pallet truck is designed for heavy goods,the major working parts are fitted with wearable rider ring, plastic- coated surface.
2.Small hydraulic systems is Operated simply and easily.
3.Handle can easily lift ,carry and put down.
4.Cast-in-one oil cylinder is made of high quality steel plate(firm and durable).
5. Chrome plated piston rod can control speed ideally.
6.We can customize according to clients requirements.
Characteristic | |||
1.1 |
Name |
|
1 ton manual hand pallet jack |
2.1 |
Model |
|
HZCBY10-04 |
3.1 |
Operation type |
|
hand |
4.1 |
Load capacity |
Q(Kg) |
1000 |
5.1 |
Load center |
C(mm) |
650 |
6.1 |
Hydraulic cylinder |
|
Cast-in-one |
7.1 |
Color |
|
Red, yellow, blue, gray and so on manual pallet truck |
8.1 |
Surface treatment |
|
Spray |
Size | |||
1 |
Lifting height |
mm |
115 |
2 |
Fork minimum height |
(mm |
85 |
3 |
Overall length |
mm |
1620 |
4 |
Overall width |
mm |
685 |
5 |
Fork size |
l/e/s(mm) |
1220*160*50 |
6 |
Fork overall width |
mm |
685
|
7 |
Overall height |
mm |
1230 |
8 |
Front wheel size |
mm |
φ80*70 |
9 |
Rear wheel size |
mm |
φ180*50 |
10 |
Channel width, with 1000×1200 pallet |
Ast(mm) |
1100 |
11 |
Channel width, with 800×1200 pallet |
Ast(mm) |
900 |
12 |
Minimum channel width truck turning around |
Ast(mm) |
1900 |
13 |
Turning radius |
Wa(mm) |
1600 |
Packing and shipping | |||
1 |
packing method |
|
Packaging as a whole |
2 |
packing |
|
Angle iron + bubble wrap |
3 |
packing size |
L/B/H(m) |
1.66*0.7*1.5 |
5 |
How many boxes does each product have |
|
1 |
6 |
Number of 20-foot containers |
set |
188 |
7 |
Number of 40-foot containers |
set |
412 |
Others | |||
1 |
Specify product certification |
|
CE,SGS,BV,ISO90001 |
2 |
Name of customs declaration |
|
manual pallet truck |
3 |
FOB |
|
shanghai |
4 |
HS code |
|
8428909090 |
QA&Testing 1 ton manual hand pallet jack
To ensure security and quality ,our manufacturer will test 1 ton manual hand pallet jack before the sales.
Certifications 1 ton manual hand pallet jack
Applications 1 ton manual hand pallet jack
and some other places(Workshop,Warehouse,Airport, Railway Station ,shipyard and so on) where need to carry and shift.
Workshop 1 ton manual hand pallet jack
Our service 1 ton manual hand pallet jack
F.A.Q 1 ton manual hand pallet jack
1.Q:Does your factory have favorable?
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
