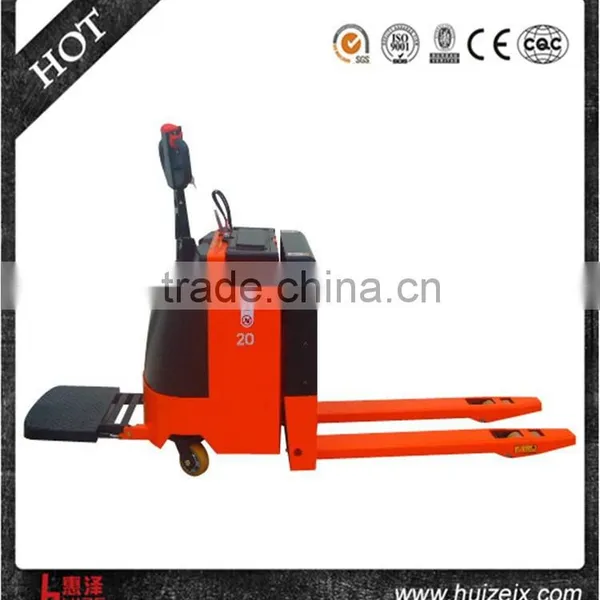

Electric Power Ride On Jack Pallet Truck

Electric Power Ride On Jack Pallet Truck thumbnail-1
Electric Power Ride On Jack Pallet Truck photo-1
US$ 3,000 - 4,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HUIZE
Contact Supplier Request Quote Chat Now
Taizhou Huize Machine Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HUIZE
Model Number HZCDD20A-08
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 2Ton
Max. Lifting Height 200mm
Min. Lifting Height 85mm
Fork Length 1150mm
Fork Width 550mm
Overall Dimensions 2250x850x1500mm
Certification CE,BV
After-sales Service Provided Engineers available to service machinery overseas

Electric Power Ride On Jack Pallet Truck



One-Stop Warehouse Handling Solutions



Product Character

Character Function
Front Wheel and Rear Wheel
Load Bearing 		make pallet truck driving more steady
Adjusting Driving Wheel
with shock-absorbing spring 		enlarge the friction force to avoid slipping
Hardened & Tempered
45# Steel Push Rod 		make push rod keep its shape even if over impact force







Application

1. FOR FOOD FACTORY

2. FOR TEXTILE FACTORY

3. FOR MEDICAL FACTORY

4. FOR PLASTIC FACTORY

5. FOR CHEMICAL FACTORY

6. FOR ARRICULTURE FACTORY

ALL THE INDUTRIES



Certificate

CE Certificate

Executive Standard:

EN12100-1:2003+A1:2009, EN12100-2:2003+A1:2009

EN1726-1:1999,EN60204-1:2006+A1:2009

Electric Power Ride On Jack Pallet Truck









Photos

Electric Power Ride On Jack Pallet TruckElectric Power Ride On Jack Pallet TruckElectric Power Ride On Jack Pallet Truck







Product Accessories

Electric Power Ride On Jack Pallet Truck











Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck

Technical Parameter

Feature
Rated Loading Capacity   2 Ton
Load Center
600mm
Power   Battery
Manipulation   Stand-on Steer Type
Pump Hydrocylinder   Double
Surface Treatment   Baked Paint
Wheel
Wheel Type   Polyurethane Solid Wheel
Driving wheel Size   φ250mm*80mm
Balance wheel Size   φ125mm*50mm
Load Wheel Size   φ80mm*70mm
Size
Max Lifting Height   115mm
Min Lowered Height   85mm
Overall Length   2250mm
Overall Width   800mm
Overall Height   1500mm
Aisle Width(with 1000*1200mm pallet)   1100mm
Aisle Width(with 800×1200mm pallet)   900mm
Min Aisle Width for Turning Around    2200mm
Turning Radius   1900mm
Performance
Traveling Speed(with/without load)   4/6 km/h
Lifting Speed(with/without load)   45/50 mm/s
Lowering Speed(with/without load)   50/45 mm/s
Gradient(with/without load)   5/8 %
Braking Length(with/without load)   500/350 mm




 Our Service

24 hours online service

Enquiry will be replied in 2 hours

One year warranty

1%-2%Spare Parts

OEM and DEM are available

Free parts for any breakdown with convincing evidence



Company Introduction

Electric Power Ride On Jack Pallet Truck

Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Electric Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.

We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.

Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands

 Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck

Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.

Electric Power Ride On Jack Pallet TruckElectric Power Ride On Jack Pallet Truck



Electric Power Ride On Jack Pallet TruckElectric Power Ride On Jack Pallet Truck

Strict Quality Control: 48 hours 100% inpsection of electronic parts test,100% Quality Control before delivery,includin Noisy,Driving,Lifting,and Welding Inspection









FAQ



Q:What's my consideration when i choose an electric pallet truck?

A:  -The weight of goods.

     -The Battery Capacity you require.

Q:What are the benefits of being a Huize Pallet Truck distributor?

A: - Special discount .

     - Marketing protection.

     - Priority of launching new design.

     - Point to point technical supports and after sales services.

Q: How can i become a distributor of Huize?

A:  Contact us immediately for further details by sending us an inquiry.

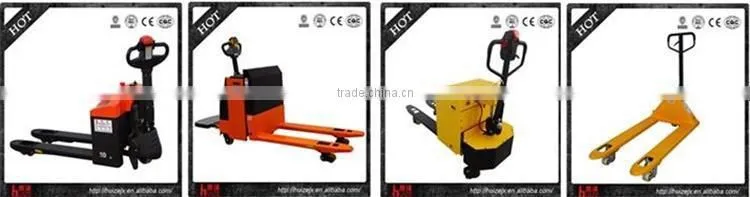

Other Related Pallet Truck
