Huize New Product Full Electric Pallet Inverter
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Huize | |
| Model Number | HZFS-1.6T | After-sales Service Provided | No overseas service provided |
Product Description

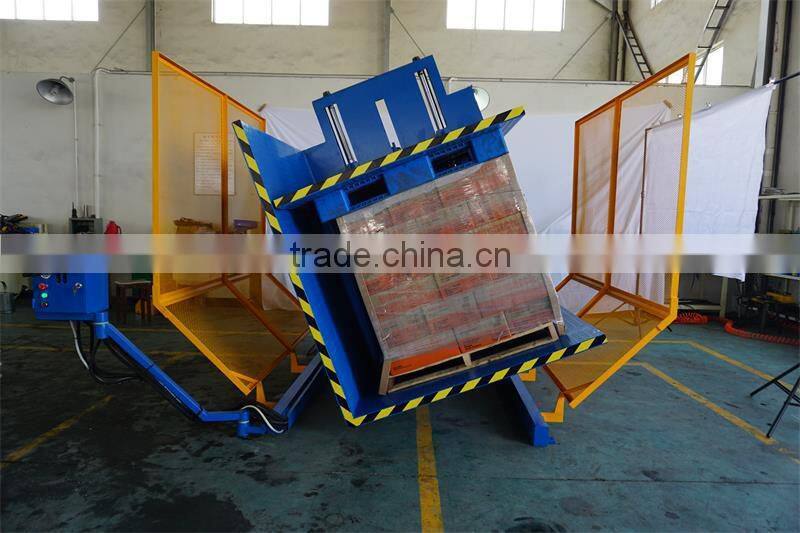

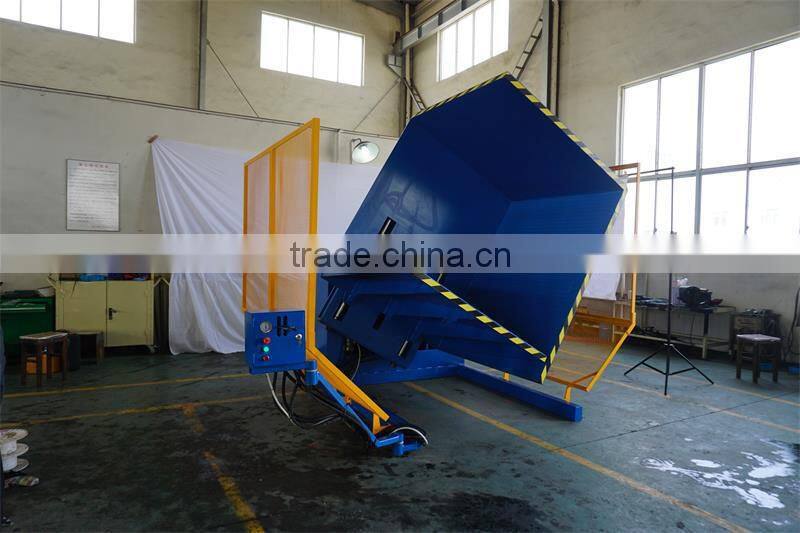

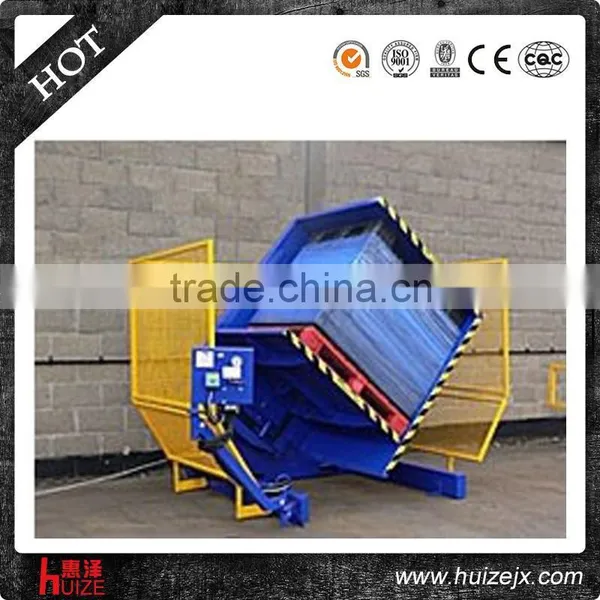

Huize New Product Full Electric Pallet Inverter
1.1 | Name |
| Pallet Inverter |
2.1 | Model |
| HZFS-1.6T |
3.1 | Dynamic form |
| Three-phase 380V battery |
4.1 | Operation type |
| Electric control |
5.1 | Load capacity | Q(Kg) | 1600 |
6.1 | Load center | C(mm) | 600 |
7.1 | Hydraulic cylinder | piece | 2 |
8.1 | Clamping way |
| Hydraulic clamp |
9.1 | Flipping way |
| Hydraulic flip |
10.1 | Control mode |
| Bottom to move |
11.1 | Color |
| Yellow blue |
12.1 | Surface treatment |
| Paint |
13.1 | Electric pump | KW | 3 |
2 | Application | ||
14.2 | Main application |
| Pallet convert, flip objects in the warehouse and workshop |
3 | Size | ||
15.3 | Lifting height | mm | 400 |
16.3 | Overall length | mm | 1800 |
17.3 | Overall width | mm | 2000 |
18.3 | Pallet size | mm | 1200*1200 |
19.3 | Flipper length | mm | 1400 |
20.3 | Flipper width | mm | 1400 |
21.3 | Overall height | mm | 1000 |
22.3 | Flipping angle | ° | 180 |
4 | Performance | ||
23.4 | Lifting speed, loaded / unloaded | mm/s | 45/50 |
24.4 | Falling speed, loaded / unloaded | mm/s | 50/45 |
Backed by almost a decade industry experience, our factory - Taizhou Huize Machine Co.,Ltd is a professional manufacturer of all kinds of quality material handing equipments.
We endeavor to be a one-stop solution to all your Material Handling Equipments needs, ranging from hand pallet trucks, stackers, battery reach trucks/forklifts and diesel forklifts.
If you have some questions just free free to contact us by the following ways:
Contact: Ms Jona Zhu
Email id : sales11( @ )
Skype: Jona Zhu (HuiZe-Forklift)
Mobile: +86-18018292279
