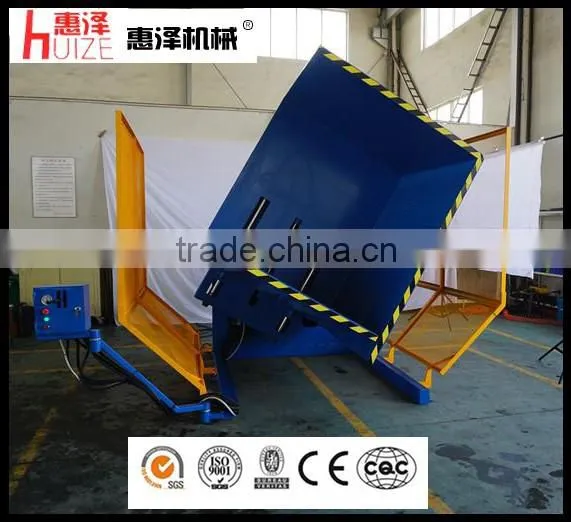

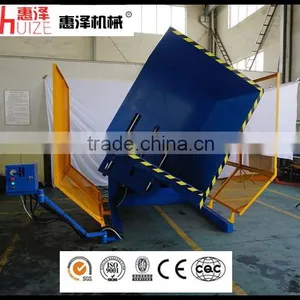

China New Style Electric Pallet Changer Pallet Inverter

1.1

Name

Pallet Inverter

2.1

Model

HZFS-1.6T

3.1

Dynamic form

Three-phase 380V battery

4.1

Operation type

Electric control

5.1

Load capacity

Q(Kg)

1600

6.1

Load center

C(mm)

600

7.1

Hydraulic cylinder

piece

2

8.1

Clamping way

Hydraulic clamp

9.1

Flipping way

Hydraulic flip

10.1

Control mode

Bottom to move

11.1

Color

Yellow blue

12.1

Surface treatment

Paint

13.1

Electric pump

KW

3

2

Application

14.2

Main application

Pallet convert, flip objects in the warehouse and workshop

3

Size

15.3

Lifting height

mm

400

16.3

Overall length

mm

1800

17.3

Overall width

mm

2000

18.3

Pallet size

mm

1200*1200

19.3

Flipper length

mm

1400

20.3

Flipper width

mm

1400

21.3

Overall height

mm

1000

22.3

Flipping angle

°

180

4

Performance

23.4

Lifting speed, loaded / unloaded

mm/s

45/50

24.4

Falling speed, loaded / unloaded

mm/s

50/45
