Rated Weight 300kg Lifting Height 4m Hydraulic Scissor Lift Platform

US$ 1,580 - 1,700 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

HZSJY0304-01

Taizhou Huize Machine Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name HZ

Model Number HZSJY0304-01

Lift Mechanism Scissor Lift

Lift Drive / Actuation Electric Motor

Power 1.1kw

Rated Loading Capacity 300kg

Min. Lifting Height 850m

Max. Lifting Height 4m

Table Size 1700*850mm

Overall Dimensions 1.8*1*0.9m

Weight 306/300KG

Certification CE, SGS, ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

rated weight 300kg lifting height 4m hydrulic scissor lift platform

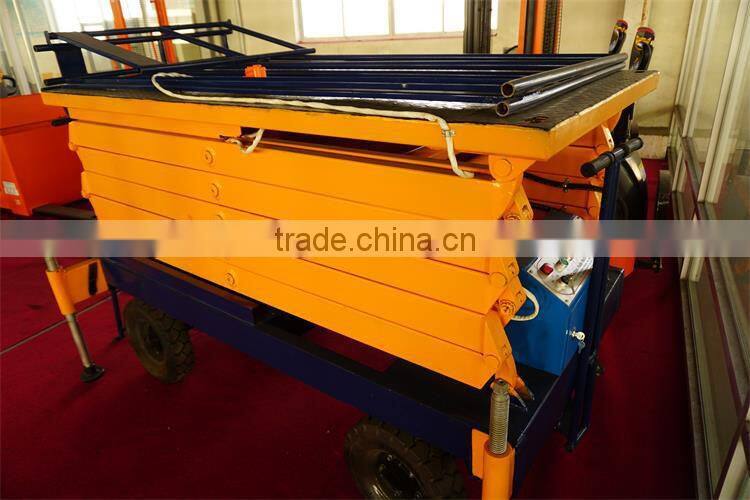

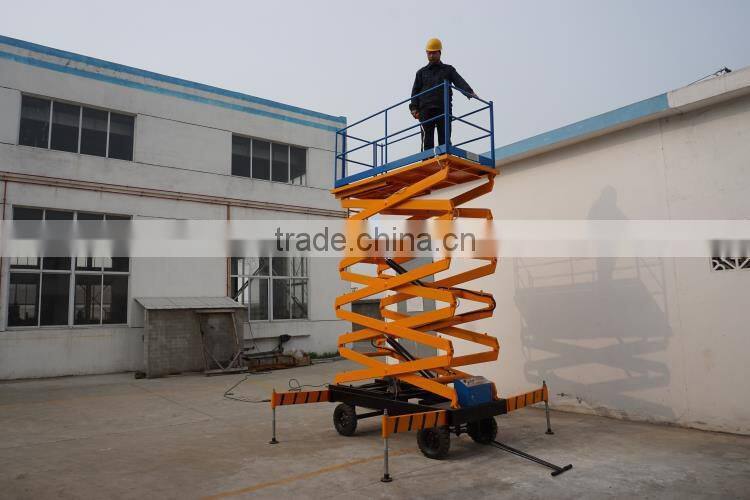

Product picture

Product description

Scissor lift platform can raise and fall in the air vertically, and is special equipment for

indoor and outdoor aerial work;

Load 300kg and lift 4-14m, load 500kg and lift 4-12m, load 1000kg and lift 6-11m;

380V supply voltage three-phase electricity;

Widely used for indoor and outdoor machinery installation, building maintenance, equipment repair, station, wharf, bridge, hall, workshop.

Product parameters

1	Characteristic
1.1	Name		Scissor Lift
1.2	Operation Type		Push by hand
1.3	Power voltage		380V50HZ three phase
1.4	Scissors boom rectangular tube	mm	100*40
1.5	Scissors boom	Layer	3
1.6	Table-board		Diamond plate
1.7	Color		Green red blue
1.8	Main application		Indoor and outdoor decorating lamp, condole top, access road and other aloft work
1.9	Surface treatment		Paint
2	Hydraulic cylinder
2.1	Lifting hydraulic cylinder	mm	φ80
2.2	Number of hydraulic cylinder	piece	2
3	Tire
3.1	Rechargeable tire	mm	Φ200
3.2	Number of tire	piece	4
4	Size
4.1	Operating height	mm	5700
4.2	Guardrail height	mm	1000
4.3	Support leg length	mm	500
