Home > Products > Lift Table > 300kg 12m Factory Customized Scissor Mechanism Platform Lift
300kg 12m Factory Customized Scissor Mechanism Platform Lift
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HZ | |
| Model Number | HZSJY0312-08 | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 2.2kw | |
| Rated Loading Capacity | 300kg | Min. Lifting Height | 1700m | |
| Max. Lifting Height | 12m | Table Size | 2600*1500mm | |
| Overall Dimensions | 2.7*1.7*1.75m | Weight | 1806/1800kg | |
| Certification | CE, SGS, ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
300kg 12m factory customized scissor mechanism platform lift

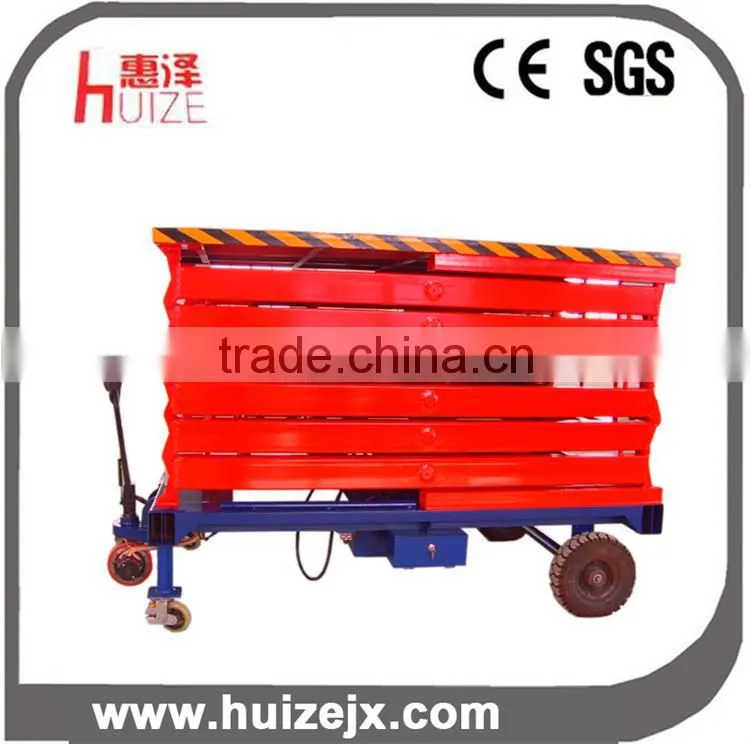

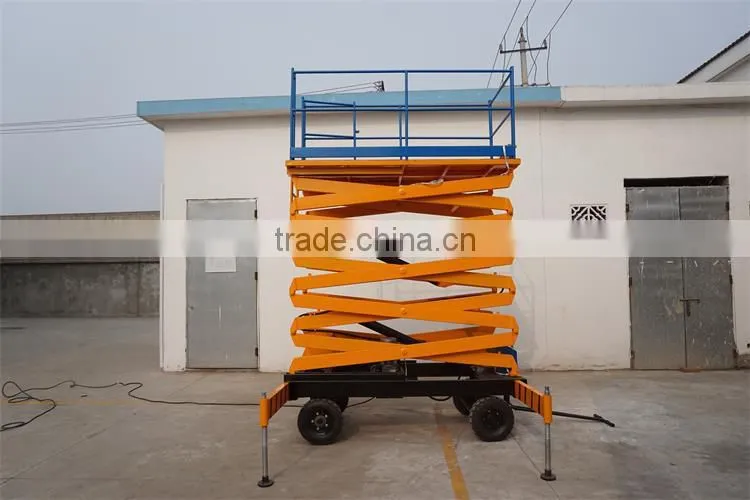

Product picture
Product description
Scissor lift platform can raise and fall in the air vertically, and is special equipment for indoor and outdoor
aerial work; Load 300kg and lift 4-14m, load 500kg and lift 4-12m, load 1000kg and lift 6-11m;380V supply
voltage three-phase electricity;Widely used for indoor and outdoor machinery installation, building
maintenance, equipment repair, station, wharf, bridge, hall, workshop.
Product parameters
| 1 | Characteristic | ||
| 1.1 | Name |
 | Scissor Lift |
| 1.2 | Operation Type |
 | Push by hand |
| 1.3 | Power voltage |
 | 380V50HZ three phase |
| 1.4 | Scissors boom rectangular tube | mm | 150*50 |
| 1.5 | Scissors boom | Layer | 6 |
| 1.6 | Table-board |
 | Diamond plate |
| 1.7 | Color |
 | Green red blue |
| 1.8 | Main application |
 | Indoor and outdoor decorating lamp, condole top, access road and other aloft work |
| 1.9 | Surface treatment |
 | Paint |
| 2 | Hydraulic cylinder | ||
| 2.1 | Lifting hydraulic cylinder | mm | φ90 |
| 2.2 | Number of hydraulic cylinder | piece | 4 |
| 3 | Tire | ||
| 3.1 | Rechargeable tire | mm | Φ500-80 |
| 3.2 | Number of tire | piece | 4 |
| 4 | Size | ||
| 4.1 | Operating height | mm | 13700 |
| 4.2 | Guardrail height | mm | 1000 |
| 4.3 | Support leg length | mm | 900 |
Product certification

Related products

Service

FAQ
1.Q: What is your minimum order quantity?
   A: One Set
2.Q:What certificates do you have?
   A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.
3.Q: How to guarantee products quality?
   A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your
QC to our factory to inspect the goods, Third, we accept the third party inspection.
4. Q:Why choose Huize factory?
    A:1.Supply required products with competitive price
       2.Good after sales service
       3.Weclome customers visit our factory to inspect and experience products
       4.Supply our professional suggestion to help customers sell and use our products better
