Abc Powder Filling Machine for Fire Extinguisher

abc powder filling machine for fire extinguisher

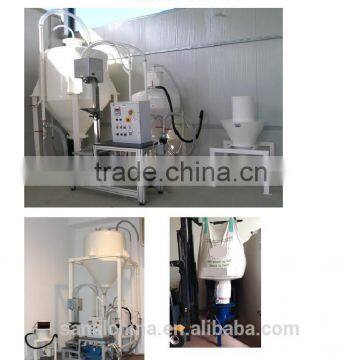

MAS 1

The equipment MAS 1 allows you to make the leap in the production of portable fire extinguishers and wheeled by 1 to 100 kg. capacity. With a loading speed for powders ABC standard of about 1 kg. / Second

allows a filling of approximately 600 extinguishers 6 kg. per day, whereas the dead time for the supply of powder and tanks. The MAS 1 can be integrated into an automatic production line extinguishers. The double containment tanks of the powders, where required is also available the tank

2000 Kg, allow to work in the continuous phase, alternating the different powders used also during their

filling. Tankage, is via a practice "hopper" outside, with average times emptying of the big-bag from 1,000 Kg, +, is about 5 min. flowing powder

COMPONENTS

- No 2 tanks 1,5 mc., Equipped with filters, steel. and painted capacity 1000 kg. dust ABC;

- No 2 tanks empty lungs for powder recovery cycle end;

- N.1 hopper for filling the containment tanks powder, with the primary filter break-dust and

cleaning system for any accidental spills of the powder. Filling is done

directly from big-bag, 1000kg in about 4/5 min. flowing powder.

- No. 1 group with an aluminum frame that contains the plane containing the system pesaggio, head of

command, actuators and the emergency button mushroom in full compliance with safety regulations,

the main electrical panel controlled by PLC with the balance display. The system is equipped with 12 memories

weight programmable keyboard;

- No. 1 Vacuum Pump;

- Optional accessory loading trolley.

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H 5000 x 1800 x 3900 mm;

- Empty weight: 1200 kg;

- Vacuum pump (100MC / h - 380 V) 2 Kw in oil bath;

- Electronic scale with portable keyboard programming;

- Capacity 1000 kg ABC powder each tank, on request tank from 2,000 Kg.

- Speed filling: 1 kg. powder / second (ABC to 40% of monoammonium phosphate);

- Ball valves with pneumatic control;

- Necessary connections: Nr. 1 outlet 380V CE sp 16 A more air 8 bar.
