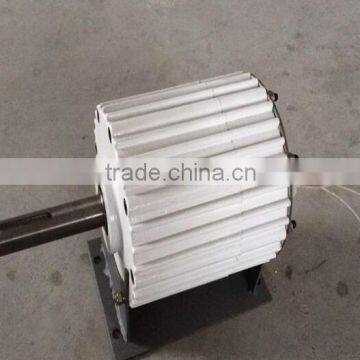

Help Center2000w Permanent Magnet Generator PMG
Related Products
-
500w 200rpm Low RPM GeneratorNegotiableMOQ: 100 Pieces -
10KW Permanent Magnet GeneratorUS$ 2,000 - 2,500MOQ: 100 Pieces
-
Sufficient Watts 5KW Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces
-
Cheap Price 1KW Permanent Magnet GeneratorUS$ 700 - 800MOQ: 1 Piece
-
100w Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces
Specifications
1,Gearless, direct drive, low RPM generator2, Small size and light weight: Its size and weight are 30% less than those of
PMG
PMG Features
1,Gearless, direct drive, low RPM generator
2, Small size and light weight: Its size and weight are 30% less than those of conventional generators.
3, Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
4, Permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque.
PMG Technical data
Model : |
2000W |
Rated Output Power(W) |
2000 |
Outer frame material |
High standard Aluminium alloy with TF/T6 heat treatment |
Outer frame finish |
Aluminium surface is anodised then power painted for anti-corrosion protection |
Net Weight(Kgs) |
21 |
Fasteners (nuts and bolts) |
High standard Stainless Steel |
Lamination stack |
High specification cold-rolled Steel |
Windings temperature rating |
180 degrees |
Magnet material |
NdFeB (Neodymium Iron Boron) |
Magnets temperature rating |
Rated at 150 degree Celsius |
Generator |
3 Phase AC output |
Safety |
Capable of withstand short term shorting of the windings for braking effect at rated rotation speed. Class 1 electrical safety rated for prevention of electrical shocks. |
Starting torque(NM) |
<2.5 |
Phase resistance(ohms) |
0.4 |
