Shenzhen Chuang Zhan Hong Electronic Technology Co., Ltd.: Shenzhen, Guangdong, China; Main products: USB HUB, HDMI, Speaker, USB card + HUB, Type - c transfer HUB

Home > Products > DVB-T2 > dvb-t2, Digital dvb-t2 Terrestrial Receiver DVB-T TV BOX for Home Use ,dvb-t2 receiver

dvb-t2, Digital dvb-t2 Terrestrial Receiver DVB-T TV BOX for Home Use ,dvb-t2 receiver

FOB Price

US$ 11.93 - 12.57 / Set

3000 Sets(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	CZH
Model Number	CZH-T8901

Product Description

Premium Digital dvb-t2 Terrestrial Receiver dvb-t TV BOX for Home Use

Product description:

*DVB-T FTA(free-to-air) model

*HD MPEG-4/ H.264, MPEG-2 decoding

*Supports PVR function and multi-media playback(MP3/MP4/JPEG,etc) via USB2.0

*Available format: Motion JPEG, avi, mpg, dat, vob, div, mov, mkv, mjpeg, ts& trp

*Audio output: Stereo sound by S/PDIF(Coaxial)

*Multiple display mode: 1080p/ 1080i/ 720p/ 576i/ 576p

*High Definition Digital Video output by HD port or YPbPr

*Standard Definition Video output by CVBS

*32bit 16:9 True color OSD

*Multiple OSD language

*Display EPG/ Subtitle

*Supports Parental Control(Channel Lock)

*4000 memory channels

*Favourite program setting

*Upgrade software through USB

Technical Specification:

Model
Hardware
CPU	MSTAR-MSD7T01 (128 pin) MIPS 34Kf@600MHz
Memory	MSD7T0 built-in (32X16Mbit DDR2 Frequency1066)
Flash	32M bytes
Demodulator Type	MSD7T0 built-in Demodulator
TUNER	Rafael R836
Front Panel	USB 2.0 Embedded One Host,
	4-digit LED display on front panel
	red LED Standby,green LED Lock
	Panel KEY, POWER, CH+ ,CH-

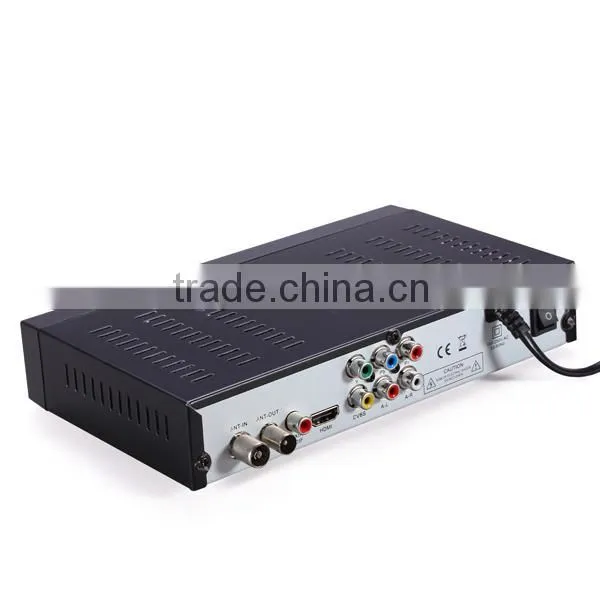

Rear Panel	Tuner RF input connector	IEC-162-2( Female)
	Tuner RF Loop through connector	IEC-162-2( Male)
	HDMI V1.3/V1.4
	RCA CVBS AL AR Connector x1
	Ypbpr RCAx1
	Coaxial x1
	Power AC100~240V 50Hz/60Hz
Demodulation
Terrisal Receiver Standard	DVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequency	48~866MHZ
Bandwidth	6MHz,7MHz,8MHz
Constellation	QPSK 16-QAM 64-QAM and 256-QAM
FEC	1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval	1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode	2K/ 8K/32K
Support	Support Single and multiple PLPS
Input level	-83 - -5dBm
Sortware Features
•Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard
•The maximum speed of the traffic flow of at least 50 Mbit / sec
•Support 3D interface
•Sleep Timer
•Support teletext/subtitle/muti-language
•Powerful and highly effective 7-day EPG function
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Decoder
Video Decoder	Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder	MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding
Powerful Multimedia Features
MediaCodec	avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec	WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec	JPEG, BMP, PNG
License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
Accessories
Accessories	gift box
	AV cable optional
	HDMI cable optional
	IR remote control
	User Manual

Export carton details:
PACKAGING: GIFT BOX PACK	Container Quantity
Qty per export carton: 20 pcs	20"	40"	40"HQ
Carton meas.:52.545.525.5cm	9180 pcs	18360pcs	21360pcs
Meas. per export carton
G.W:16.0KGS
N.W:15.0KGS

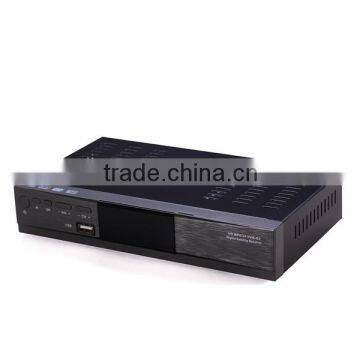

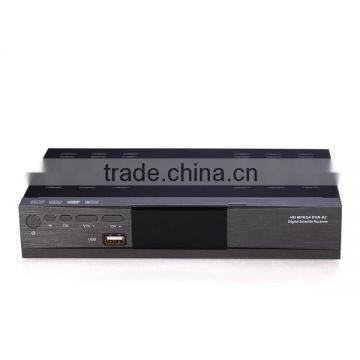

Picture show:

Product Certification:
