Digital Dvb-t2 Terrestrial Receiver DVB-T TV BOX for Home Use ,dvb-t2 Receiver
US$ 11.12 - 12.33
MOQ: 3000 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CZH
Model Number:
CZH-TM03
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HD Digital Dvb-t2 Terrestrial Receiver Dvb-t2 Antenna TV BOX for Home UseUS$ 11.65 - 13MOQ: 3000 Sets -
Full HD Digital Dvb-t2 Terrestrial Receiver DVB-T TV BOX for Home UseUS$ 11.65 - 12.32MOQ: 3000 Sets
-
[Hot Product] Digital Dvb-t2 Transmitter, Dvb-t2 Terrestrial Receiver Dvb-t2 Modulator for Home Use ,dvb-t2 ReceiverUS$ 11.65 - 12.57MOQ: 3000 Sets
-
Top Grade HD Digitalandroid Dvb-t2 Terrestrial Receiver Dvb-t2 Antenna TV BOX for Home UseUS$ 11.65 - 13.87MOQ: 3000 Sets
-
Best Price Full HD Digital Set Top Box Dvb-t2Terrestrial Receiver DVB-T TV BOX for Home UseUS$ 11.65 - 12.57MOQ: 3000 Sets
Place of Origin
Guangdong, China
Brand Name
CZH
Model Number
CZH-TM03
Premium Digital dvb-t2 Terrestrial Receiver dvb-t TV BOX for Home Use
Product description:
*DVB-T FTA(free-to-air) model
*HD MPEG-4/ H.264, MPEG-2 decoding
*Supports PVR function and multi-media playback(MP3/MP4/JPEG,etc) via USB2.0
*Available format: Motion JPEG, avi, mpg, dat, vob, div, mov, mkv, mjpeg, ts& trp
*Audio output: Stereo sound by S/PDIF(Coaxial)
*Multiple display mode: 1080p/ 1080i/ 720p/ 576i/ 576p
*High Definition Digital Video output by HD port or YPbPr
*Standard Definition Video output by CVBS
*32bit 16:9 True color OSD
*Multiple OSD language
*Display EPG/ Subtitle
*Supports Parental Control(Channel Lock)
*4000 memory channels
*Favourite program setting
*Upgrade software through USB
Technical Specification:
| Model | |||||
| Hardware | |||||
| CPU | MSTAR-MSD7T01 (128 pin) MIPS 34Kf@600MHz | ||||
| Memory | MSD7T0 built-in (32X16Mbit DDR2 Frequency1066) | ||||
| Flash | 32M bytes | ||||
| Demodulator Type | MSD7T0 built-in Demodulator | ||||
| TUNER | Rafael R836 | ||||
| Front Panel | USB 2.0 Embedded One Host, | ||||
| 4-digit LED display on front panel | |||||
| red LED Standby,green LED Lock | |||||
| Panel KEY, POWER, CH+ ,CH- | |||||
| Rear Panel | Tuner RF input connector | IEC-162-2( Female) | |||
| Tuner RF Loop through connector | IEC-162-2( Male) | ||||
| HDMI V1.3/V1.4 | |||||
| RCA CVBS AL AR Connector x1 | |||||
| Ypbpr RCAx1 | |||||
| Coaxial x1 | |||||
| Power AC100~240V 50Hz/60Hz | |||||
| Demodulation | |||||
| Terrisal Receiver Standard | DVB-T2/T(EN_302755 V1.3.1/EN 300744) | ||||
| Input RF Frequency | 48~866MHZ | ||||
| Bandwidth | 6MHz,7MHz,8MHz | ||||
| Constellation | QPSK 16-QAM 64-QAM and 256-QAM | ||||
| FEC | 1/2, 3/5,2/3, 3/4,4/5,5/6 | ||||
| Guard Interval | 1/128 1/32 1/16 19/256 1/8 19/128 1/4 | ||||
| FFT Mode | 2K/ 8K/32K | ||||
| Support | Support Single and multiple PLPS | ||||
| Input level | -83 - -5dBm | ||||
| Sortware Features | |||||
| •Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard | |||||
| •The maximum speed of the traffic flow of at least 50 Mbit / sec | |||||
| •Support 3D interface | |||||
| •Sleep Timer | |||||
|
•Support teletext/subtitle/muti-language | |||||
| •Powerful and highly effective 7-day EPG function | |||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | |||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | |||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | |||||
| Decoder | |||||
| Video Decoder |
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
||||
| Audio Decoder |
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding |
||||
|
Powerful Multimedia Features | |||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | ||||
| Audio Codec |
WMA,MP3,AAC (.wma,.mp3,m4a) |
||||
| Photo Codec |
JPEG, BMP, PNG |
||||
| License | |||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | |||||
| Accessories | |||||
| Accessories | gift box | ||||
| AV cable optional | |||||
| HDMI cable optional | |||||
| IR remote control | |||||
| User Manual | |||||
Packing Size:
| Product Size(mm) | Giftbox Size(mm) | Carton Size(mm) | Weight (KG/PS) | QTY/CTN (pcs) | Carton weight(KGS) |
| 168*90*30 | 190*170*50 | 525*405*370 | 0.54 | 40 | 21.6 |
| 220*150*40 | 240*215*50 | 525*455*255 | 0.715 | 20 | 15.15 |

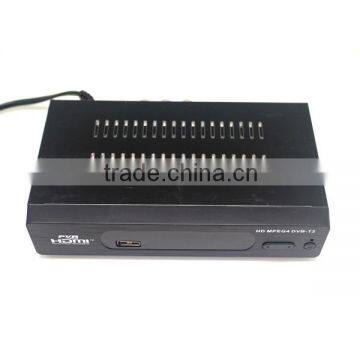

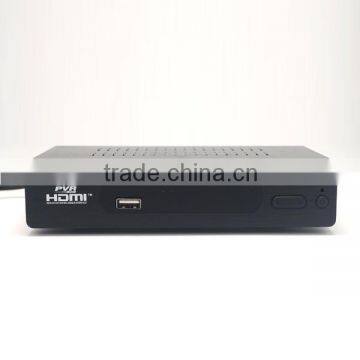

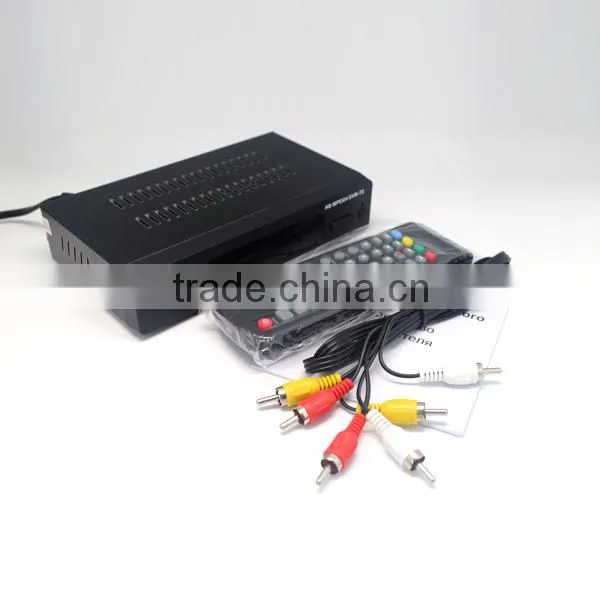

Picture show:
