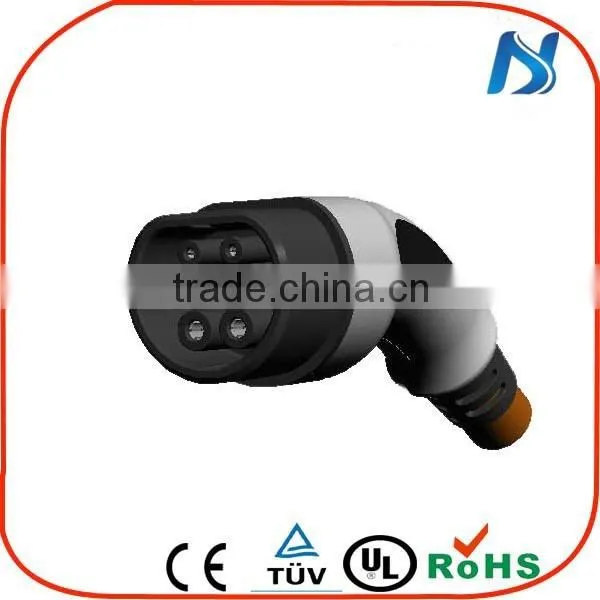

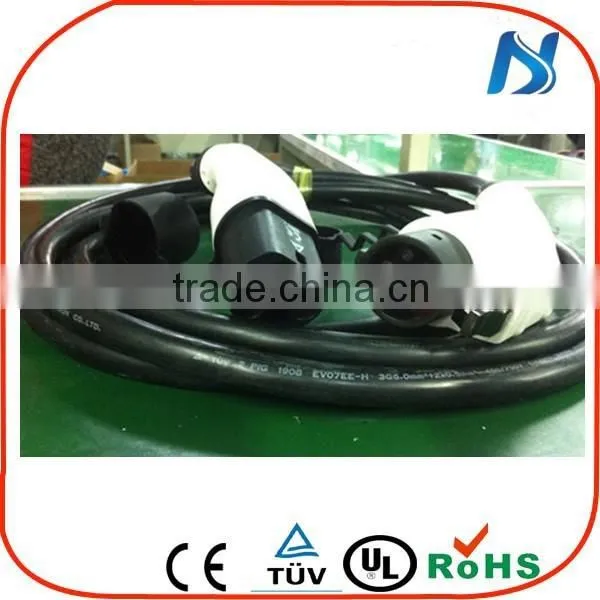

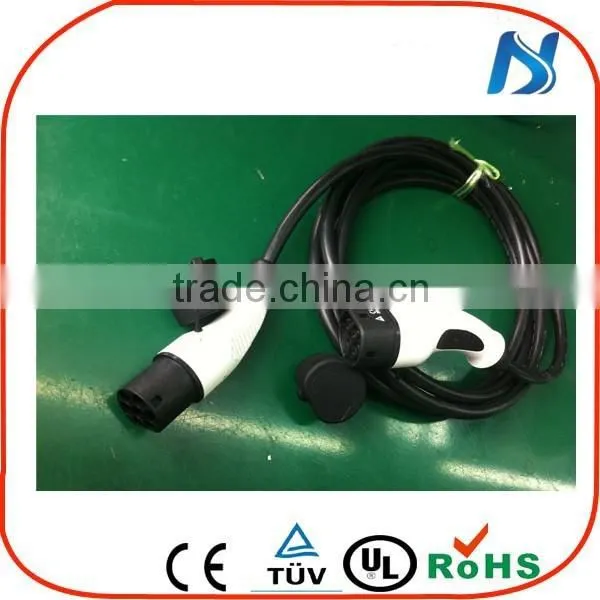

Help CenterType 2 Europen Standard 32A 63A Iec 62196 Electric Vehicles Inlet/iec 62196-2 Evse Connector
Related Products
-
Europen Standard Station Side Type 2 ev Iec 62196 Electric Vehicles Inlet # Iec 62196-2 Female Socket Car ChargerUS$ 45 - 200MOQ: 1 Piece -
Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging SocketUS$ 45 - 200MOQ: 1 Piece
-
ev Charging Coupler/iec 62196-2 ev Charge Socket/iec 62196-2US$ 45 - 200MOQ: 1 Piece
-
ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socketUS$ 45 - 200MOQ: 1 Piece
-
Iec 62196-2 ev Onboard Charger/iec 62196-2 ev Electric Car Side SocketUS$ 45 - 200MOQ: 1 Piece
62196 type 2 EV charging for car
Application
Features
1.Meet IEC62196 standards;
2.Nice shape, hand-held ergonomic design, easy to use;
3.Protection class: IP54(in mated conditions);
4.Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV
Performance
1.Rated current:16A/32A/63A;
2.Operating voltage: 250V AC;
3.Insulation resistance:>1000MΩ(DC500V);
4.Terminal temperature rise:<50K;
5.Withstand voltage:2000V;
6.Contact impedance: 0.5mΩ Max
7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.
Mechanical properties
1.Mechanical life: no-load socket in/pull out >10000 times
2.Insertion and coupled Force: 45N<F<80N;
3.Operating temperature: -30°C ~ +50°C
Materials
1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
2.Contact Pin: Copper alloy, silver or nickel plating;
3.Sealing gasket: rubber or silicon rubber;
Advantage:
1.International approvals(UL,TUV,CE,ROHS)
2.Competitive price
3.Prompt Delivery time(7-10 days)
4.Guaranteed quality
5.OEM order is acceptable image
Type: DSIEC2e-EV16P / 32P /63P
Product parameters | |||
Type |
DSIEC2e-EV-P |
Plug the power |
≤160N |
Color |
Grey |
Patch life |
≥10000 |
Rated Current |
16A/32A/63A |
Fire rating |
UL94 V-0 |
Rated Voltage |
250 |
Waterproof rating |
Cutoff:IP54,Charge:IP67 |
Resistance Voltag |
2000V |
Operating Temperature |
-30°Cto60°C |
Insulation resistance |
>1000M(DC500V) |
Cable Specifications |
2.5mm2 -10mm2 |
The main material |
PC/Copper Alloy |
|
|
charging Mode | |||||
Mode |
Type |
Rated voltage |
Rated Current |
AWG |
Number of insert |
1 |
DSIEC2e-EV-16P |
250V AC |
16A |
3*2.5mm2+2*0.5mm2 |
7 |
2 |
DSIEC2e-EV-32P |
250V AC |
32A |
3*6mm2+2*0.5mm2 |
7 |
3 |
DSIEC2e-EV-63P |
250V AC |
63A |
3*10mm2+2*0.5mm2 |
7 |
Remark |

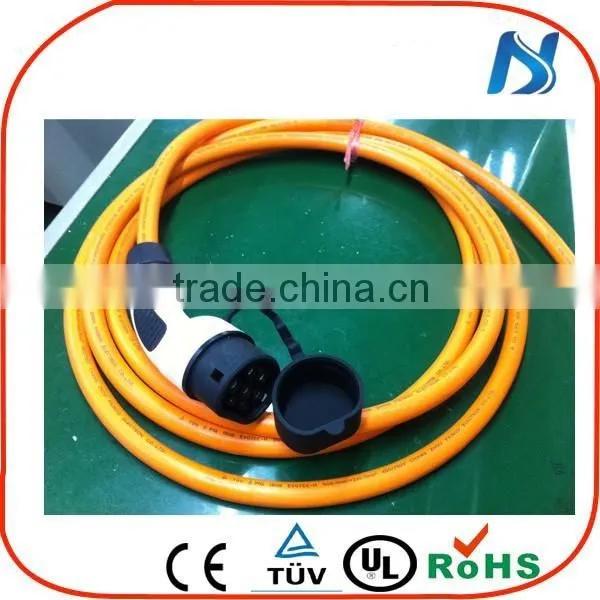

The length of the cable can be customized |
||||
Apply to vehicle
Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...
Packing details
Production line
Please contact us if any question .
