ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socket

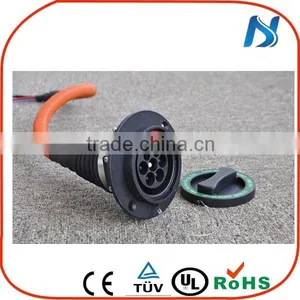

ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socket thumbnail-1
ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socket thumbnail-2
ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socket thumbnail-3

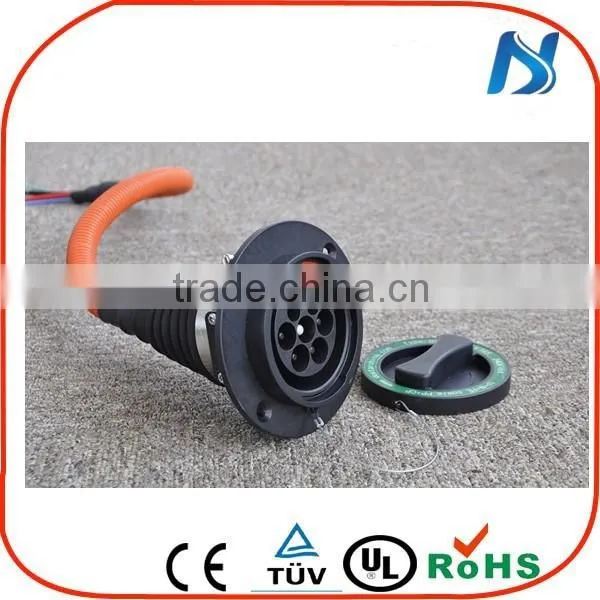

ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socket photo-1

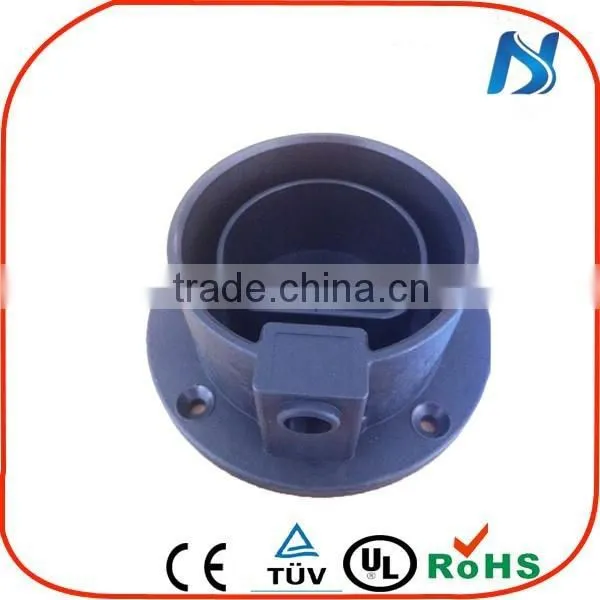

ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socket photo-2

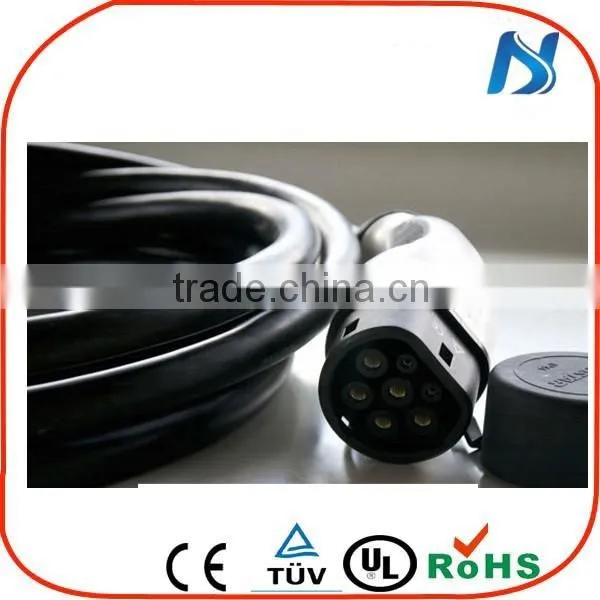

ev ac Chargeing Plug 250v Plug/iec 62196-2 Socket/iec 62196-2 Chademo Plug&socket photo-3
US$ 45 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
khons socket and plug
Model Number:
V3-DSS sae J1772 EV socket and plug
Contact Supplier Request Quote Chat Now
Chengdu Khons Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name khons socket and plug
Model Number V3-DSS sae J1772 EV socket and plug
Type Electrical Plug
Grounding Standard Grounding
Rated Voltage 250V
Rated Current 16A /32A /63A
Application Industrial

62196 type 2 EV charging for car



Application



ev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socket

Features



1.Meet IEC62196 standards;



2.Nice shape, hand-held ergonomic design, easy to use;



3.Protection class: IP54(in mated conditions);



4.Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV



Performance



1.Rated current:16A/32A/63A;



2.Operating voltage: 250V AC;



3.Insulation resistance:>1000MΩ(DC500V);



4.Terminal temperature rise:<50K;



5.Withstand voltage:2000V;



6.Contact impedance: 0.5mΩ Max



7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.



Mechanical properties



1.Mechanical life: no-load socket in/pull out >10000 times



2.Insertion and coupled Force: 45N<F<80N;



3.Operating temperature: -30°C ~ +50°C



Materials



1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);



2.Contact Pin: Copper alloy, silver or nickel plating;



3.Sealing gasket: rubber or silicon rubber;



Advantage:

1.International approvals(UL,TUV,CE,ROHS)

2.Competitive price

3.Prompt Delivery time(7-10 days)

4.Guaranteed quality

5.OEM order is acceptable image

ev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socket

Type: DSIEC2e-EV16P / 32P /63P



Product parameters

Type

DSIEC2e-EV-P

Plug the power

≤160N

Color

Grey

Patch life

≥10000

Rated Current

16A/32A/63A

Fire rating

UL94 V-0

Rated Voltage

250

Waterproof rating

Cutoff:IP54,Charge:IP67

Resistance Voltag

2000V

Operating Temperature

-30°Cto60°C

Insulation resistance

>1000M(DC500V)

Cable Specifications

2.5mm2 -10mm2

The main material

PC/Copper Alloy





charging Mode

Mode

Type

Rated voltage

Rated Current

AWG

Number of insert

1

DSIEC2e-EV-16P

250V AC

16A

3*2.5mm2+2*0.5mm2

7

2

DSIEC2e-EV-32P

250V AC

32A

3*6mm2+2*0.5mm2

7

3

DSIEC2e-EV-63P

250V AC

63A

3*10mm2+2*0.5mm2

7

Remark

The length of the cable can be customized



 ev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socketev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socketev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socket



 Apply to vehicle



Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...

ev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socket

Packing details

ev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socket

Production line

ev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socket



  Please contact us if any question .

ev ac chargeing plug 250v plug/iec 62196-2 socket/iec 62196-2 chademo plug&socket
