Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging Socket

Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging Socket thumbnail-1
Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging Socket thumbnail-2
Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging Socket thumbnail-3
Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging Socket photo-1
Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging Socket photo-2
Iec 62196-2 Vehicle Inlet ce Tuv Approval/car Side 62196-2 Type 2 Male/iec 62196 ac Charging Socket photo-3
US$ 45 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
khons socket and plug
Model Number:
V3-DSS sae J1772 EV socket and plug
Contact Supplier Request Quote Chat Now
Chengdu Khons Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name khons socket and plug
Model Number V3-DSS sae J1772 EV socket and plug
Type Electrical Plug
Grounding Standard Grounding
Rated Voltage 250V
Rated Current 16A /32A /63A
Application Industrial

62196 type 2 EV charging for car



Application



iec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socket

Features



1.Meet IEC62196 standards;



2.Nice shape, hand-held ergonomic design, easy to use;



3.Protection class: IP54(in mated conditions);



4.Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV



Performance



1.Rated current:16A/32A/63A;



2.Operating voltage: 250V AC;



3.Insulation resistance:>1000MΩ(DC500V);



4.Terminal temperature rise:<50K;



5.Withstand voltage:2000V;



6.Contact impedance: 0.5mΩ Max



7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.



Mechanical properties



1.Mechanical life: no-load socket in/pull out >10000 times



2.Insertion and coupled Force: 45N<F<80N;



3.Operating temperature: -30°C ~ +50°C



Materials



1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);



2.Contact Pin: Copper alloy, silver or nickel plating;



3.Sealing gasket: rubber or silicon rubber;



Advantage:

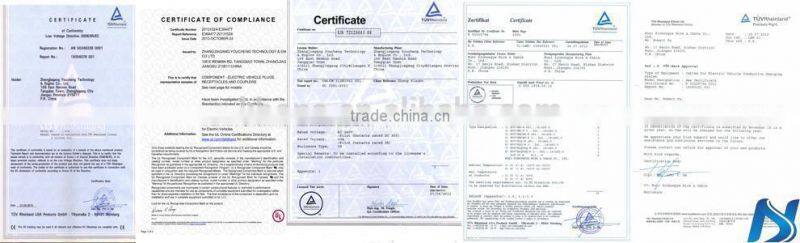

1.International approvals(UL,TUV,CE,ROHS)

2.Competitive price

3.Prompt Delivery time(7-10 days)

4.Guaranteed quality

5.OEM order is acceptable image

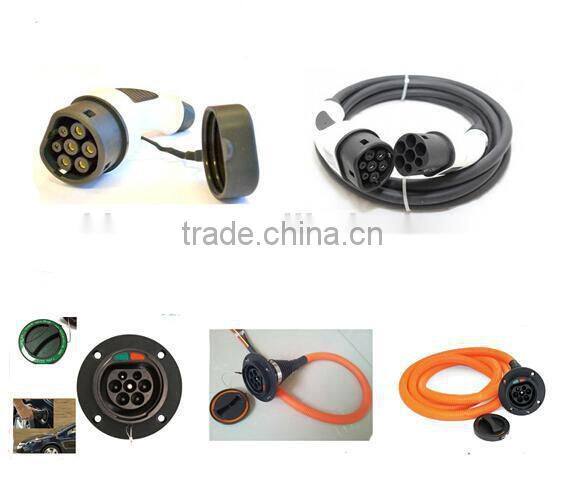

iec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socket

Type: DSIEC2e-EV16P / 32P /63P

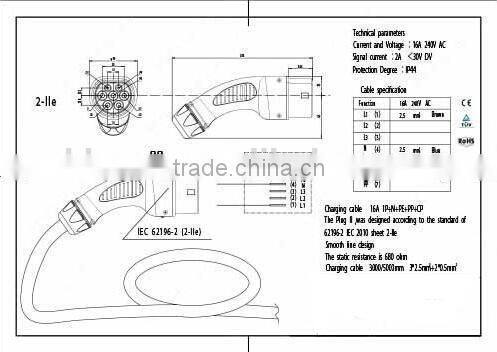

Product parameters

Type

DSIEC2e-EV-P

Plug the power

≤160N

Color

Grey

Patch life

≥10000

Rated Current

16A/32A/63A

Fire rating

UL94 V-0

Rated Voltage

250

Waterproof rating

Cutoff:IP54,Charge:IP67

Resistance Voltag

2000V

Operating Temperature

-30°Cto60°C

Insulation resistance

>1000M(DC500V)

Cable Specifications

2.5mm2 -10mm2

The main material

PC/Copper Alloy





charging Mode

Mode

Type

Rated voltage

Rated Current

AWG

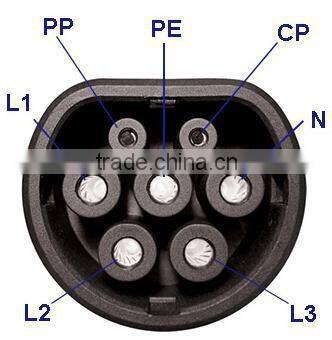

Number of insert

1

DSIEC2e-EV-16P

250V AC

16A

3*2.5mm2+2*0.5mm2

7

2

DSIEC2e-EV-32P

250V AC

32A

3*6mm2+2*0.5mm2

7

3

DSIEC2e-EV-63P

250V AC

63A

3*10mm2+2*0.5mm2

7

Remark

The length of the cable can be customized



 iec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socketiec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socketiec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socket



 Apply to vehicle



Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...

iec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socket

Packing details

iec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socket

Production line

iec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socket



  Please contact us if any question .

iec 62196-2 vehicle inlet ce tuv approval/car side 62196-2 type 2 male/iec 62196 ac charging socket
