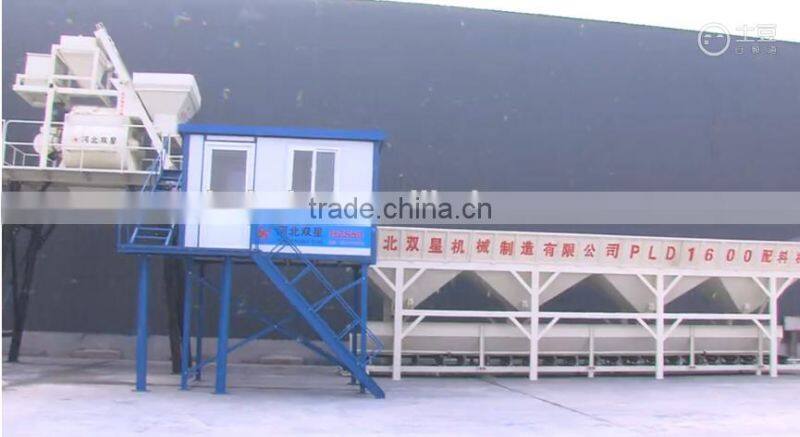

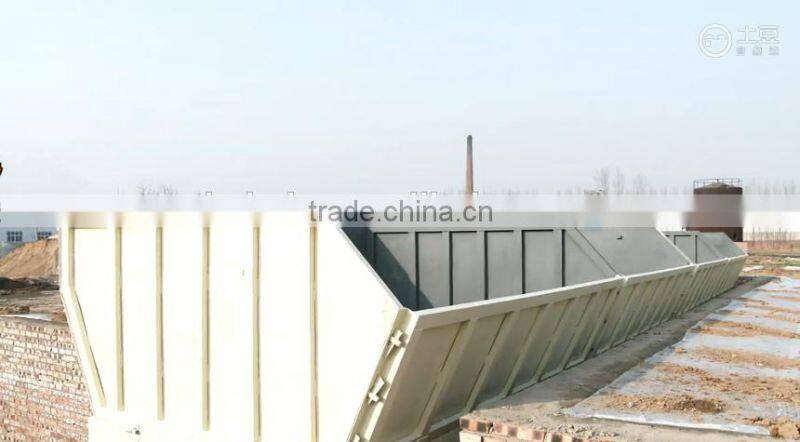

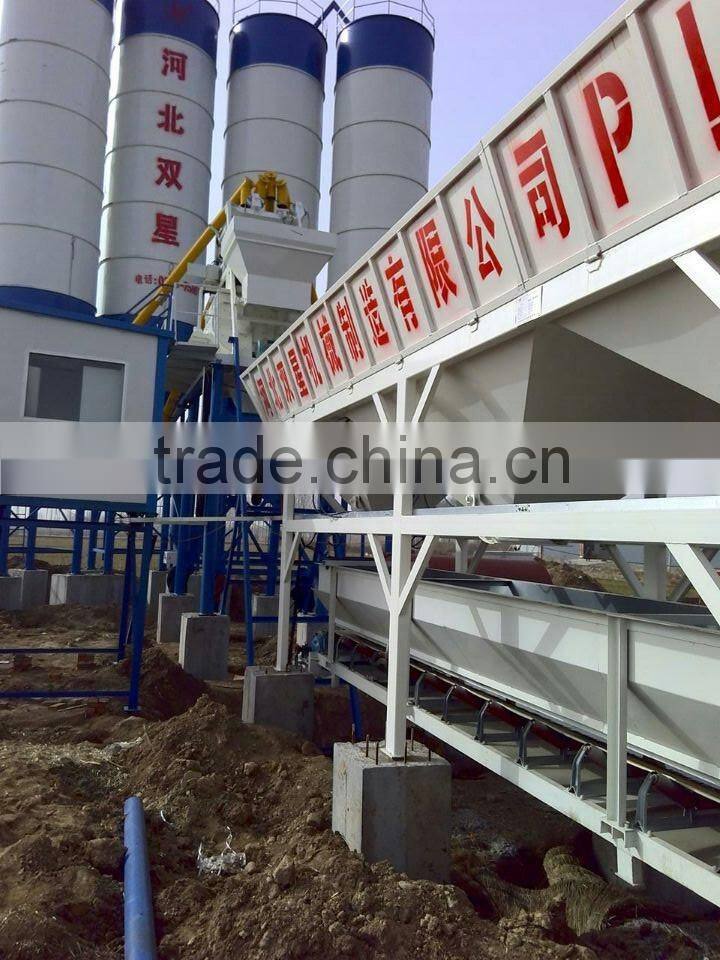

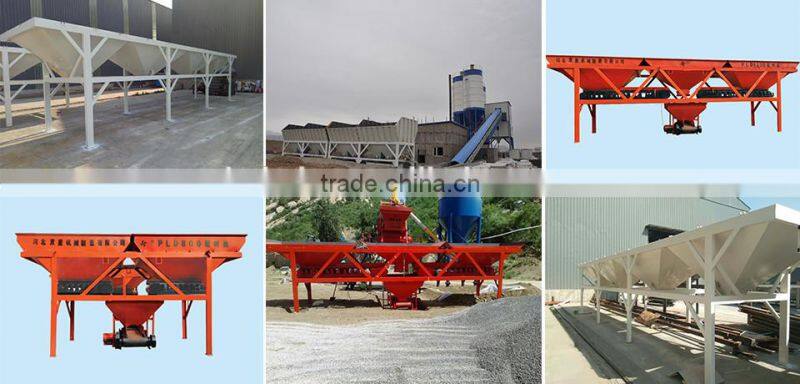

Automatic aggregate batching machine PLD series concrete batcher price
1, feeding system: combined with storage hopper and feeding device together. The mainly function are storage materials and feeding the weigh bucket under the control system.
2, weighing system: it is the important part of the batching machine. Including weigh bucket, suspension device, weighing system sensor, batching control instrument, etc.
3, electrical control system: it is the heart parts of the batching machine, the function is that it can achieve every kinds of automatic batching process, and can achieve the weighing, display, operate of the batching machine. The system is mainly consist of batching control instrument and the electrical circuit together.
Type |
PLD800 |
PLD1200Y |
PLD1600QB |
PLD2400-III(IV) |
Nominal volume of weigh bucket(m2) |
2*2 |
3*2 |
3*6 |
3*12 |
Productivity(m2/h) |
48 |
60 |
80 |
120 |
Aggregate size(mm |
≤60 |
≤60 |
≤60 |
≤60 |
Productivity(KW) |
20-25 |
30-45 |
50-60 |
≤90 |
Batching machine model |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
Power(kw) |
6.6 |
10.6 |
5.5 |
11 |
Batching precision |
±2% |
±2% |
±2% |
±2% |
|
Maximum weight value(kg) |
1500 |
2000 |
3000 |
4000 |
Packaging 1, Waterproofing packing;
2, Corrosion resistant packing ;
Shipping 15 working days after payment
Hebei Double Star Machinery Manufacturing Co., Ltd established in XingTai Hebei, covering over 99960 square meters area. We have more than 300 staff members, which more than 40 are engineers and technicians. We are the professional producer of concrete machinery equipment which incorporate scientific research, produce, before-sale service and after-sale service as a whole. Our leading products are concrete batching plant, concrete mixer, concrete batching machine, screw conveyor, cement silo and so on.
Service we can provide
1, We provide lifelong maintenance after sale service and parts supply for the products.
2, We will help you install the quipment.
3, Be free to call us whenever there is something wrong with your concrete plants.
4,Any inquiry will be answered with in 24 hours.
