Packaging 1, Waterproofing packing;
2, Corrosion resistant packing ;
Shipping 15 working days after payment

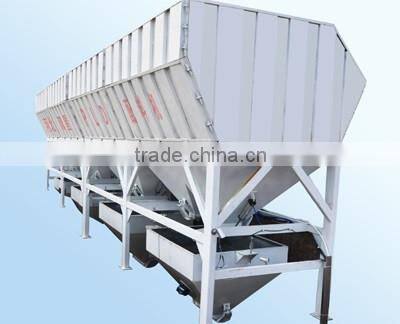

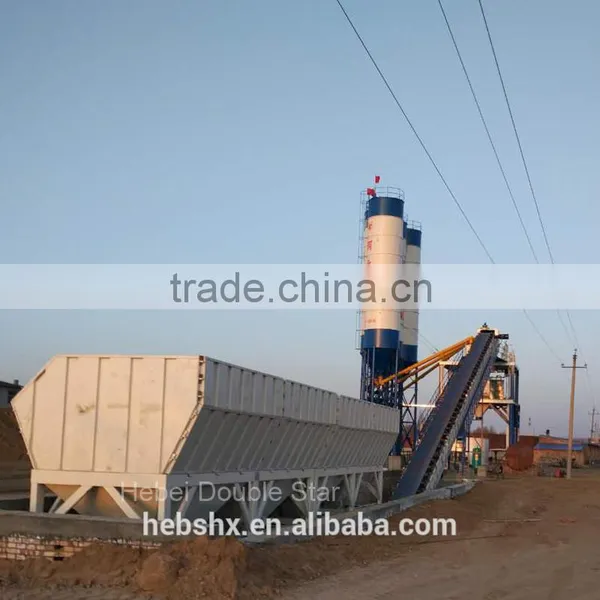

Factory supplier PLD3200 ready mixed concrete batching plant

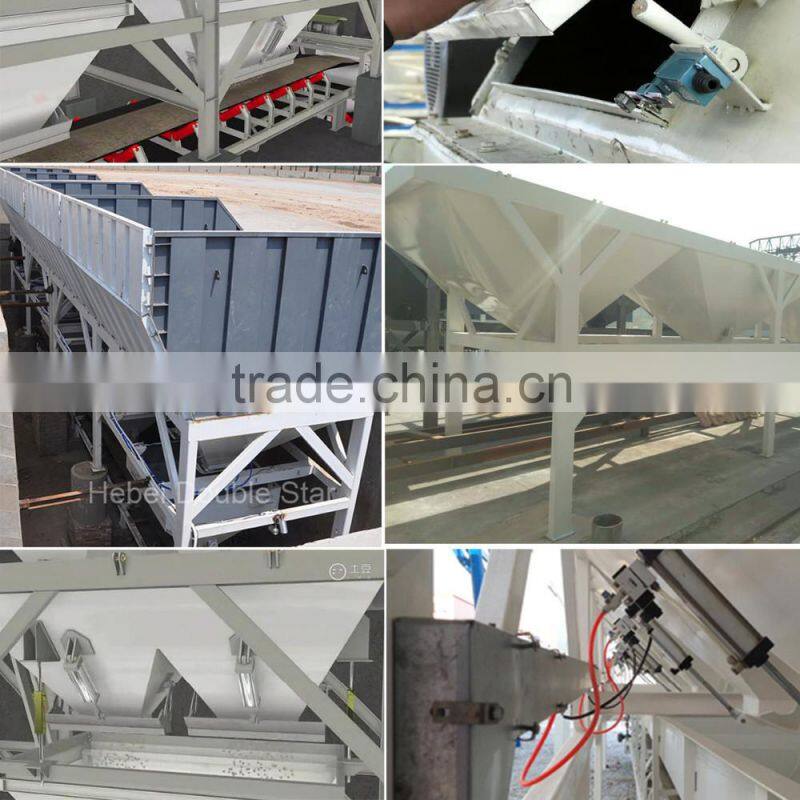

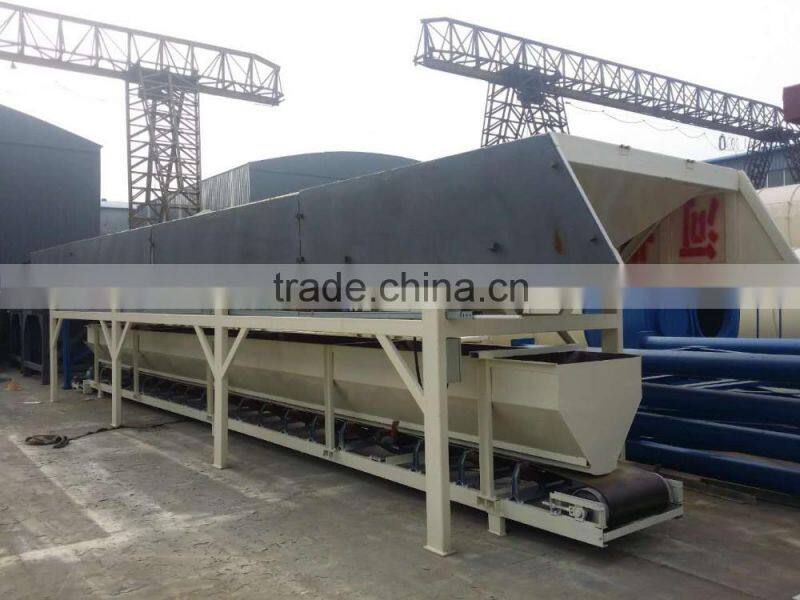

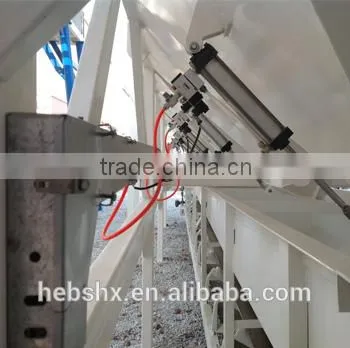

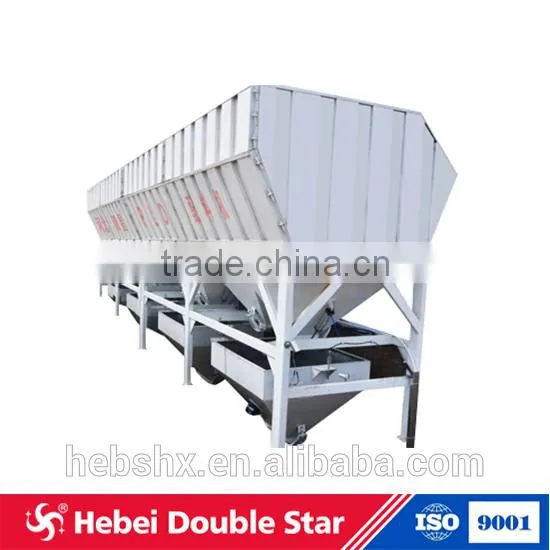

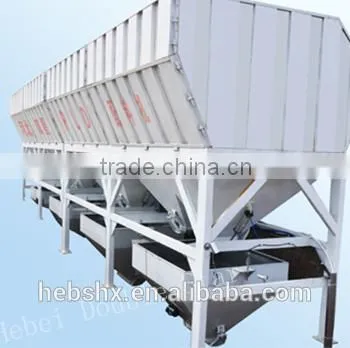

Hebei double star's concrete batching machine are consist of feeding system,weighing system,and electric control system. (1)feeding system:combined with storage hopper and feeding device together.The mainly function are storage materials and feeding the weigh bucket under the control system.

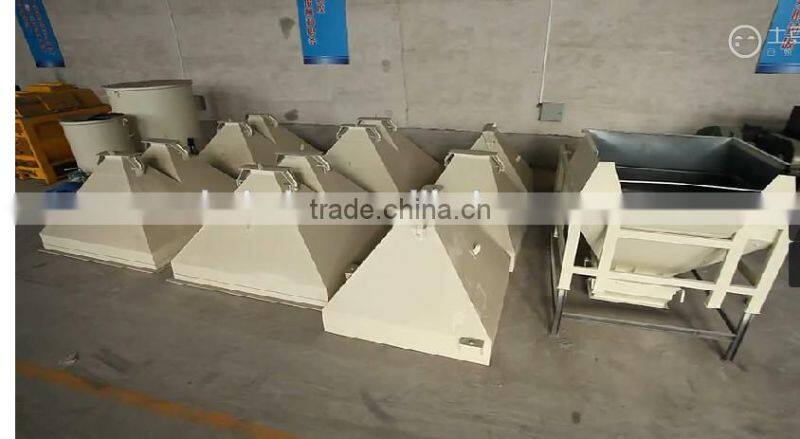

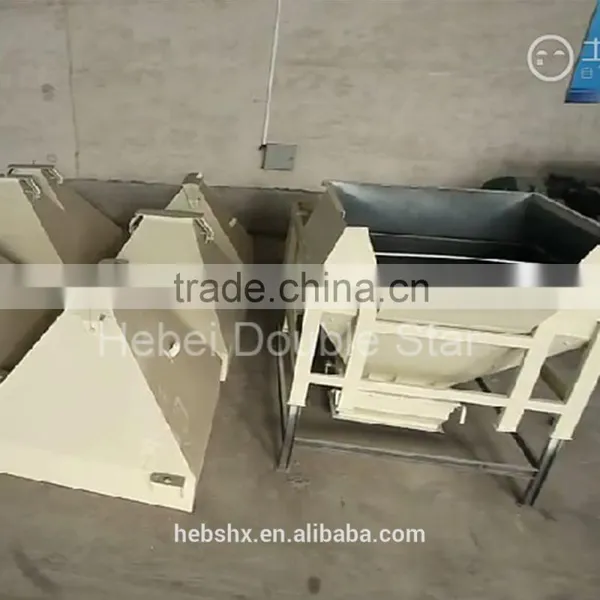

(2)weighing system:it is the important part of the batching machine.Including weigh bucket ,suspension device,weighing system sensor,batching control instrument,etc.
(3)electrical control system:it is the heart parts of the batching machine,the function is that it can achieve every kinds of automatic batching process,and can achieve the weighing,display,operate of the batching machine.The system is mainly consist of batching control instrument and the electrical circuit together.
PLD series concrete mixer technical specification
Type |
PLD800 |
PLD1200Y |
PLD1600QB |
PLD2400-III(IV) |
PLD3200(IV) |
Nominal volume of weigh bucket(m² ) |
2*2 |
3*2 |
3*6 |
3*12 |
4*18 |
Productivity(m²/h) |
48 |
60 |
80 |
120 |
160 |
Aggregate size(mm |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
Productivity(KW) |
20-25 |
30-45 |
50-60 |
≤90 |
50-60 |
Batching machine model |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
Power(kw) |
6.6 |
10.6 |
5.5 |
11 |
7.5 |
Batching precision |
±2% |
±2% |
±2% |
±2% |
±2% |
|
Maximum weight value(kg) |
1500 |
2000 |
3000 |
4000 |
5000 |
Aggregate species |
2 |
3 |
3 |
3/4 |
4 |
Measuring style |
Electric balance |
||||
Batching style |
Electric belt machine |
Electric belt machine |
Electric belt machine |
Electric belt machine |
Electric belt machine |
Discharge style |
Electric balance |
||||
Machine quality |
2350 |
3760 |
7000 |
9000 |
10500 |
Dimensions |
5600*1560*2760 |
8390*2000* 2800 |
9600*2300* 3600 |
1000*3000* 4860 |
14000*3000*4600 |
Hebei Double Star Machinery Manufacturing Co., Ltd established in XingTai Hebei, covering over 99960 square meters area. We have more than 300 staff members, which more than 40 are engineers and technicians. We are the professional producer of concrete machinery equipment which incorporate scientific research, produce, before-sale service and after-sale service as a whole. Our leading products are concrete batching plant, concrete mixer, concrete batching machine, screw conveyor, cement silo and so on.
We are here to serve you:
1. Any inquiry will be replied within 24 hours.
2, We provide high quality products for all the customers.
3, We have over 400 staffs to make sure the quality and efficiency of our products.
4, We have decades years experience in this scale.
5, Life-long time maintain can provide.
Why us?
1,We have decades years experience.
2,Our concrete batching plant are all meet the standard.
3,We can design by the customers’ needs at the same time.
4, We have more than 400 staffs who devote themselves to improve the quality of our products.
