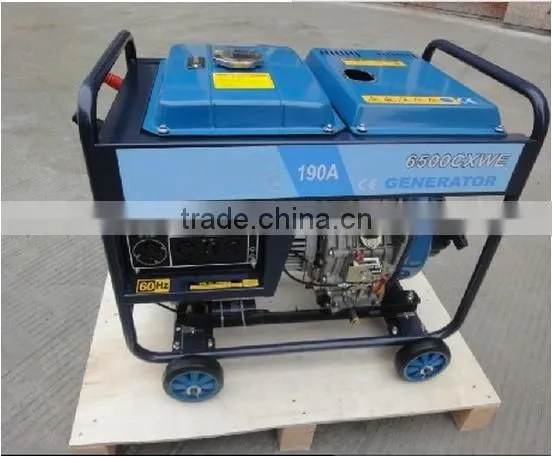

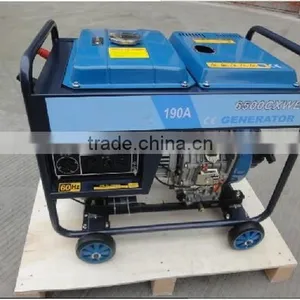

Help Center5kVA 6KVA Portable Open Welding Machine & Generator
Related Products
-
24A 50HZ 60HZ 6kw (6kVA) Welder Diesel Generator/Welding Generator 188F Engine For Wholesale With Digital PanelUS$ 44 - 1,000MOQ: 1 Set -
Open Type Diesel Welder Generator SetUS$ 560 - 700MOQ: 1 Set
-
Diesel Welder Machine Welding Generator Welding GensetUS$ 92 - 6,500MOQ: 1 Set
-
Stock !! 200A-240A 6kva 5kw Diesel Welder GeneratorUS$ 510 - 910MOQ: 1 Set
-
Genuine New Janpan Mitsubishi Diesel 1.5MW,3MW,6MW,24MW,30MW Ready to Shipping Generator PlantUS$ 100,000 - 200,000MOQ: 1 Set
Gasoline generator series
CE EPA approved portable (petrol ) generators(1kw-10kw)
Portable diesel generator series
1kw-5kw Air-Cooled portable diesel generator
Air cooled 5kw silent portable diesel generator
** Honda Gasoline generator manufacture from Fujian company in china
** Research and develepment cener with 20 Professinal technical team
** Home,shop ,hotel,marine etc emergency power supply
** OEM factory of Honda and other brand gasoline generators
FuJian Saint MeiLan Motor Wiring Co.,Ltd
Features
01. Portable compact open structure
02. Economical, reliable and durable
03. Long run time - up to 12.5 hours
04. AVR to automatically regulate voltage
05. Oil alert to shut down engine automatically when low oil is detected
06. Circuit breaker to stop engine automatically when overloaded
07. Powers fridge, furnace, lights, TV, and much more
08. CE, CSA, EPA, ISO9001:2000 certification approved
09. One year or 500 hours warranty
10. Patent design, unique appearance and function
11.Advance technologe, with THD<5% avaliable
we adopt AVR (Automatic Voltage Regulator) and carbon brush to supply stable voltage. It is less fuel consumption and lengthen the life of usage.
All the devices enable the voltage more stable, forward the alternator more steady-going and reliable.
The machines start easily and run steadily to supply enough power for you.
Remarks: electric start/recoil start, can be made with wheels and hand slaps.
Output: From 1.3kwto 5.5kw
| GENERATOR RATING | ||||||
| Portable | 50Hz | 60Hz | ||||
| Single Phase / 110V / 220V / 230V | 5.0 KVA | 5.5 KVA | ||||
| 4.8 KVA | 5.0 KVA | |||||
| Power Output of Generating When Welder Is Working (KVA) |
1.8 KVA | 2.0 KVA | ||||
| 1.5 KVA | 1.8 KVA | |||||
| ENGINE DATA | ||||||
| Engine maker: | SAINT MEILAN | |||||
| Model: | GE190FE | |||||
| Type: | Single-cylinder, 4-stroke, air-cooled, OHV | |||||
| Displacement: cc | 420 | |||||
| Bore/Stroke: mm | 90 / 66 | |||||
| Fuel: | Gasoline | |||||
| Aspiration: | Natural aspiration | |||||
| Gorvenor: | All-speed type, mechanical governor | |||||
| Cooling systems: | Forced-air | |||||
| Fuel consumption (g/hp.h) | 270 | |||||
| Lubrication oil capacity: Litres | 1.1 | |||||
| Battery capacity: VDC | 12 | |||||
| Frequency: Hz | 50 Hz | 60 Hz | ||||
| Engine speed: RPM | 3000 RPM | 3600 RPM | ||||
| Gross engine power: HP | 15.0 | |||||
| Fuel tank capacity: Litres | 25 | |||||
| Fuel cons.pt at Prime (L/h) |
100% Load | TBA | TBA | |||
| 75% Load | TBA | TBA | ||||
| 50% Load | TBA | TBA | ||||
| ALTERNATOR DATA | ||||||
| Alternator maker: | SANIT MEILAN | |||||
| Model: | HW-G190-5 | |||||
| Frequency: Hz | 50 Hz | 60 Hz | ||||
| Voltage: | TBA | TBA | ||||
| Exciter: | Brush type, Self-excitation, AVR | |||||
| Rectifying Model | IGBT + Three-phase rectifying bridge (PWM) | |||||
| Insulations class: | F | |||||
| IP / Poles: | IP22 / 2 Poles | |||||
| DC Welding | Welding Voltage @ No-load DC (V) |
63-85 | ||||
| Welding Operating Voltage DC (V) |
20-30 | |||||
| Rated Welding Current DC (A) |
180-200 | |||||
| Welding Current Adjustment Rang (A) |
50-200 | |||||
| Welding Load Continuous Ratio |
60% | |||||
| DIMENSIONS and WEIGHT | ||||||
| Type | Sound Level | Length:mm | Withd:mm | Hight:mm | Weight Dry | Weight Wet |
| OPEN TYPE | 70 dB | 780 | 550 | 570 | 120 Kg | 125 Kg |
| Dry: without packing | Wet: with packing | |||||
| NA: not available | TBA: To Be Ask | |||||
| Generating set pictured may include optional accessories. | ||||||
