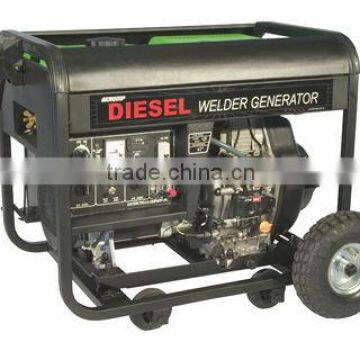

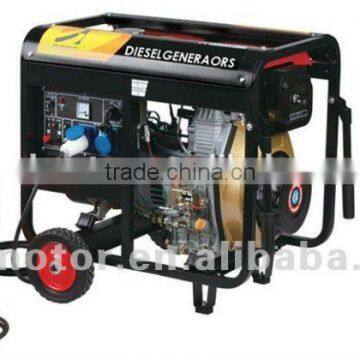

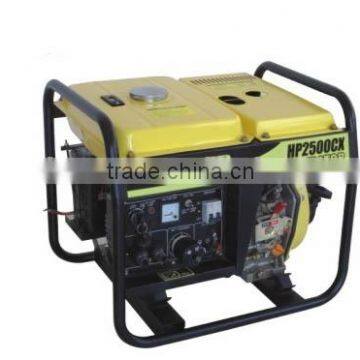

Open Type Diesel Welder Generator Set

Open Type diesel welder generator set

with 15L Fuel Capacity and Rated Frequency of 50HzDisplacement: 406CC
Maximum output: 8.8HP/3,000rpm

Features
Fuel consumption rate: 250g/kWh
Cooling method: forced-air
Starting method: electric start
Welder:<dd>No-load voltage: 60 to 80V
Working voltage: 24 to 30V
Welding current range: 60 to 200A
Rate of sustained load: 40%
Generator:<dd>Phase number: one
Rated output: 3kVa
Rated frequency: 50Hz
Rated voltage: 220V
Power factor: 1.0
SET:<dd>Overall dimensions: 715 x 535 x 590mm
Net weight: 108kg
Gross weight: 136kg

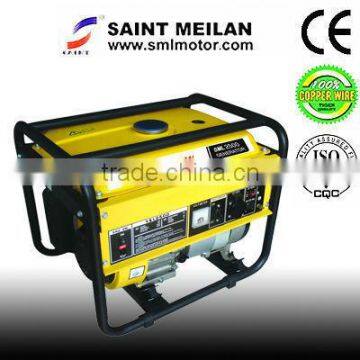

We also have gasoline engine generator sets
Model DG6000EW and DG6500EW

1) Rated output: 5 - 15kW

2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120,etc.

3) Rated frequency: 50 / 60Hz

4) Power factor: 0.8 or 1.0

Engine: ZS series ,single cylinder

1) Cooling method: closed water cooling

2) Starting method: electric

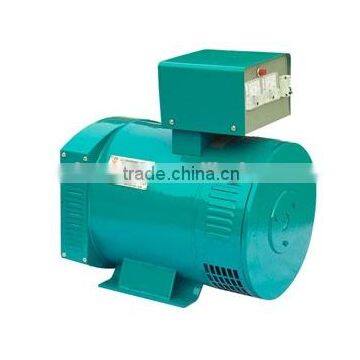

Alternator:

1) Type: SD/SDC

2) Rated voltage: 400 / 230V 220/110V

3) Rated Frequency: 50 / 60Hz

4) Phase: 3-phase, 4-wire

5) Rated speed: 1,500rpm / 1,800rpm

6) Excitation: harmonic excitation

Control panel:

1) The generator control panel is manufactured locally by ourselves

2) The panel is provided with:

  a) Standard engine instrumentation

  b) Voltmeter with selector switch

  c) Ammeter with selector switch

  d) Frequency meter

  e) Current transformers

  f) Instrument fuses duly wired and ferruled

  g) Mcb of suitable rating with overload and short circuit protection

  h) With AMF control panel or with ATS (automatic transfer syste)

Warranty policy

Guarantee for one year or 1200 hours whichever reach first from ex-factory date ,During the guarantee period ,Saint will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material,After expiration ,"Saint "provides cose spare pars maintenance of gensets.

Manufacturing standards

ISO9001 2008 ,CE ,GB/T2820,GB755 ,SONCAP ,AND SO ON.
