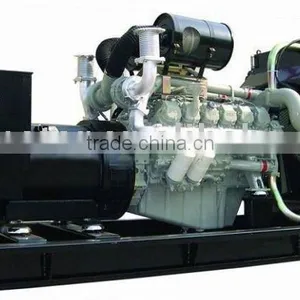

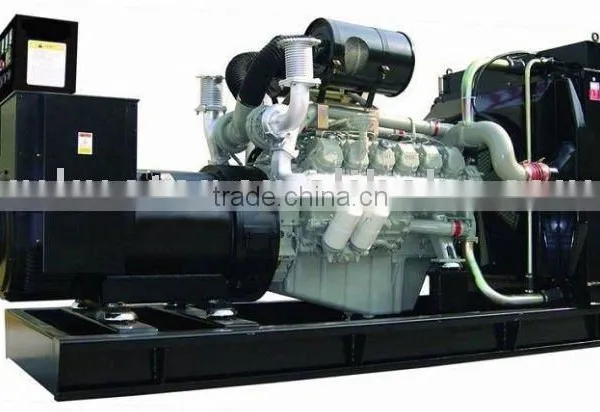

Help CenterHigh Quality CE&ISO Genuine 11kv (Daewoo)Doosan Generator Set
Related Products
-
Cheap 300kva Wudong Chinese Diesel Generator Set SupplierUS$ 8,000 - 14,000MOQ: 1 Set -
50kva Wudong Chinese Diesel Generator Set SupplierUS$ 1,000 - 3,000MOQ: 1 Set
-
EPA Dual Voltage 50Hz/60Hz Diesel Generator 5kva to 6kva (Open and Soundproof)US$ 244 - 450MOQ: 1 Set
-
DEUTZ Engine Diesel Electric GeneratorUS$ 1,000 - 100,000MOQ: 1 Set
-
Weichai Engine GeneratorUS$ 1,000 - 100,000MOQ: 1 Set
Specifications
generator set1 Lowest price, superb quality
2 Noise 70 db (7 meters away)
3 CE, ISO900 Certificate
Geunine Doosan 11kv generator set
|
Diesel Generator set |
Diesel Genset Model |
SML725 |
Rating Power (KW/KVA) |
520/650 |
|
Standby Power(KW/KVA) |
580/725 |
|
Rating Ammeter(A) |
938 |
|
|
Diesel Engine |
Engine Model |
P222LE-S |
Prime Power(KW) |
552 |
|
Standby Power(KW) |
603 |
|
Bore X Stroke (mm) |
128X142 |
|
number of Cylinder & Configuration |
V 12 |
|
Displacement(l) |
21.9 |
|
Compression Ratio |
14.6:1 |
|
Aspiration Type |
Turbocharged & After-cooled |
|
Max. intake depression(mmH2O) |
220 |
|
Combustion air Volume(m³/min) |
38 |
|
Max. Exhaust back Pressure(mmH2O) |
600 |
|
Exhaust Gas Flow(m³/min) |
117.5 |
|
Max. Exhaust Gas Temperature(degree) |
598 |
|
Cooling Type |
Water cooled with Radiator |
|
Fan cooling air flow(m³/min) |
535 |
|
Engine Coolant capacity(l) |
23 |
|
Max. temperature of coolant(degree) |
100 |
|
Max. permissible oil temp.(degree) |
120 |
|
Total oil capacity(l) |
43 |
|
Rating Fuel Consumption(l/h) |
138 |
|
Governing Type |
Electrics Governor |
|
|
Alternator |
Rating Voltage(V) |
400/230 |
Alternator Model |
MX-560-4 |
|
Rating Capacity(KW/KVA) |
560/700 |
|
Eff.% |
93.9% |
|
Power Factor |
0.8 lagged |
|
Exciting type |
Brushless self-exciter, DVR |
|
Voltage regulation |
±0.25% |
|
No. of Phase |
3 phase 4 wire |
|
Enclosure Class |
IP22 |
|
Class of Insulation |
H |
|
Control Panel |
Control Module UK DEEP SEA |
GCS 6410 AMF |
Battery |
Rating Capacity(AH) |
2X200AH 12V |
Dimension |
Generator set dimension(LXWXH) (mm) |
3600X1400X 1800 |
Weight |
Weight (kg) |
3900 |
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down b) Operation display:
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
