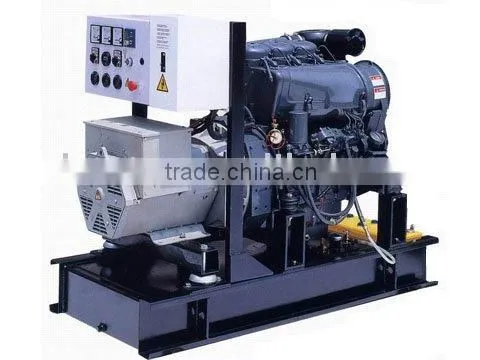

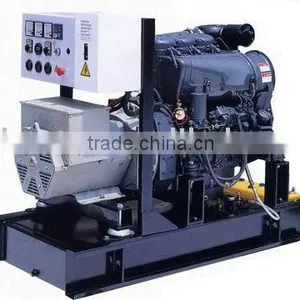

DEUTZ Engine Diesel Electric Generator

US$ 1,000 - 100,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

SML

Model Number:

GF2--DEUTZ series

Fujian Saint Meilan Motor Wiring Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name SML

Model Number GF2--DEUTZ series

Output Type AC Three Phase

Speed 1500/1800RPM

Frequency 50/60HZ

Rated Power 20KW To 120KW

Rated Voltage 400/230v

Rated Current A

Specifications

DEUTZ engine diesel electric generator
1. Duetz engine, brushless alternator
2. 4 stroke, 3 phase 4 wire, water cooled
3. 15

DEUTZ engine diesel electric generator

2. 4 stroke, 3 phase, water cooled

3. 15 months warranty

Duetz Series Diesel Generator Sets
Genset Model	Rated Power		Standby Power		Fuel cons.	Engine Model	Bore×Stroke (mm)	Displacement (L)	Dimensions	weight
Genset Model	Kw	KVA	Kw	Kva	≤ g/Kw.h	Engine Model	Bore×Stroke (mm)	Displacement (L)	(L×W×H)mm	Kg
SML-W20	20	25	22	27.5	258.1	495D	95 × 115	3.26	1780×750×1150	820
SML-W24	24	30	26.4	33	258.4	K4100D	100 × 115	3.61	1780×750×1150	900
SML-W30	30	37.5	33	41.3	251.6	K4100D	100 × 115	3.61	1950×800×1190	980
SML-W40	40	50	44	55	232	K4100ZD	100 × 115	4.33	1950×850×1350	1050
SML-W50	50	62.5	55	68.8	220	R4105AZD	105 × 130	4.33	1950×850×1350	1080
SML-W60	60	75	66	83	224	R6105ZD	105 × 125	6.49	2450×900×1400	1230
SML-W70	70	87.5	77	96.3	224	R6105ZD	105 × 125	6.49	2450×900×1400	1460
SML-W80	80	100	88	110	218	R6105AZLD	105 × 130	6.49	2500×900×1400	1590
SML-W90	90	112.5	99	124	218	R6105AZLD	105 × 130	6.49	2500×900×1400	1640
SML-W100	100	125	110	138	218	R6105IZLD	105 × 135	6.49	2500×900×1400	1710
SML-W120	120	150	132	165	218	R6113ZLD	113 × 125	6.49	2600×900×1450	1790
