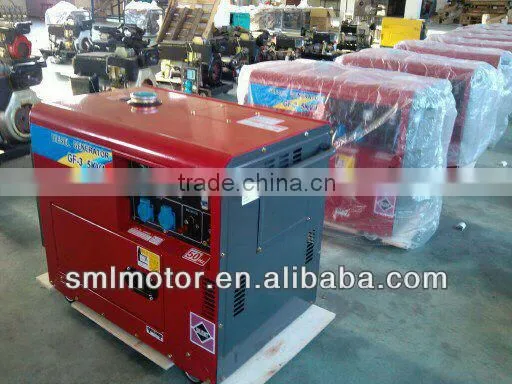

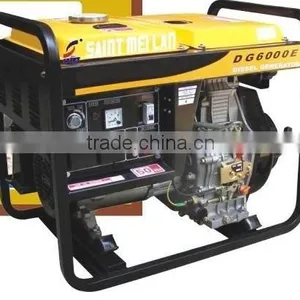

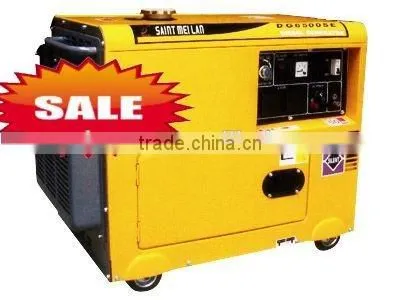

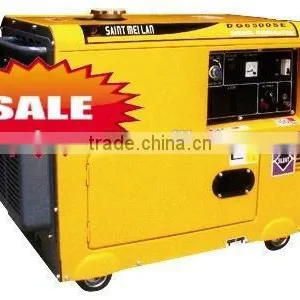

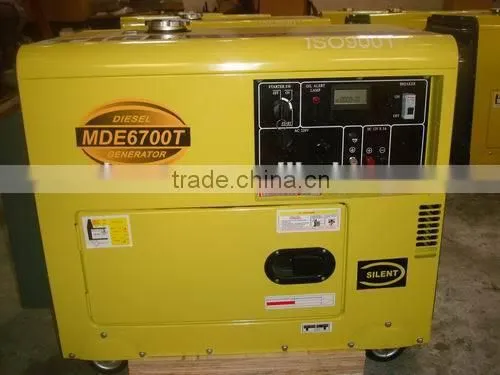

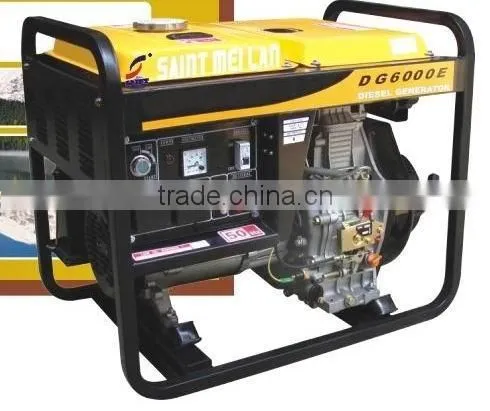

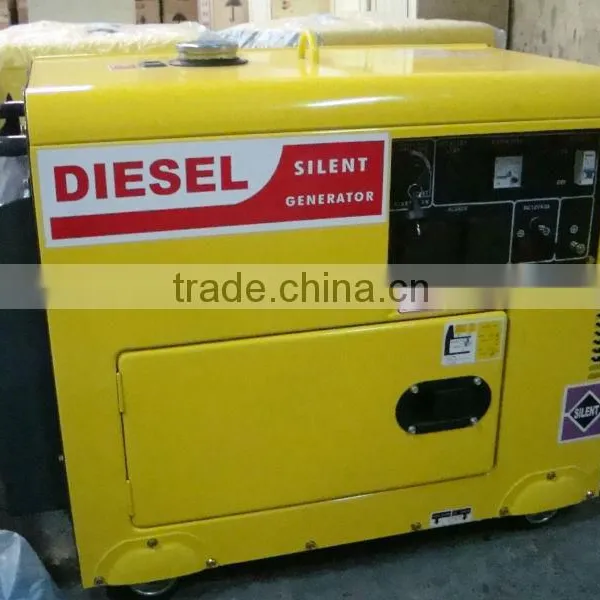

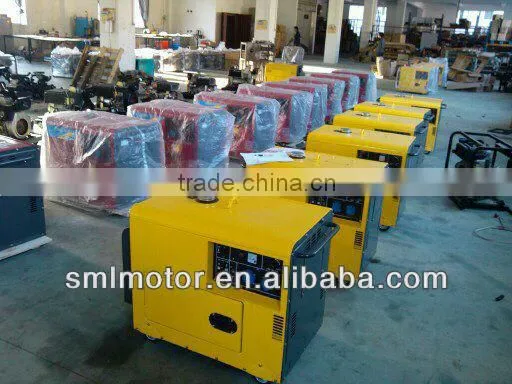

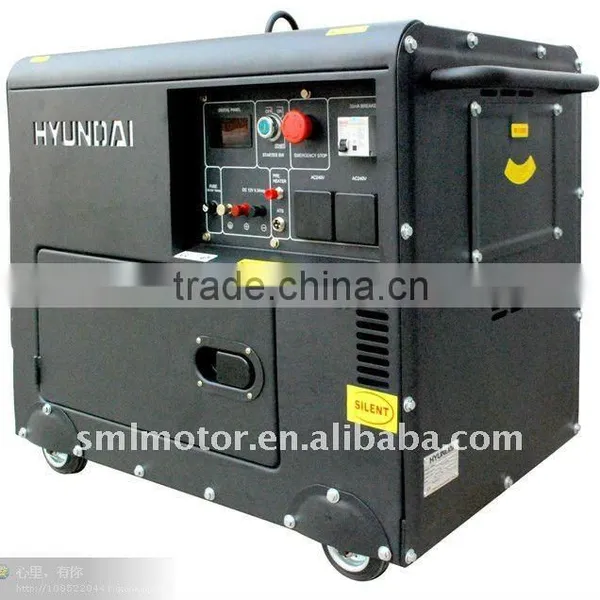

super silent 70db portable diesel generator 5kw
We Professional in produce:
diesel generator / gasoline generator / diesel engine /
welder
Alternators / pumps / high pressure washer
1) air-cooled ,Diesel type
2) Advanced generator and soundproof ,Silent /canop type
3) Single and three-phase engines are available
4) Electric start ,Low fuel comsuption
5) It is suitable for 50Hz and 60Hz. The dimensions is decided by the power
6) Speed: 3000rpm /3600rpm
7) ATS (automatic transfer switch)
8) digital meter
Accessories
1)Standard accessories:Standard 40 radiator mounted on skid,Common stell frame ,Circuit breaker ,damper ,exhaust silencer ,flexible pipe,battery and connecting wires ,standard tools kit ,operation manual and document
2)Optional accessories:Engine coolant and oil heater ,alternator space heater ,cooling for heat exchanger ,communication interface ,battery charger by main supply ,daily fuel tank ,ATS and paralleling system ,soundproof canopy and moving trailer .
Portable Diesel Generator Specification:
|
Air-cooled Diesel Generator Sets (Single Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Diesel Generator Package
Certificate:SONCAP,CE,COI,SGS,BV,EPA
Characteristics:
1. Powered by air-cooled 4-stroke diesel engine.
2. 12-volt DC auxiliary charging (car/boat battery).
3. Injection nozzle with electric control clique.
4. Low oil alert system shuts down the engine automatically.
5. Wheels for easy move.
6. Key operated ignition switch for the standard electric starter.
7. Standard equip with 24Ah dry battery.
8. Hydraulic-Magnetic circuit breaker.
Diesel Generator,Gasoline Pump,Water Pump,Protable Genset,Moving Trailer
Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date ,During the guarantee period ,Saint will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material,After expiration ,"Saint "provides cose spare pars maintenance of genset
