honda 5kw generator
SAINT MEILAN CHINA GOOD FACTORY
---- THE BEST CHOICE FOR YOU !!!

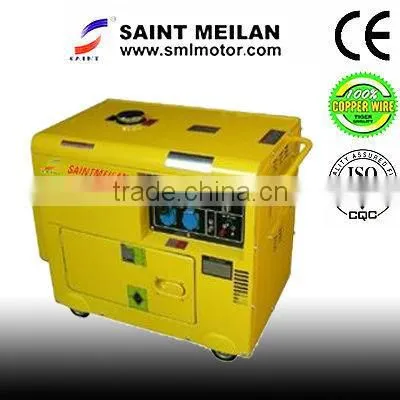

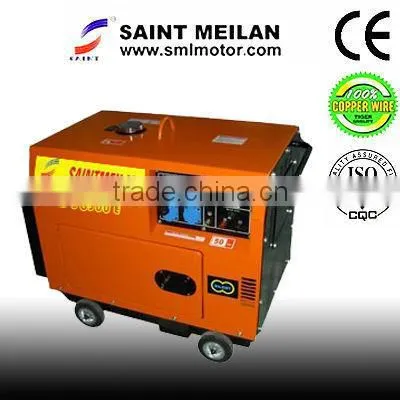

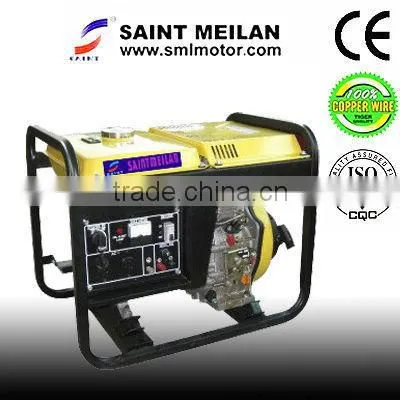

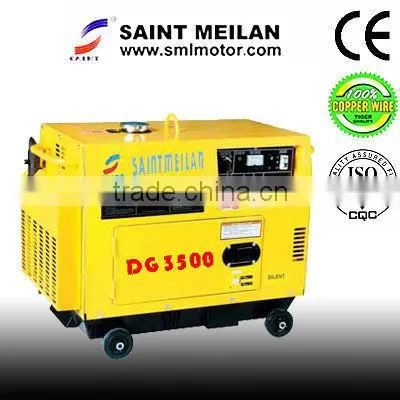

Honda diesel generator Features:
1. Power by 4-stroke air-cooled direct injection diesel engine
2. Rated output at 4.5kW, Max. Output at 5.0kW.
3. Large fuel tank ensures hours of continuous running.
4. Brushless alternator for easy maintenance.
5. 12-volt DC output as standard configuration for battery charging and low voltage appliance.
6. Standard configuration of voltmeter enables convenient use.
7. Hydrautic-Mafnetic Circuit Breakers for overload protection and convenience
8. Sound-absorbing panels keep lower noise.
9. Wheels for easy move.
10. Full frame protection which looks more luxurious for easy
11. digital meter , ATS (automatic transfer switch)
12. Low fuel comsuption
13. It is suitable for 50Hz and 60Hz. The dimensions is decided by the power
Diesel Generator Specification:
Air-cooled Diesel Generator Sets (Single Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Diesel Honda generator Warranty:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.
Generator Delivery:
25-30days upon received your down payment.
Looking forward to your early enquiry!!!
keywords: diesel generator, small generator, 5kw diesel generator, 5kw generator, generators, diesel generators, power generator, diesel generator set
Accessories
1)Standard accessories:Standard 40 radiator mounted on skid,Common stell frame ,Circuit breaker ,damper ,exhaust silencer ,flexible pipe,battery and connecting wires ,standard tools kit ,operation manual and document
2)Optional accessories:Engine coolant and oil heater ,alternator space heater ,cooling for heat exchanger ,communication interface ,battery charger by main supply ,daily fuel tank ,ATS and paralleling system ,soundproof canopy and moving trailer .
