Help CenterPasteurizer
Related Products

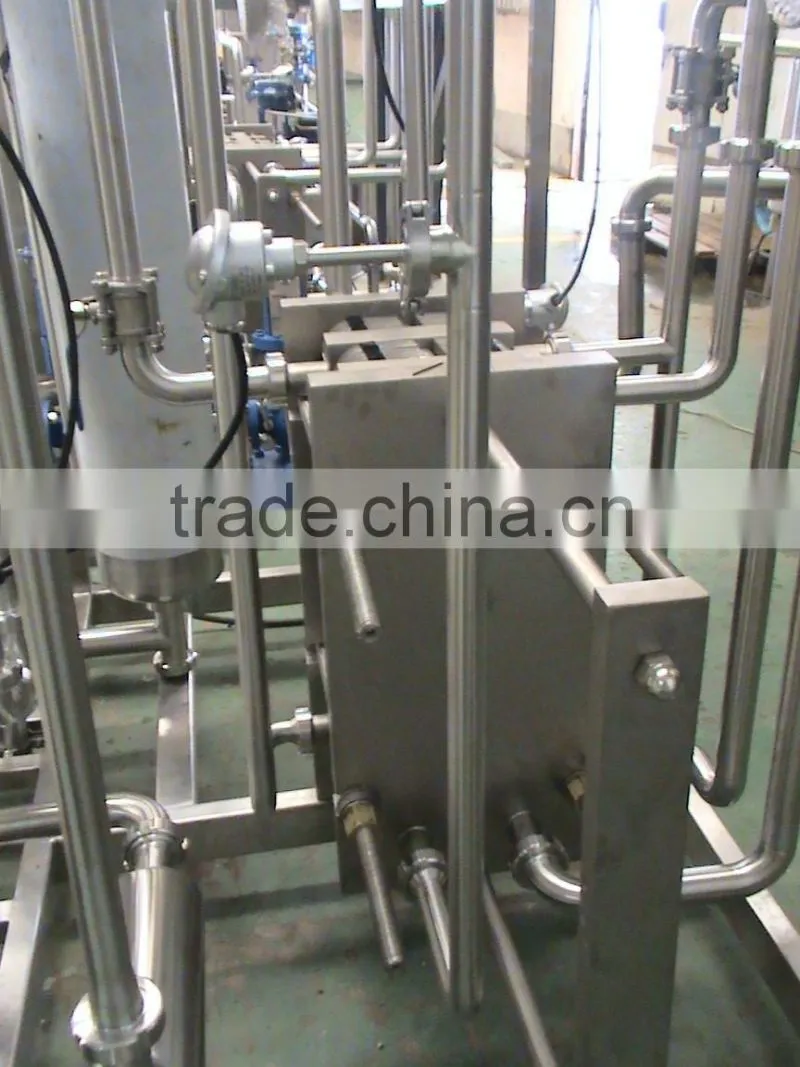

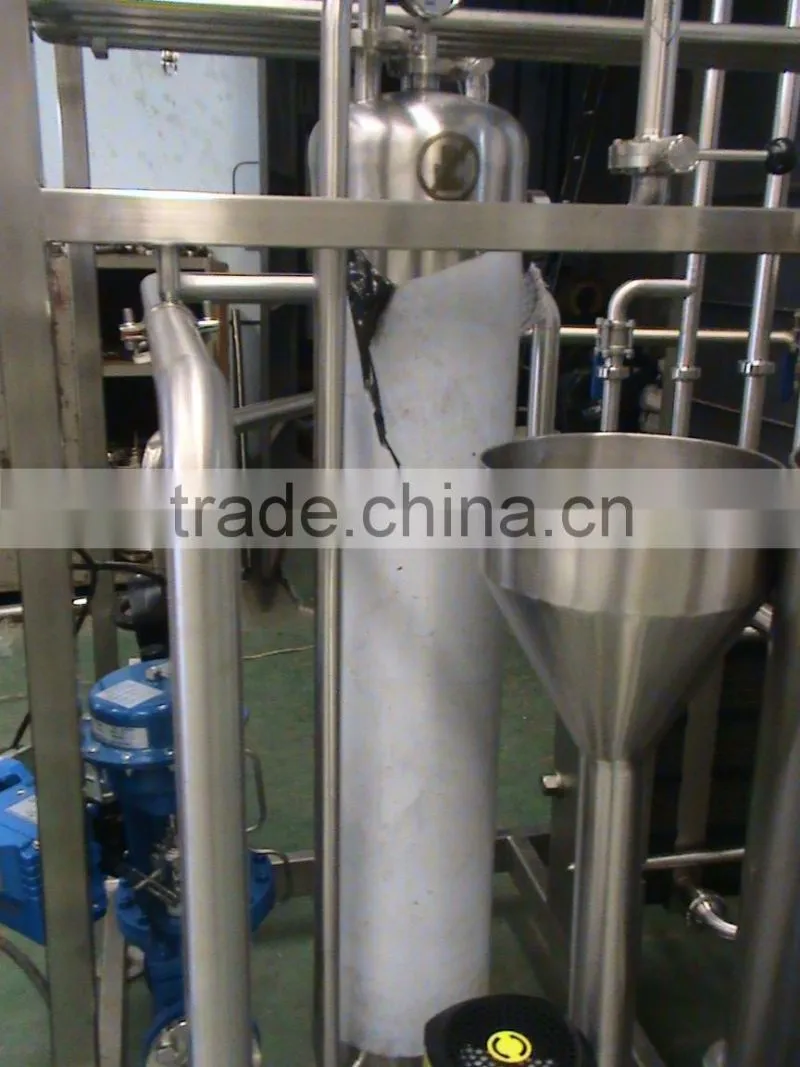

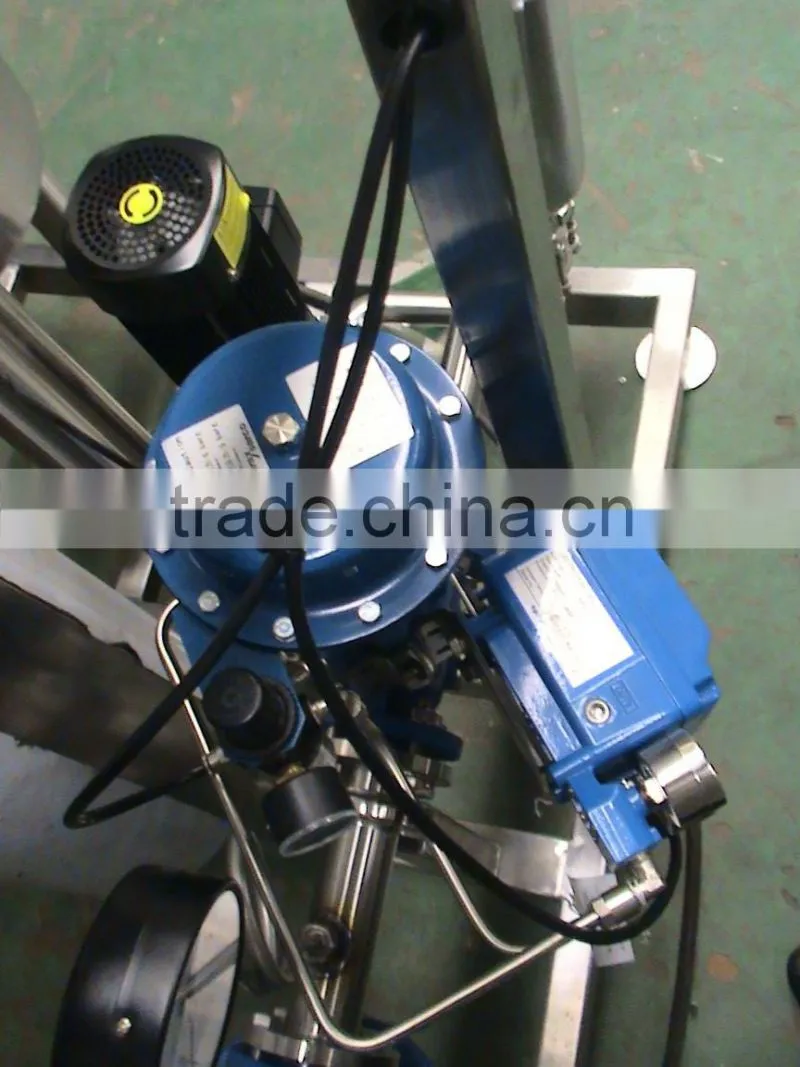

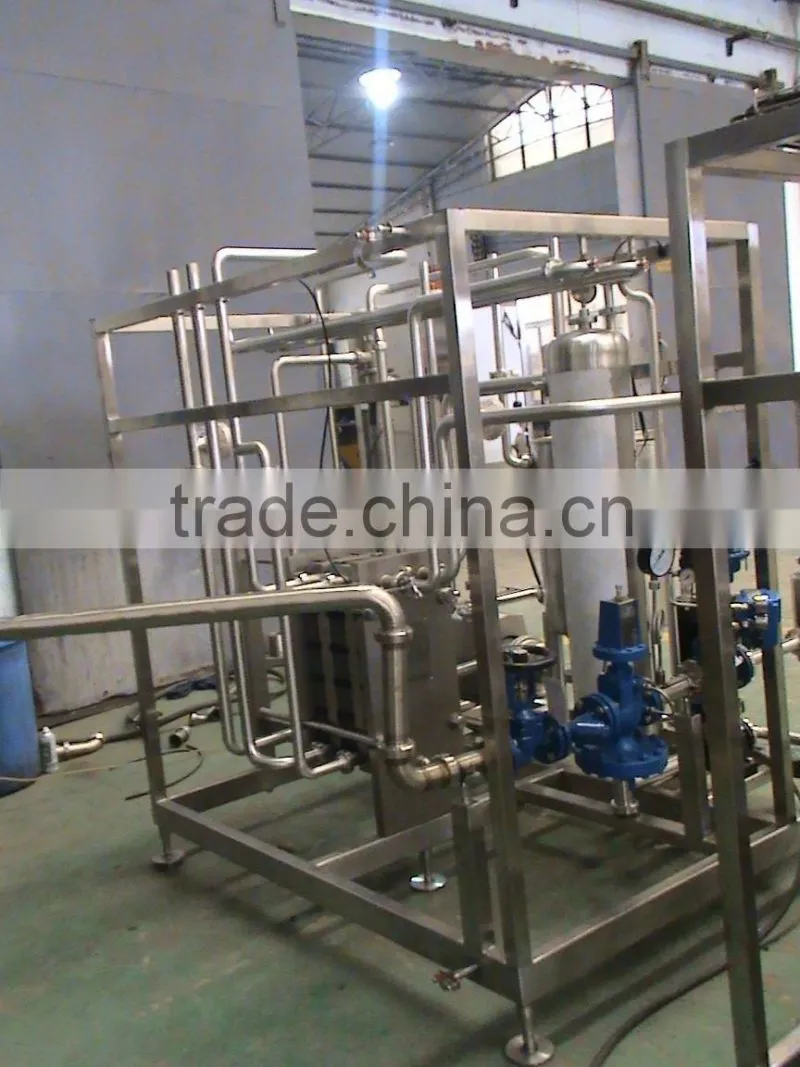

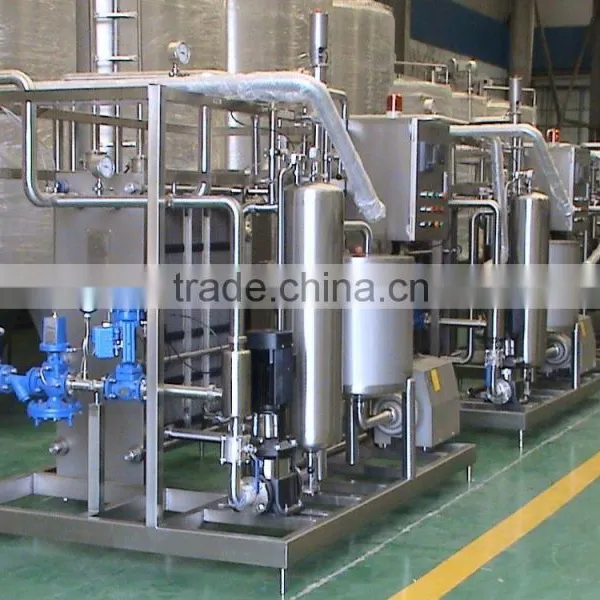

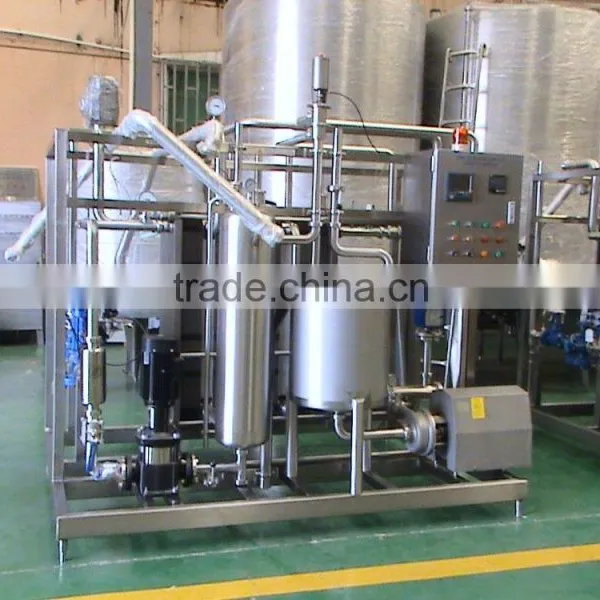

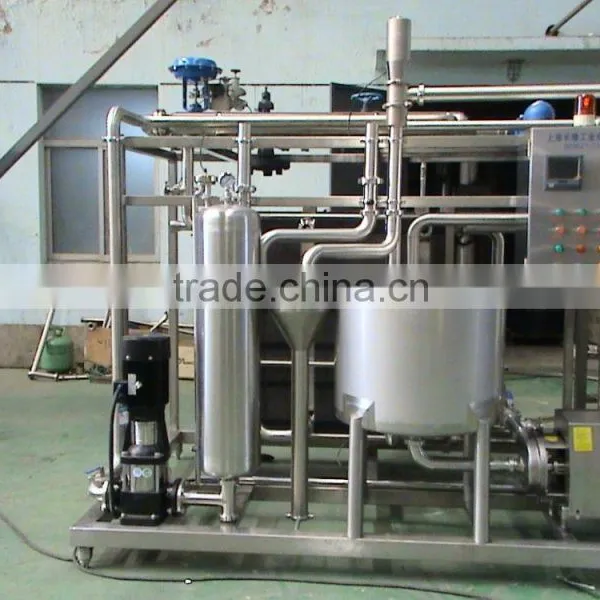

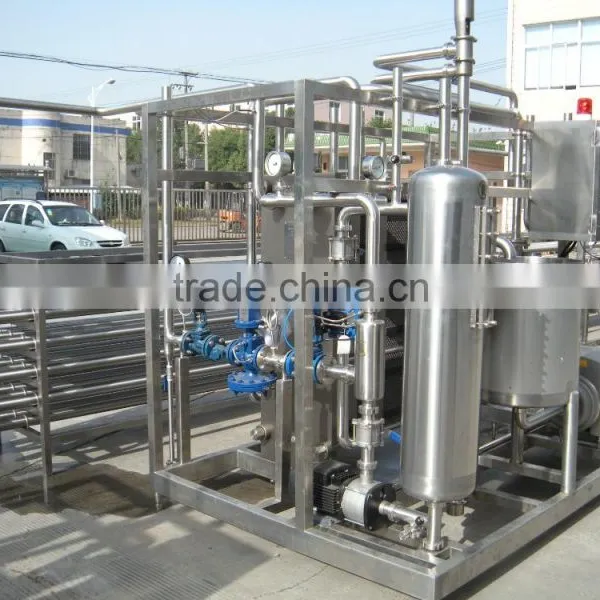

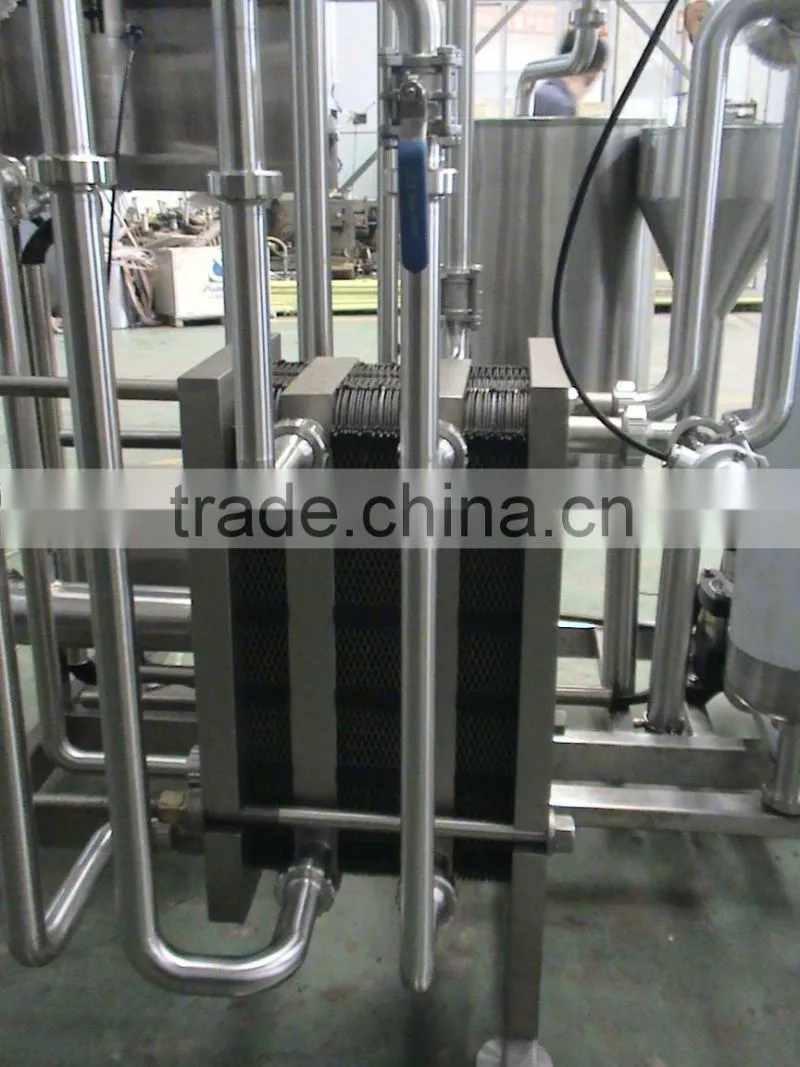

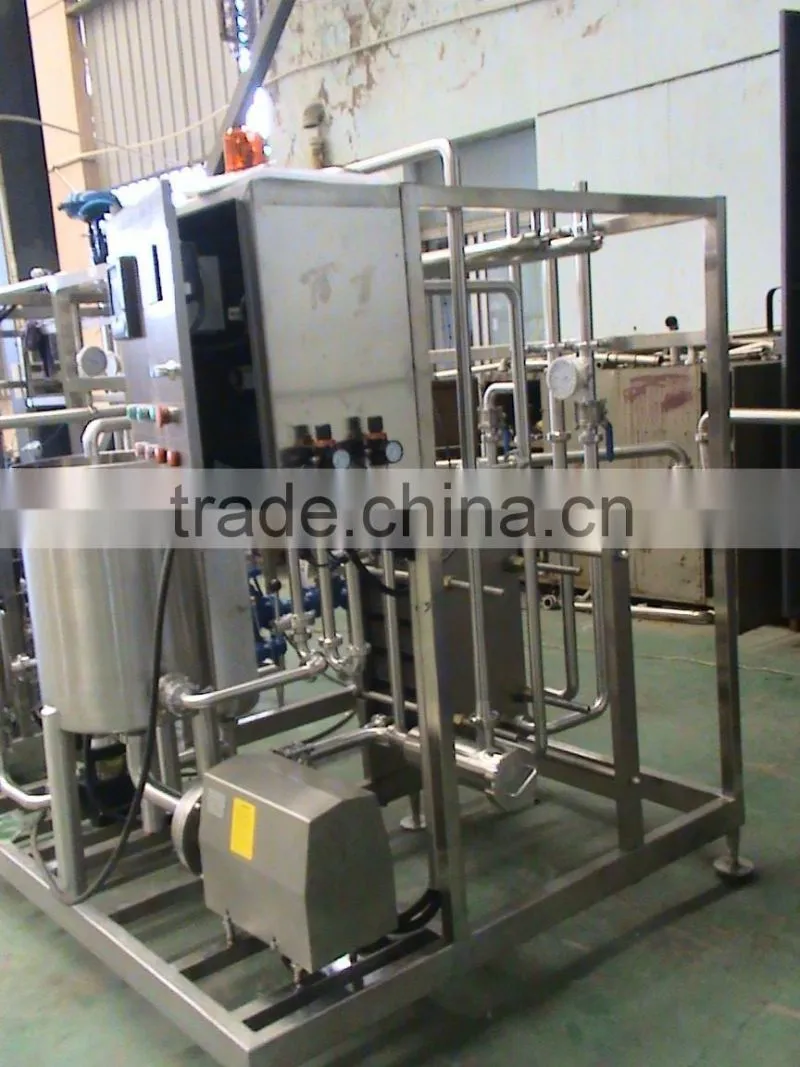

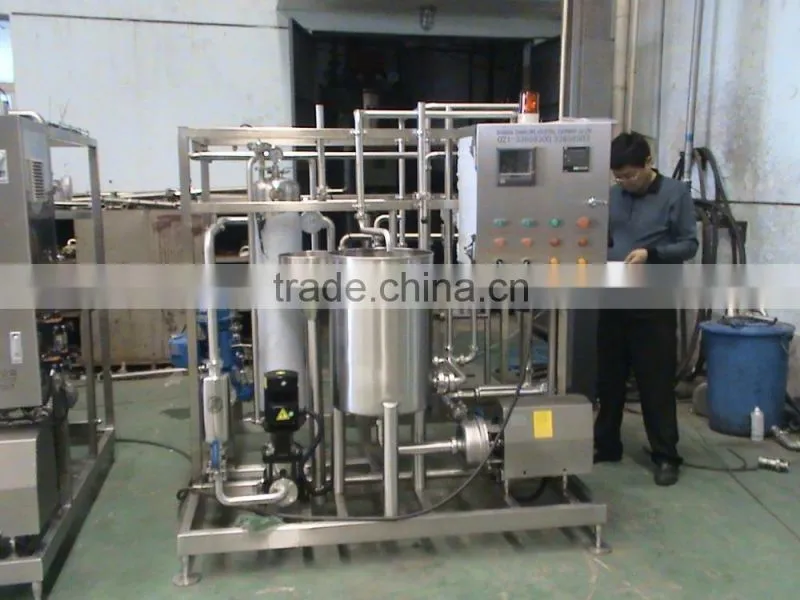

WHOLE SETPASTEURIZING EQUIPMENT
Product description--applicable to heating, sterilization, heat-preservation and cooling etc. technology requirements of fresh milk, fruit beverage and alcohol etc. heat sensitive liquids. The equipment has such features an high heat recovery, energy saving and low consumption, compact structure, simple operation and convenient maintenance etc.
Control methods--semi-automatic control, full-automatic control(PLC control, touch screen display)

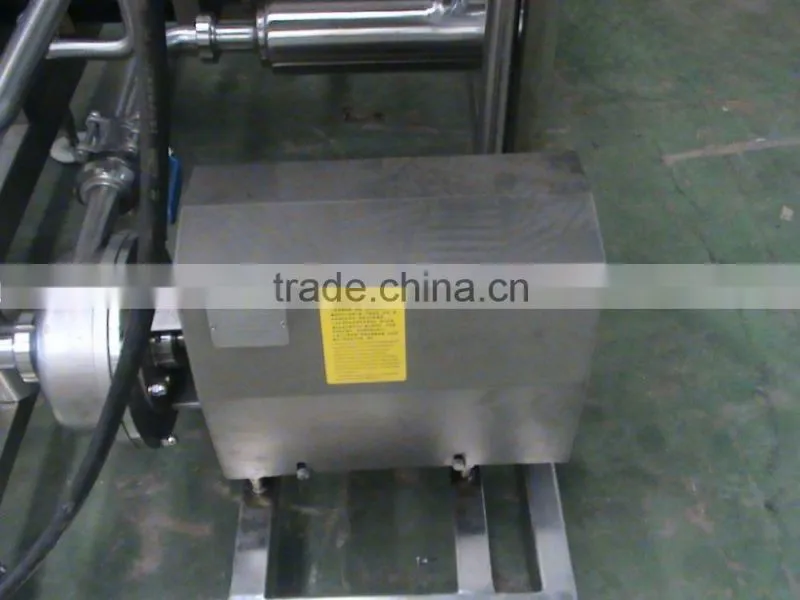

Main accessories--material pump, balancing tank, hot water system, temperature controller and recorder, electric control sysem etc.
Production capacity--0.5--50t/h
Sterilizing temperature--85-95 degree
Heat preservation period--15--30s
Technical Parameter
Name |
BR1-PUT-8B |
BR16-PUT-13B |
BR26-PUT-28B |
BR26-PUT-52B |
|
Production capacity |
t/h |
1 |
2 |
5 |
10 |
Heat exchanging area |
m2 |
8 |
13 |
28 |
52 |
Temperature of material inlet |
℃ |
5 |
5 |
5 |
5 |
Temperature of material outlet |
℃ |
5 |
5 |
5 |
5 |
Sterilizing temperature |
℃ |
85-95 |
85-95 |
85-95 |
85-95 |
Heat preservation period |
s |
25 |
25 |
25 |
25 |
Ice water temperature |
℃ |
1 |
1 |
1 |
1 |
Ice water consumption |
multiple |
3 |
3 |
3 |
3 |
Cooling water consumption |
multiple |
2 |
2 |
2 |
2 |
Connector size |
mm |
32 |
38 |
51 |
51 |
Energy consumption |
kw |
3 |
3 |
6 |
10 |
Outline dimensions |
mm |
1500*1500*1800 |
1800*2000*1800 |
2200*2000*2000 |
2600*2000*2200 |
shanghaichanglong established in 1996 , specialized in designing and researching various series of .
A. plate heat exchanger and tubular heat exchanger
B. plate type sterilizer :
ice cream whole set equipment fresh milk and yoghurt sterilizer,
juice pasteurizer and UHT sterilizer grape wine sterilizer ,
whipped cream sterilizer , tea beverage UHT sterilizer .
beer pasteurizer , egg liquid pasteurizer ,
yellow wine sterilizer , soysauce/ vinegar sterilizer
C. tubular type sterilizer :
Fresh juice sterilizer , juice UHT sterilizer . ,
aseptic UHT sterilizer , soymilk UHT sterilizer ,
pasteurizer and UHT sterilizer tea beverage sterilizer .
Chili / Tomato Sauce sterilizer honey sterilizer Fruit jam sterilizer
D. degasser unit :
Vacuum degasser , automatic degasser .
E. CIP cleaning system
Split CIP cleaning system . Integral CIP cleaning system
F. stainless steel tanks and vessels etc :
mixing and blending tank , cooling and heating tank ,
(yoghurt ) fermentation tank , (ice cream )ageing tank ,
1-layer tank , 2-layer tank , 3-layer tank
high-shear emulsifying tank
Providing a chain of services including design, manufacturing, installation, commissioning and training etc. for the equipment and projects.
if you have any problem ,please feel free to let me know .
welcome to visit our enterprise and look forward to cooperating with you forever and friendly .--
