Beer Pasteurizer
- 15 Set / Sets per Month
- SHANGHAI PORT
- T/T
- Professional pipe hydraulic pressure test equipment machine with automatic print test reports
- manual and automatic type stainless steel centrifugal milk cream separator
- manual and automatic type stainless steel milk cream separator machine
- semi-automatic centrifugal Milk/dairy cream separator
- automatic centrifugal Milk/dairy fat separator
- automatic Milk/dairy Cream separator
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | SHANGHAI CONLON |
Model Number: | BR16-PUT-2000L | Usage: | Other, sterilizing equipment | Type: | Ultra High Temperature |
Voltage: | 380V / 410V / 220V 50Hz/ 60Hz | Power(W): | 12KW | Weight: | 1500kg |
Dimension(L*W*H): | 2000*1800*2200 | Certification: | ISO CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

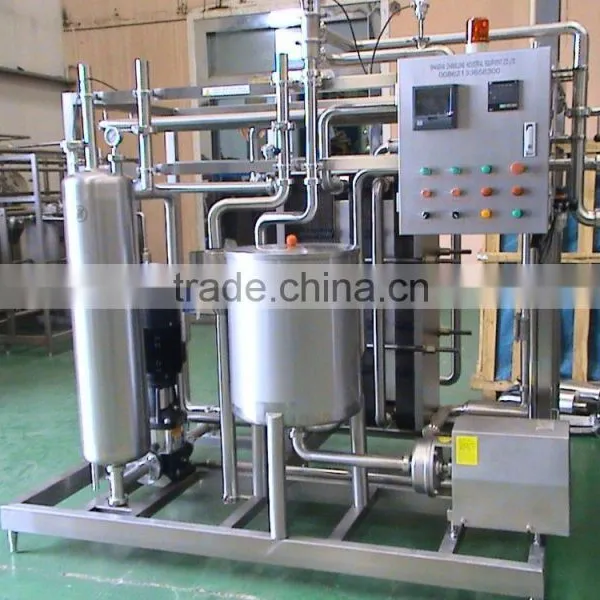

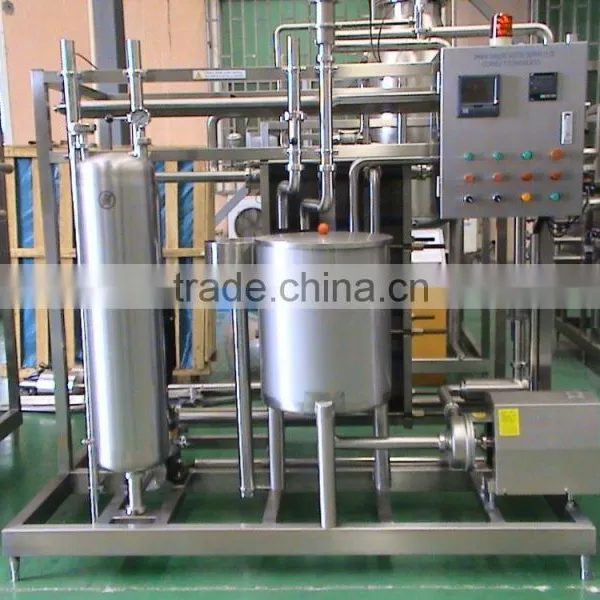

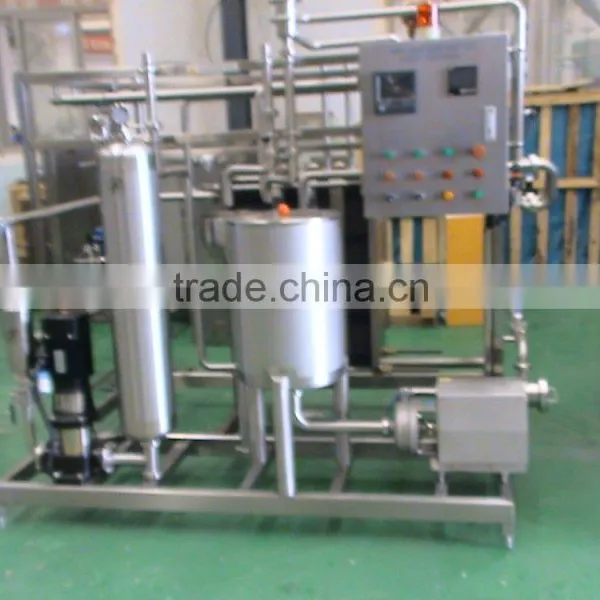

WHOLE SETPASTEURIZING EQUIPMENT
Product description--applicable to heating, sterilization, heat-preservation and cooling etc. technology requirements of fresh milk, fruit beverage and alcohol etc. heat sensitive liquids. The equipment has such features an high heat recovery, energy saving and low consumption, compact structure, simple operation and convenient maintenance etc.

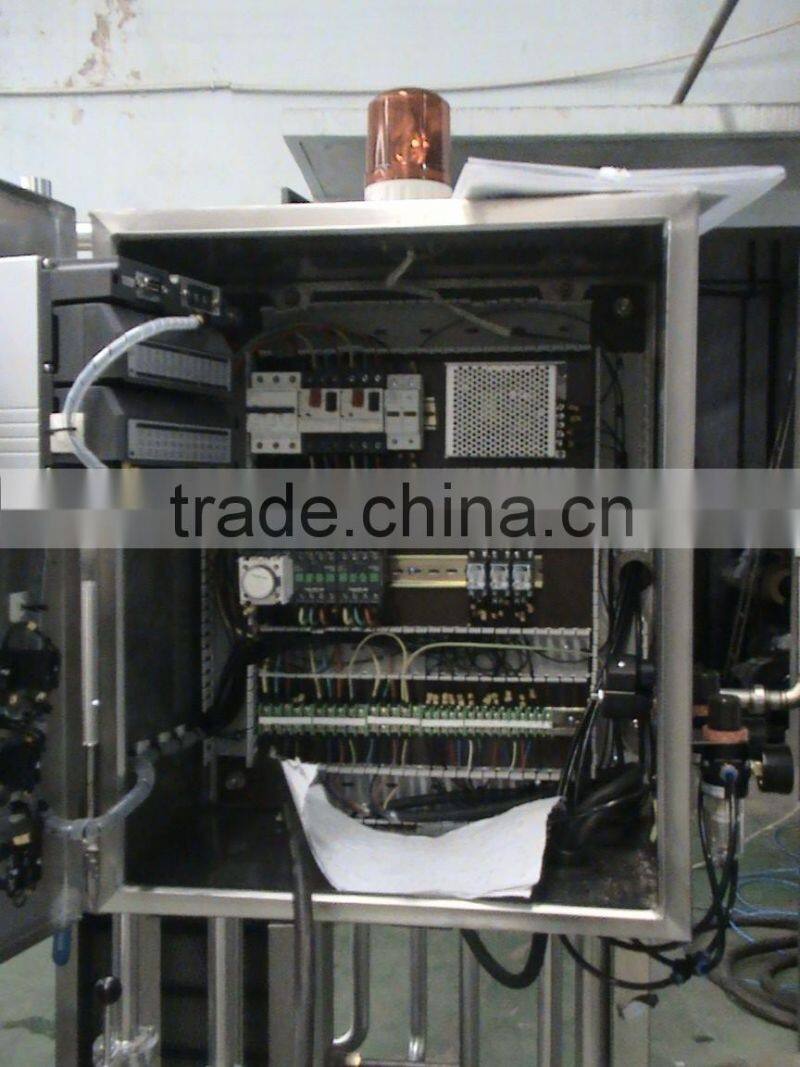

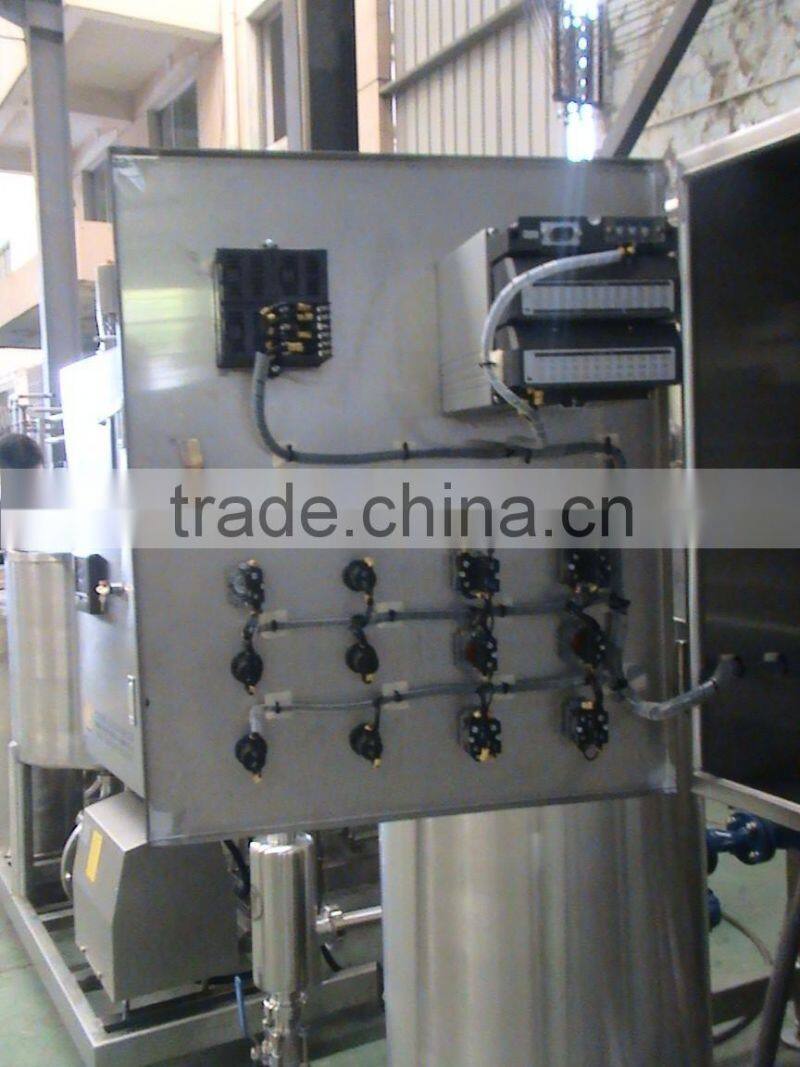

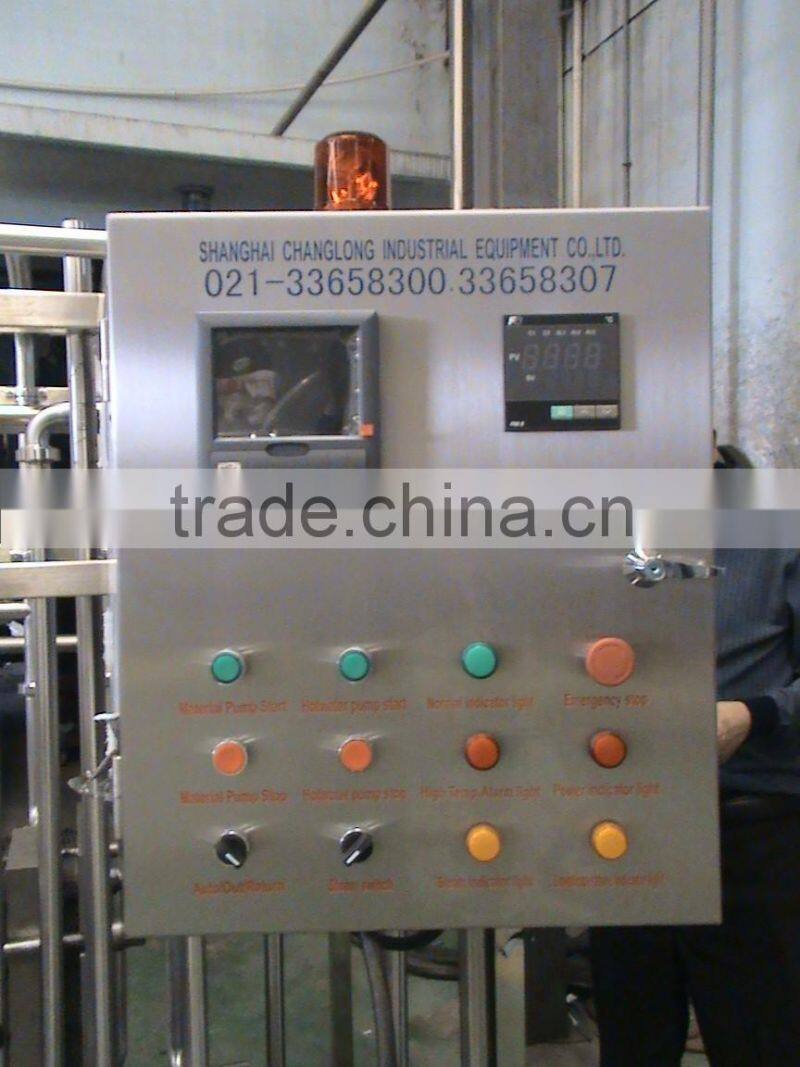

Control methods--semi-automatic control, full-automatic control(PLC control, touch screen display)

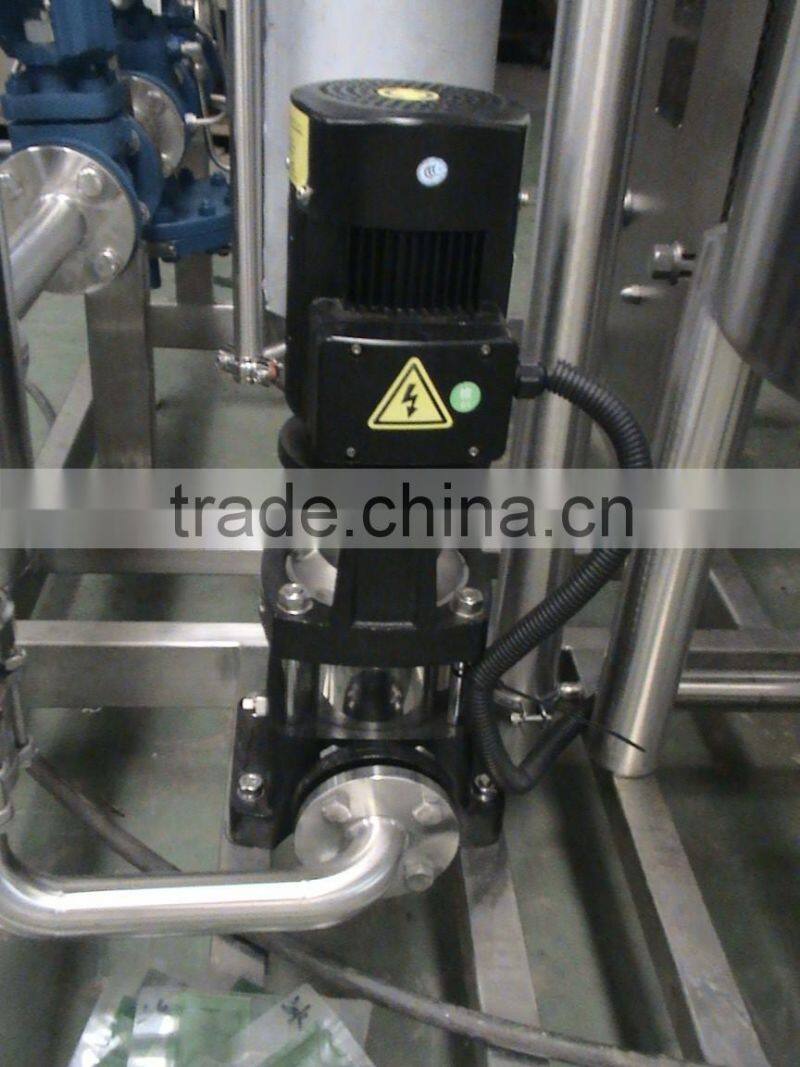

Main accessories--material pump, balancing tank, hot water system, temperature controller and recorder, electric control sysem etc.
Production capacity--0.5--50t/h
Sterilizing temperature--85-95 degree
Heat preservation period--15--30s
Technical Parameter
Name | BR1-PUT-8B | BR16-PUT-13B | BR26-PUT-28B | BR26-PUT-52B | |
Production capacity | t/h | 1 | 2 | 5 | 10 |
Heat exchanging area | m2 | 8 | 13 | 28 | 52 |
Temperature of material inlet | ℃ | 5 | 5 | 5 | 5 |
Temperature of material outlet | ℃ | 5 | 5 | 5 | 5 |
Sterilizing temperature | ℃ | 85-95 | 85-95 | 85-95 | 85-95 |
Heat preservation period | s | 25 | 25 | 25 | 25 |
Ice water temperature | ℃ | 1 | 1 | 1 | 1 |
Ice water consumption | multiple | 3 | 3 | 3 | 3 |
Cooling water consumption | multiple | 2 | 2 | 2 | 2 |
Connector size | mm | 32 | 38 | 51 | 51 |
Energy consumption | kw | 3 | 3 | 6 | 10 |
Outline dimensions | mm | 1500*1500*1800 | 1800*2000*1800 | 2200*2000*2000 | 2600*2000*2200 |
Established in 1996,Shanghai Changlong Lndustrial Equipment Co.,Ltd. is an enterprise specialized in designing and researching various series of plate type(tubular) heatexchangers,plate type (tubular) whole set sterilizer units, ice cream shole set equipment, concentrators,degassing units,tanks and vessels etc,.providing achain of services including design,manufacturing,installation,commissioning and training etc.for the equipment and projects.Thanks to its richexperience in the production of heat exchangers and sterilizers,the company has become a leader in the industry of heatexchangers and sterilizers.The products are widely applied indairy, fruit beverage,brewage,chemical industry,electricpower and agriculture etc.Industries.
Shanghai Changlong Industrial Equipment Co.,Ltd.has many designers specialized in the application of heat exchangers and sterilizers,invites experienced experts from dairy industry as technical consultants and employs professiona engineers to design the series units, so as to guarantee safe and reliabgle operation of the equipement.
The feeding pump automatic control device of the sterilizer,the nozzle device of the degasser and the heat exchange stheet designed by the company have been granted nationalpatents.The registered trademarks approved by State Administration for Industry & Commerce have been applied in 45 industries,and under the approval of China Council for the Promotion of International Trade,they have been success fully registered in Russia and Japan etc. Countries.
Changlong products have passed the inspection by National Quality Supervision and Inspection Center,and the product quality is guaranteed due to strict implementation of ISO9001:2000 international quality management system.Some products have been awarded Technical Results Transformation Prize fo Shanghai and New Product PLan Prize of Shanghai.Now Changlong Enterprise has become a high-tech enterprise.
Changlong products not only enjoy high reputation in the country,but also have been exported to Germany,Japan,Australia,Russia,Southeast Asia and Mid East untries and areas.It has also established Australia Changlong Company in Australia,Which has made it more convenient and prompt to push domestic products to the world.
