Home > Products > Silent Diesel Generator > 30kw Soundproof Genset

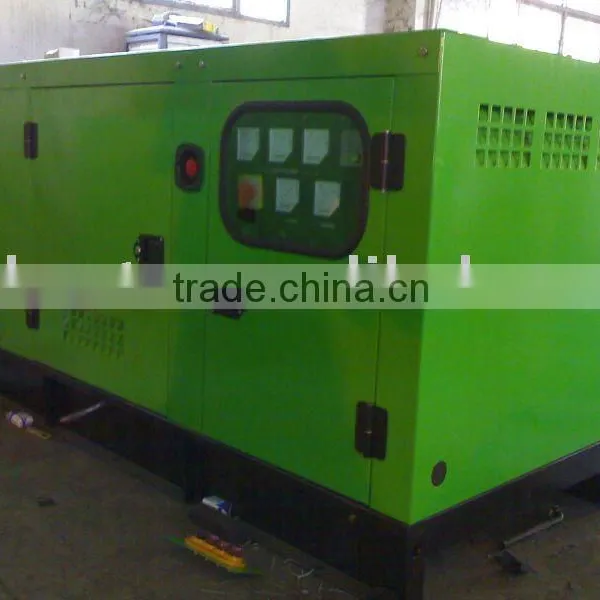

30kw Soundproof Genset
- Fuzhou Port
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | China | |
| Model Number | SMC, Saint Meilan | Output Type | AC Three Phase | |
| Speed | 1500RPM/1800RPM | Frequency | 50/60HZ | |
| Rated Power | 15KW-1200KW | Rated Voltage | 110V/240V, 220V/380V, 230V/400V, 240V/415V | |
| Rated Current | 20-2000A |
Product Description
Specifications
genset1. Lowest price, super quality
2 .Noise 70 db (7 meters away)
3 .CE, ISO
4 .12 months warranty
soundproof genset
Genset Model | SMQ-8 | SMQ-10 | SMQ-12 | SMQ-15 | SMQ-20 | SMQ-24 | SMQ-30 | |
Rated Power (kw) | 8 | 10 | 12 | 15 | 20 | 24 | 30 | |
GENERATOR | Type | Brush or Brushless Alternator | ||||||
Frequency H z | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Cont.A C output (Kw) | 7.5 | 9 | 11 | 13 | 17 | 23 | 27 | |
Power Factor | 1 for one phase and 0.8 for three phase | |||||||
Exictation System | Self-excitation & Brushless or Brush | |||||||
ENGINE | Model | QC380 | QC385 | QC480 | QC485 | QC490 | QC498 | QC4102 |
Number of cylinders | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
Cont.output (Kw) | 10 | 11 | 14 | 17 | 22 | 27 | 33 | |
Starting system | 12V or 24V Electric Starting | |||||||
Cooling method | Closed/Open circle water-cooied | |||||||
Firing order | 1-3-2 | 1-3-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | |
Compression Ratio | 22.5 | 22 | 18 | 18 | 18 | 19 | 19 | |
Specific fuel consumption (g/kW .h) | ≤265 | ≤262 | ≤249 | ≤245 | ≤243 | ≤258 | ≤258 | |
Steady speed regulation ≤5% | ||||||||
Instantaneous speed regulation ≤10% | ||||||||
Time required to steady Speed(s) ≤5 | ||||||||
Fluctation rate of speed ±0.5% | ||||||||
DIMENSIONS | Fuel tank capacity (L) 100 | |||||||
Overall dimensions (L×W×H)(mm) | 1650*900*1000 | 1650*900*1000 | 1800*900*1000 | 1800*900*1000 | 1800*900*1000 | 1800*900*1000 | 1800*900*1000 | |
| Dry weight (kg) | 640 | 670 | 680 | 730 | 810 | 1130 | 1180 |
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80 dB / 7m<70dB
Accessories:
1) Standard accessories: Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control system with RS232/485, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines.
2. Design the appearance form according to customers request.
3. Polyester varnish for appearance protecting for shining and raining.
4. Four hours testing before out factory.
