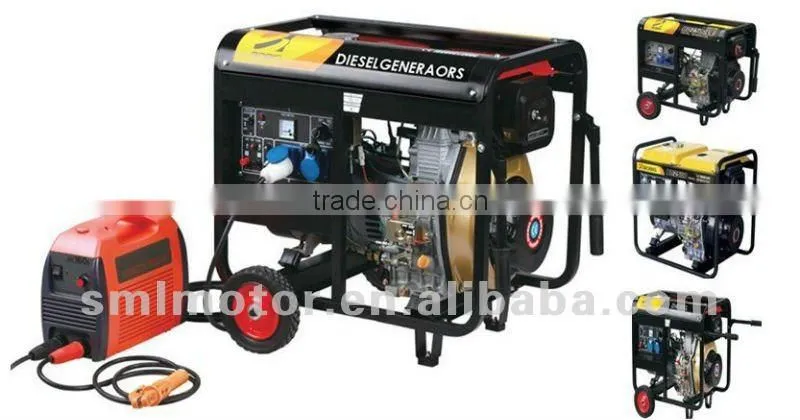

DG6500SE Portable Diesel Welding Machine Generation

Specifications

welding machine

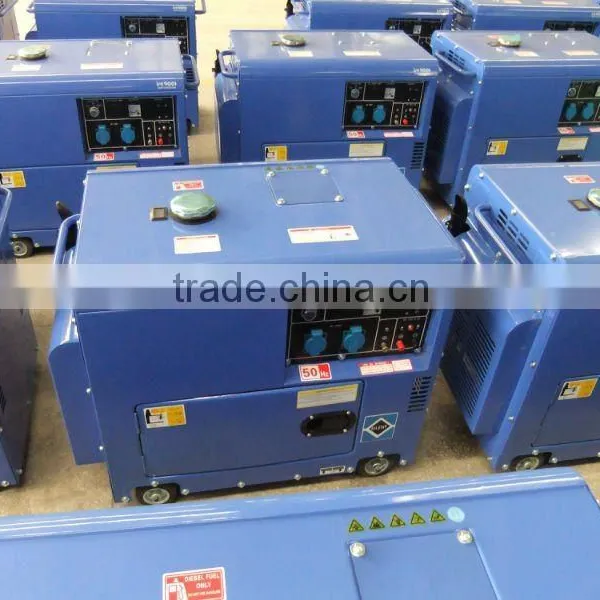

silent canopy,low noise,air cooled,China welding machine
6 months warranty
4-stroke,power:3kw to 10Kw
CE/ISO

DG6500SE portable diesel welding machine generation



SAINT MEILAN WELDING MACHINE MANUFACTURER

                      - THE BEST CHOICE FOR YOU !!!





Features:

1. Comparing other generators with same output, it is of compact structure (1100*660*740mm), light weight (248kg)and reliable performance.



2. Adopting the technique of new patented design structure

Our company has adopted the technique of new-patented design structure to separate fully cold & heat wind passages in inner housing. It makes the generator output be no power drop for long-period operation.

The wind passage with special labyrinth design makes the generator be of lower noise.



3. Application of intelligent control panel

Our company has adopted new-type intelligent control panel, which facilitate the operation. The operator can know the real working condition of the generator from panel reading. There are more than ten protections of the generator in the panel, such as protections of frequency, voltage, current, low oil pressure, low fuel level, and electric fan adjusting the temperature automatically when inner-housing temperature over 60, and automatic unload before engine stopped each time etc. The diesel/water separator can ensure the fuel quality.



4. Application of automatic shifting switch (ATS)

Our company can fit ATS based on customer requirement, which can make the generator be automatic operation without the operator on the spot. When city power net breaks down, ATS can deliver the signal in shortest time to the generator for starting. When city power net is recovered, ATS can shift the power from the generator to city power net and the generator will be automatically stopped later.



5. Application of new-generation intelligent AVR

Our company has adopted new-generation intelligent AVR (automatic voltage-constant) to make the output voltage be steady.



Specification:

Air-cooled Diesel Generator Sets (Single Phase)
Model	SML3GF-LN		SML5GF-LN		SML6GF-LN
Rated frequency(Hz)	50	60	50	60	50	60
Rated voltage(v)	110,120,220,230,240,220/110,240/120
rated output power(kw)	2.8	3.3	4.2	5	5	5.5
Max output power(kw)	3	3.6	5	5.5	5.5	6
Dc output	12V-8.3A
Power factor cos1	1
Phase number	Single-phase
Fuel tank capacity (l)	16
Continuour running time (hr)(at rated power)	12.5	11.5	8.5	7.5	8.5	7.5
Noise level{db(A)/7m}(zero load-full load)	70-74
Overall dimension{mm}(LXWXH)	825*520*740		910*520*740		935*520*715
Packing dimension {mm}(lXWXH)	855*550*780		950*550*780		960*550*770
Net weight kg	132		156		171
Gross weight  kg	150		170		185
starter system	electric starter
Engine model	178FGE		186FGE		186FAGE
Engine type	Single cylinder,4-stroke,air-cooled,vertical,diesel engine
Bore*stroke(mm)	78*62		86*70		86*72
Displancement (cc)	296		406		418
Rated rotation speed (rpm)	3000	3600	3000	3600	3000	3600





• Using direct injection air cooled engine, long life, low fuel consumption.
• Special and various control panels are available for different market.
• AVR automatic to maintain stability and to ensure a smooth power on the voltage fluctuation sensitive equipment  is especially important.
• Engine oil warning system, fuel display tables, etc.
• Home, leisure, agriculture, commerce and other standby power.
