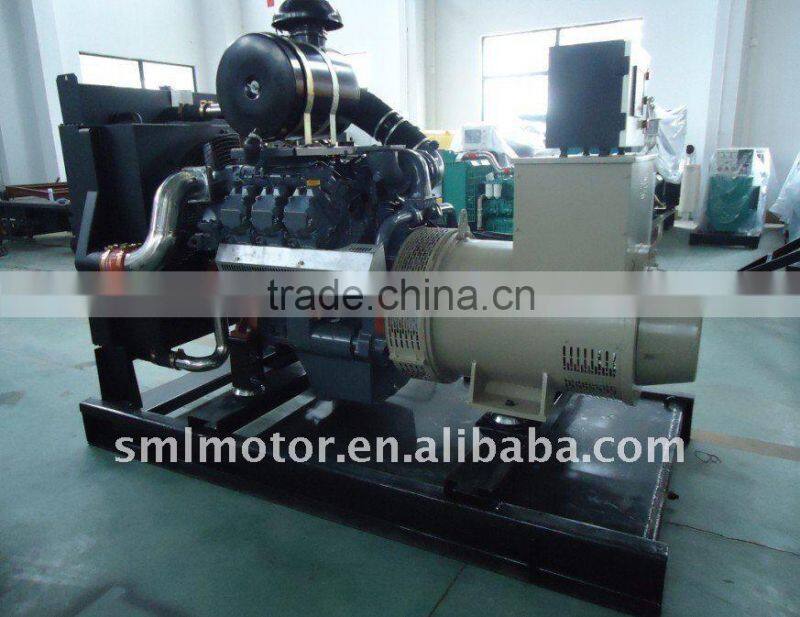

200kva - 300kva TBD234 Diesel Generator Powered by Deutz

Name: 200kva - 300kva TBD234 Diesel Generator Powered by Deutz
Brand: Saint
SKU: 129243407
Availability: InStock

Fujian Saint Meilan Motor Wiring Co., Ltd.

US$ 5,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Saint

Model Number:

SML, Saint Meilan ,Zonestar

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Saint

Model Number SML, Saint Meilan ,Zonestar

Output Type AC Three Phase

Speed 1500RPM/1800RPM

Frequency 50/60Hz

Rated Power 10kva--1250kva

Rated Voltage 110V/240V, 220V/380V, 230V/400V, 240V/415V

Rated Current 20-2000A

Specifications

200kva - 300kva TBD234 Diesel generator powered by Deutz
1 Durability
2 Low fuel consumption
3 Parts available
4 Oil protec

200kva - 300kva TBD234 Diesel generator powered by Deutz

Cylinder	6 and 8,In-V
Bore (mm)	128
Stroke (mm)	140
Displacement	14.4L
Compression Ratio	15:01
Minimum Speed At Full Load (r/min)	1000
Idel Speed (r/min)	650
Turning	contrarotate(face to flywheel)
Ignition Sequence	A1-B2-A3-B1,A4-B3-A2-B4
Continuous Power/Speed (kW/r/min)	249/1500,296/1800,323/2100
Intermittent Power/Speed (kW/r/min)	274/1500,325/1800,356/2100,363/2300
the fuel consumption rate / mean effective pressure at the MCFN power	196/1.38@1500rpm,199/1.37@1800rpm,
	201/1.28@2100rpm
